POWERBASS-18 N / 8 Ohm
"FOLLOW ME"
The fastest rhythm for the music
During music performances the usage of bass speaker systems is necessary to compensate an inadequate reproduction of low frequencies by full range public address systems. However an optimum matching of both systems is very important and essential. Here you find the adequate bass speaker systems, which fit to our satellites: ITEC bass speak systems are superfast showing a linear frequency response and highest efficiency. Due to our high-end power transducer 100 V applications with a lower cut-off frequency of 40Hz are possible (option).
Fields of applications of the ITEC Power Bass Systems
Subwoofer used within the ITEC Power Bass Systems are equipped with the latest generation of Neodym drivers. The optimum design of the bass reflex enclosure (light weighted, compact and equipped with a highly wear resistant surface) offers a universal usage and the authentic reproduction of music during live performances or playback applications. Due to the high efficiency of the drivers, applications together with 100V toroidal transformers without frequency distortions are possible. Optional: The integration of a 6dB cross-over allows the direct connection of the subwoofer to an amplifier without the need of any additional signal processing.
Specifications - PowerBass-18 N / 8 Ohm
 |
MODEL | Powerbass 18 N/ 8 Ohm |
| Nominal load: | 1000 W/RMS | |
| Rated SPL dB/1 W/1 m (half space): | 103 | |
| SPL max: | 133 dB | |
| Usable frequency response: | 36 Hz-150Hz | |
| Enclosure: | Enclosure made of plywood, Shock resistant speaker cover | |
| Driver: | 1 x TT 18 Neodym | |

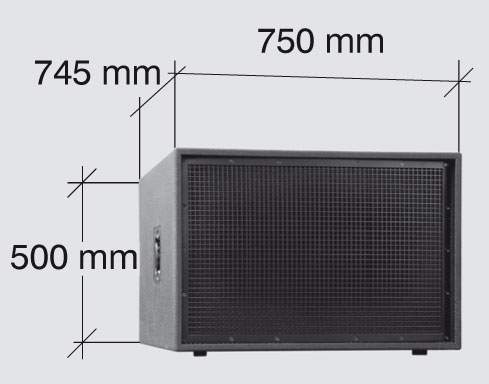

| Dimensions (W x H x D): | 750 x 500 x 745 mm | |
| Weight: | 45 kg | |
| Coloring: | moisture resistant PU coating black | |

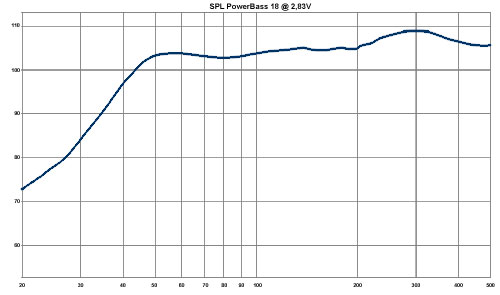

| TEST CHART | ||
 |
||
All information without guarantee. Subject to technical changes.
