ITEC Pocket UHF Transmitter

ITEC Wireless Microphones - Professional and Absolutely Layman-Proof!

Frequency 470 - 694 MHz

The ITEC wireless microphone systems are simply outstanding in terms of sound, dynamics, resistance to disturbance and operating range. And that's not all. Here are some more qualities you should consider when acquiring a wireless
microphone system:

  • Layman-proof operation: A single power switch at the hand held transmitter with battery status LEDs
  • Extremely long operation - up to 20 hours on a single set of batteries
  • Optional charging stations for hand held and pocket transmitters to provide non-stop operation in schools and universities
  • Receiver modules available in 19 inch and pocket size - for combined operation of mobile systems
  • Receiving range 250m and more if using additional antennas

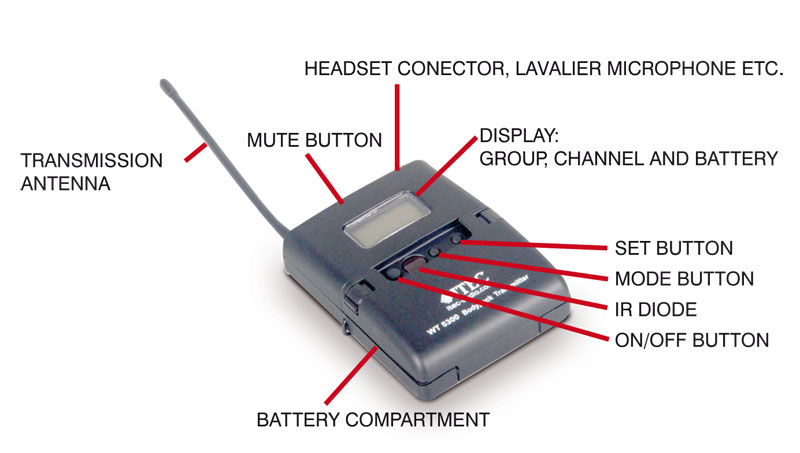

ITEC WT 5300

Battery operation

WT 5300

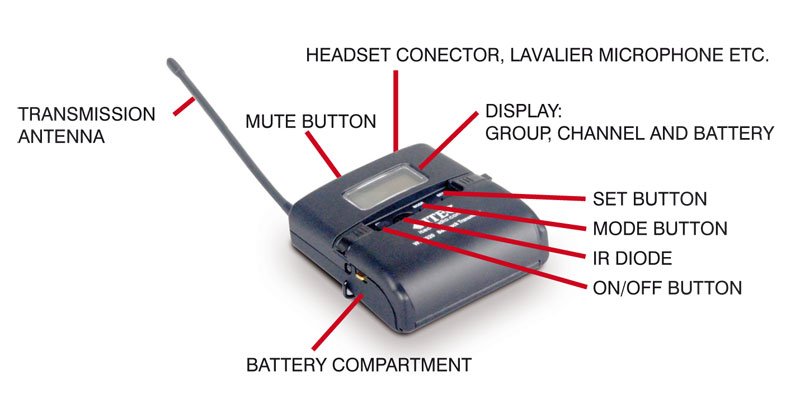

ITEC WT 5320

Rechargeable battery operation

WT 5320

Accessories

ITEC MC-210 Lavaliere Microphone
Lavaliere microphone with clip to mount on clothing and cable to connect to ITEC pocket transmitter. Superb recording quality, cardioid polar pattern.

ITEC MI-Headset
skin colored, lightweight, high wear comfort, cardioid polar pattern

ITEC PRO-Headset
Beige-coloured headset with 4.5 mm condenser microphone (omnidirectional). 4 pin Mini XLR connector. Can be used left or right, length and height adjustable. Sweat resistant, incl. 1 exchangeable windscreen.

CHARGING STATION HC-80
Dual charging station to charge two WM-5300 handheld microphones, WT-5300 pocket transmitters or 18500 lithium-ion batteries (combinations possible, e.g. 1 handheld microphone and 1 pocket transmitter). LED status display. Compact, stackable design. Includes plug-in power supply unit.

Specifications

GENERAL FEATURES OF THE SYSTEM
Maximum frequency deviation ± 40 kHz
Frequency response 50 Hz - 18 kHz
Harmonic distortion < 0,5 % @ 1 kHz
Signal-to-noise ratio > 106 dB
WT 5300 POCKET TRANSMITTER
Power supply 2 batteries, alkaline AA 1.5 V
Operating time approx. 20 hours with one set of batteries
Dimensions, weight 85 x 65 x 22 mm, Weight=90 g
WT 5320 POCKET TRANSMITTER, BATTERY OPERATION
Power supply 1 lithium-ion battery, type 18500, 3.7 V
Operating time approx. 10 - 12 hours with one battery charge
Dimensions, weight 75 x 65 x 22 mm, Weight=110 g


All information without guarantee. Subject to technical changes.
