Business-Callstation 1/8


                                                                                            Callstation 1/8 with 1x Callstation 1/8 Extension

• Call station for ITEC-NET system
• Eight illuminated zone buttons, one push-to-talk button
• Sturdy steel panel housing
• Electret condenser microphone with goose neck
• Audio output analogue, balanced
• Data transmission RS-485 (ITEC-Bus)
• Audio-Output 0dB (Line Level)
• Connection to control center with CAT5 or higher / RJ45
• Up to eight call stations cascadable (daisy chain)

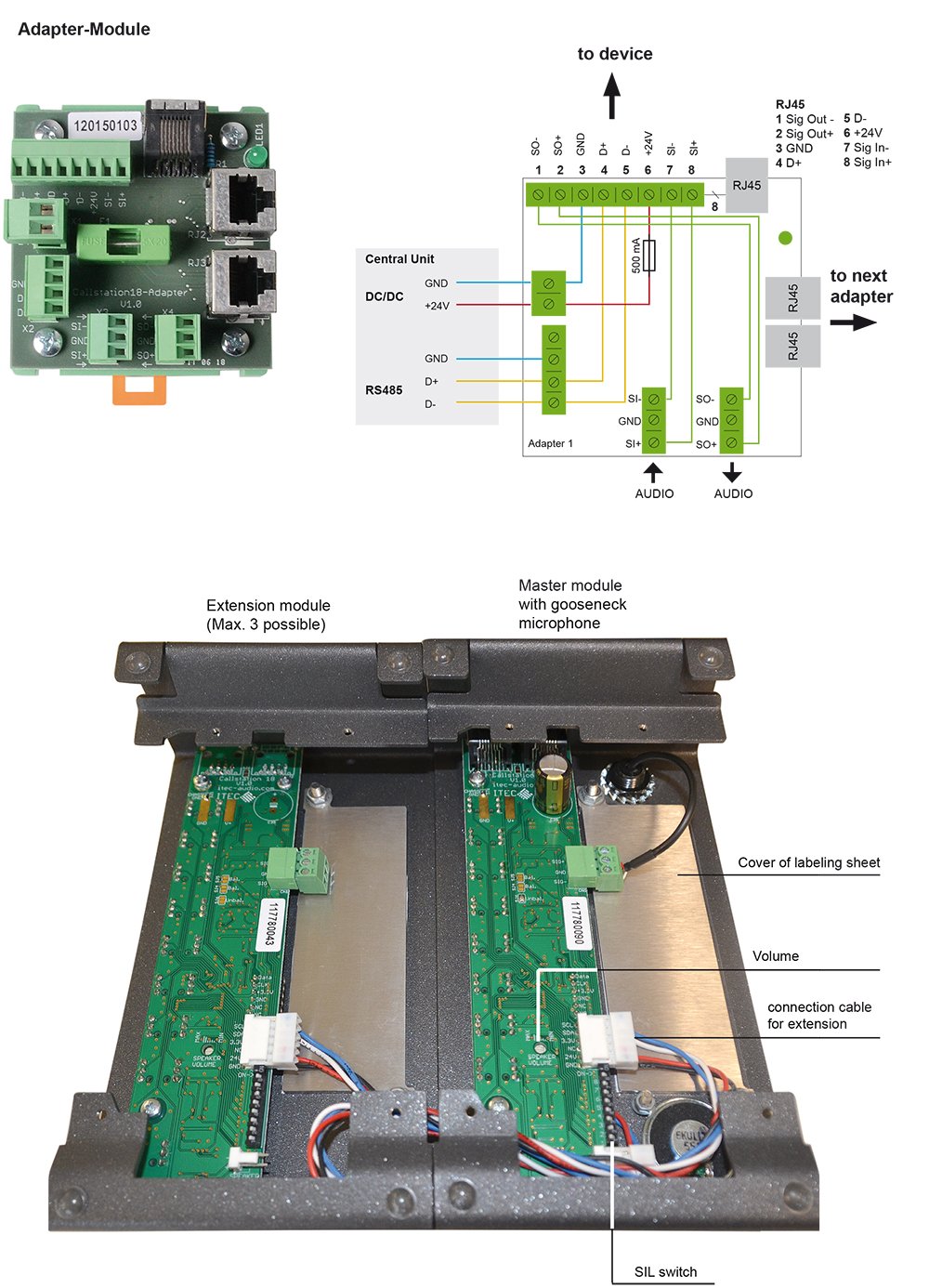

• Adapter module for simple connection to central system available
• Interchangeable labelling card
• Up to three expansion modules with 8 zones each stackable
• Audio amplifier (1 watt) and loudspeaker integrated

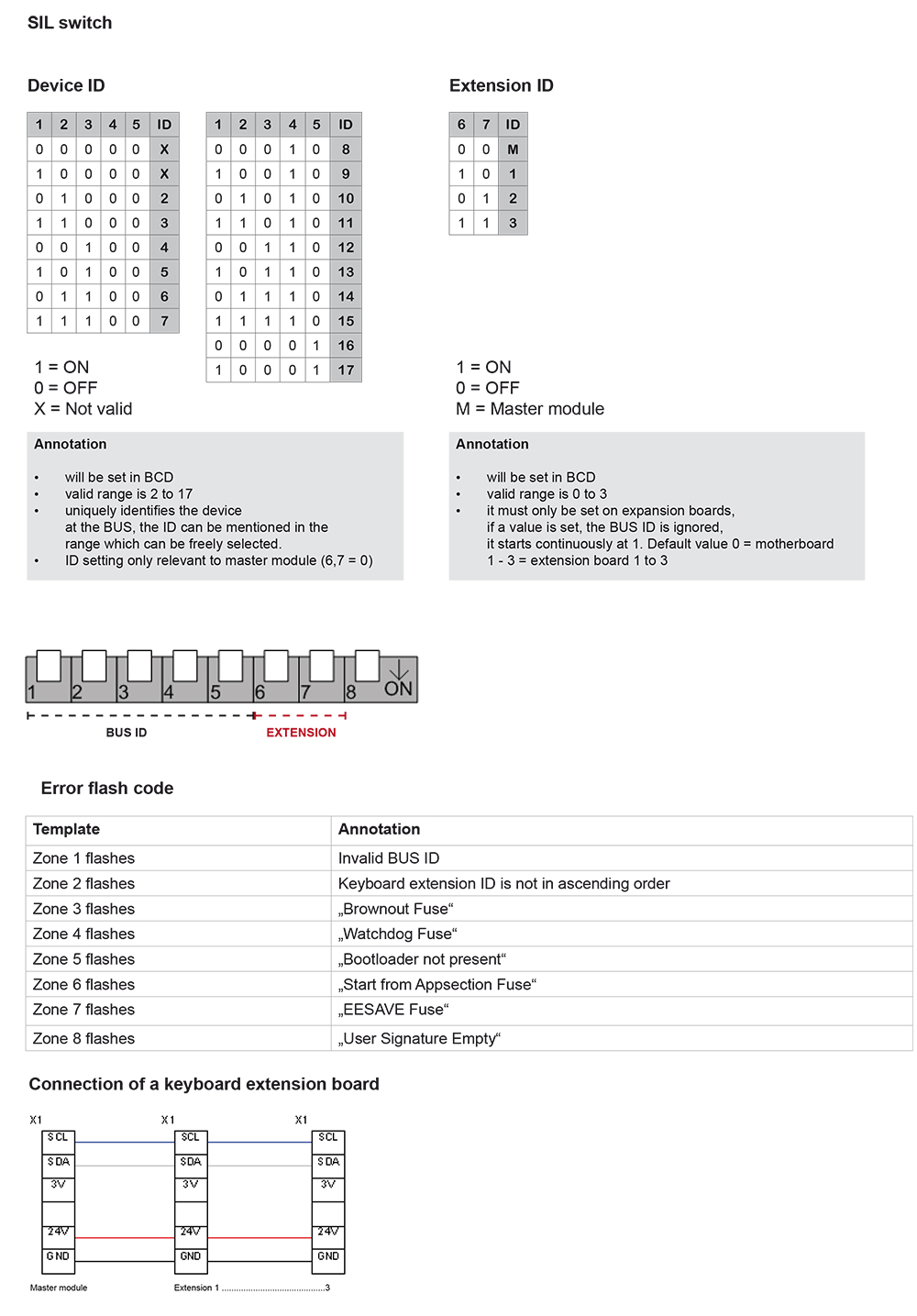

• Addressable via 8-way SIP switch in the device

CALL STATION CONSTRUCTION	Steel panel hosing with permanently mounted goose neck microphone
MICROPHONE	Electret condenser microphone, length: 295 mm
ADAPTER CONSTRUCTION	„Open frame“ construction with base for 35 mm snap-on plate
POWER SUPPLY	24 VDC (via RJ45)
CURRENT DRAIN	max. 50 mA
OUTPUT LEVEL	0 dB balanced (Line)
HOUSING MATERIAL / COLOUR	Surface: powder-coated in dark grey, textured / sides: Stainless steel untreated
PROTECTION CLASS	IP 44
OPERATING TEMPERATURE	-5°C - +40°C

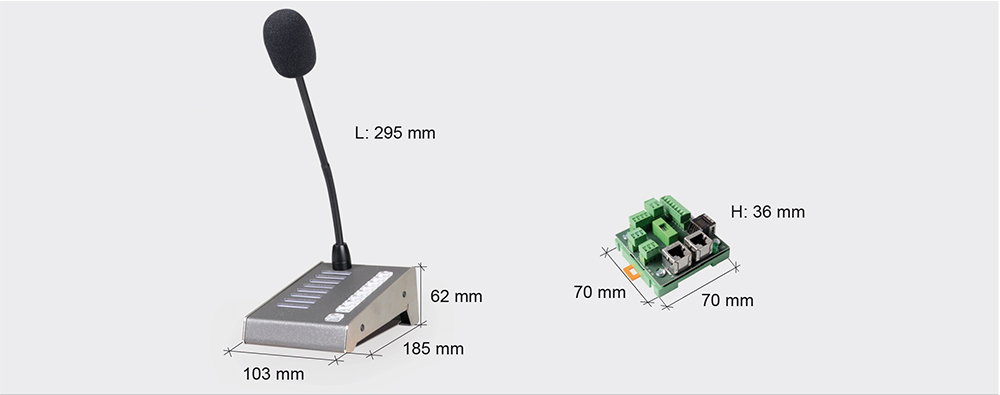

DIMENSIONS	Call station: 185 x 103 x 62 mm / Adapter: 70 x 70 x 36 mm
WEIGHT	Call station: 1,10 kg / Adapter: 90 g

All information without guarantee. Subject to technical changes.
