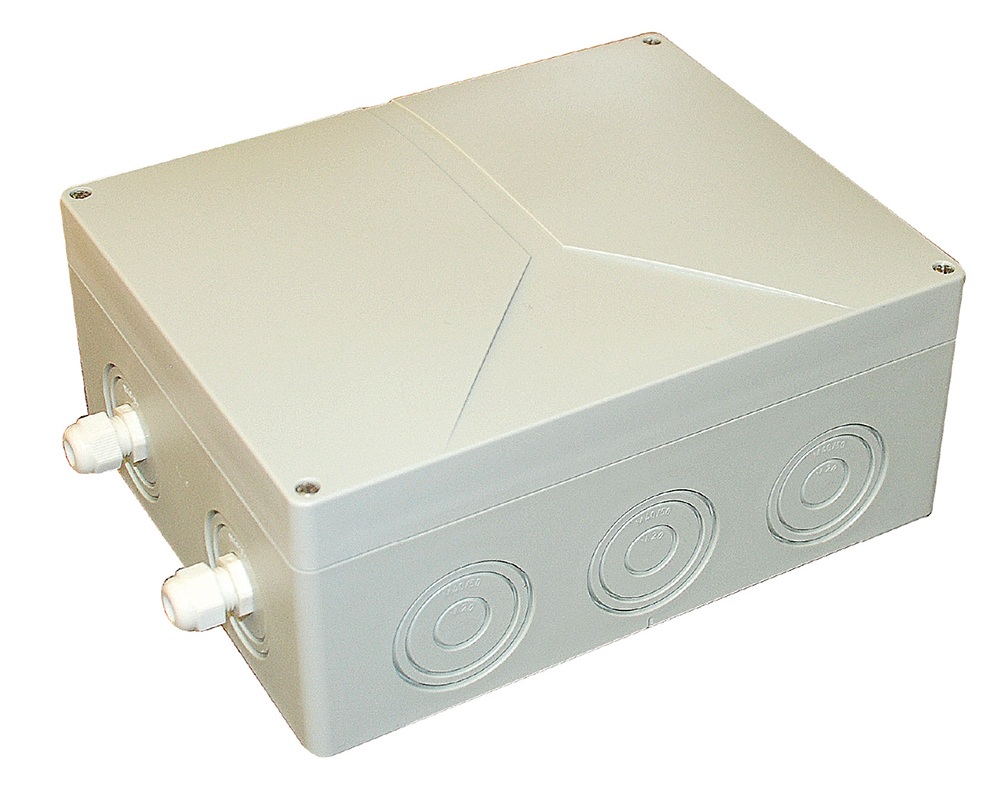

CAT5 Repeater
- ITEC-NET is an audio network which is based on the IEE-802.3 Ethernet standards. Therefore, you can use existing network structures as well as all commercial components, such as network switches.
- The ITEC-NET CAT5 Repeater ensures that the entire network can be built using components providing equal reliability, longevity and robustness. The availability of structurally identical components and spare parts must be ensured for many years, which applies to network switches just as to all other ITEC-NET components. This enables us to always meet the requirements for EN 54-16 certification.
- 24VDC power for supply using EN54-4-certified energy supply equipment.
- System certified according to EN 54-16: EC conformity certificate no. 1293-CPR-0643 Rev.1
Specifications
 |
|
| GENERAL | |
| POWER SUPPLY | external switching power supply or 24 V DC (18 V < V < 32 V) |
| Current consumption @ 24 V | 80 mA in idle mode, +10 mA per active port 130 mA at full load |
| OPERATING TEMPERATURE | -5°C - +40°C |

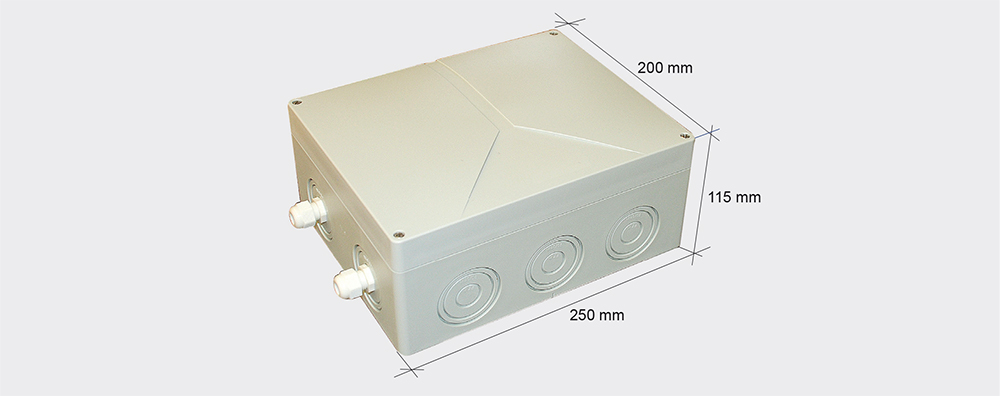

| DIMENSIONS | 250 x 200 x 115 mm (W x H x D) |
| WEIGHT | 900 g |
| NETWORK | |
| STANDARD | Compliant with IEEE 802, 100Base-TX, 100Base-FX standard Compliant with IEEE 802.3 10Base (not relevant for ITECNET) |
| PORTS | |

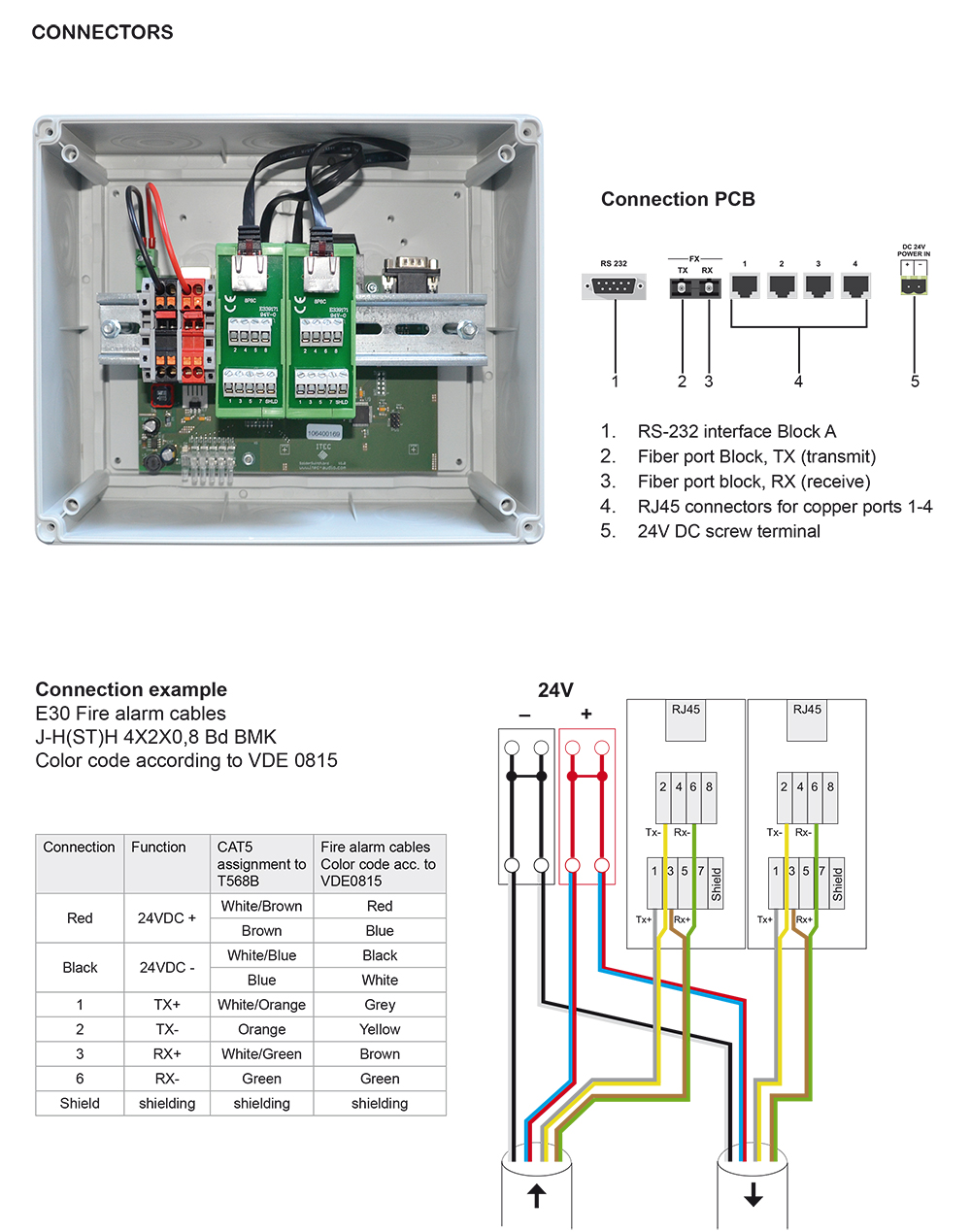

| COOPER | 4 ports on RJ45 connector |
| FIBER OPTIC | fiber optic ports on SC connector, Wavelengh: 1310 nm, Cable: MultiMode Fiber |
| SERIAL INTERFACE | |
| RS 232 | for configuration (in preparation) |
No responsibility is taken for the correctness of this information - Specifications subject to change.
