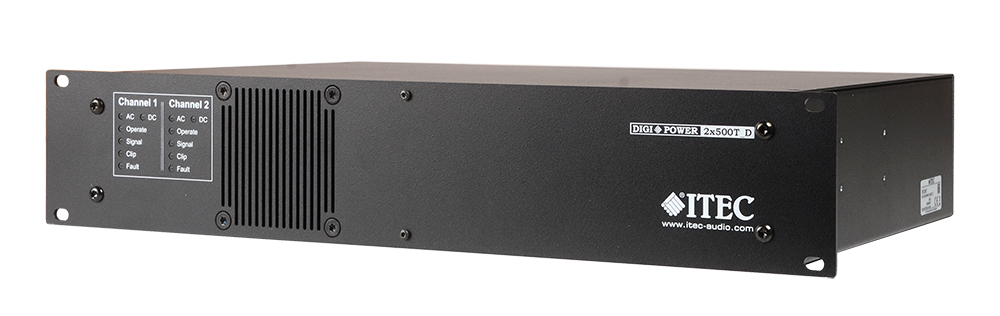

DigiPower 2x500T_D

• 230 VAC and 24 VDC power supply with automatic switching

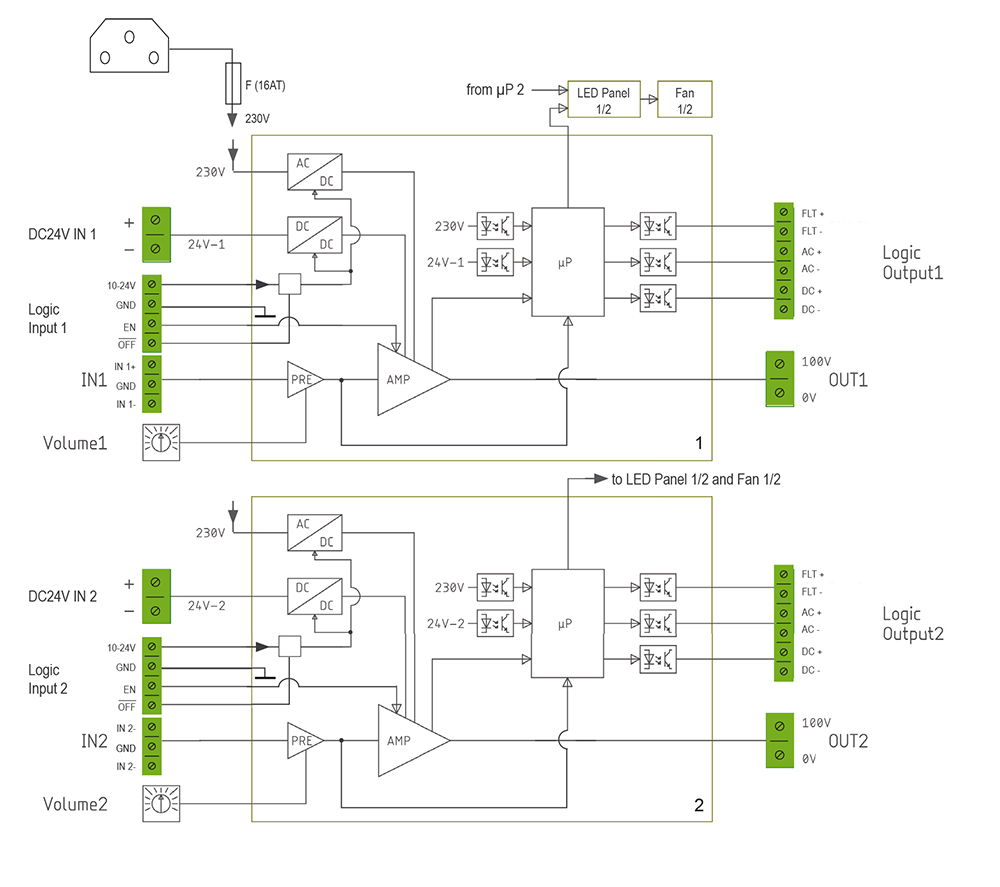

• Separate power supply per amplifier channel
• Automatic standby mode
• Control LEDs for all signal and operating contitions
• Monitoring contacts for power amplifier, AC and DC supply
• 100 V direct outputs
• Balanced inputs
• 2 channels in 2U/19“ housin
• Installation depth 322 mm

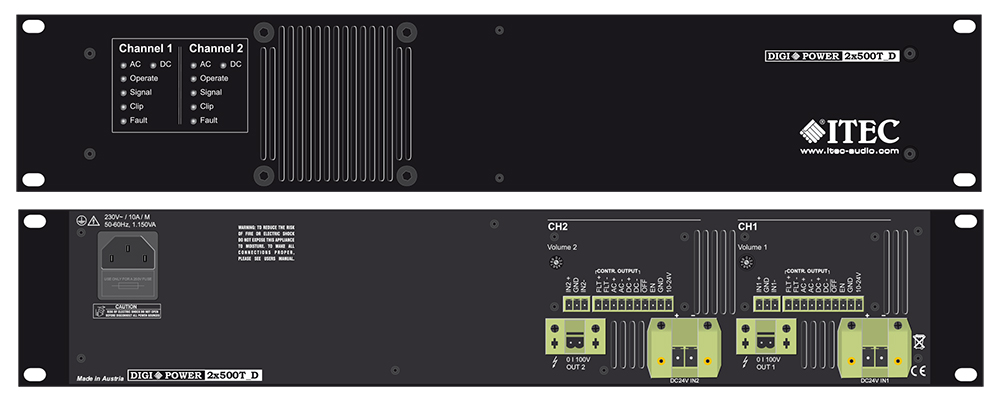

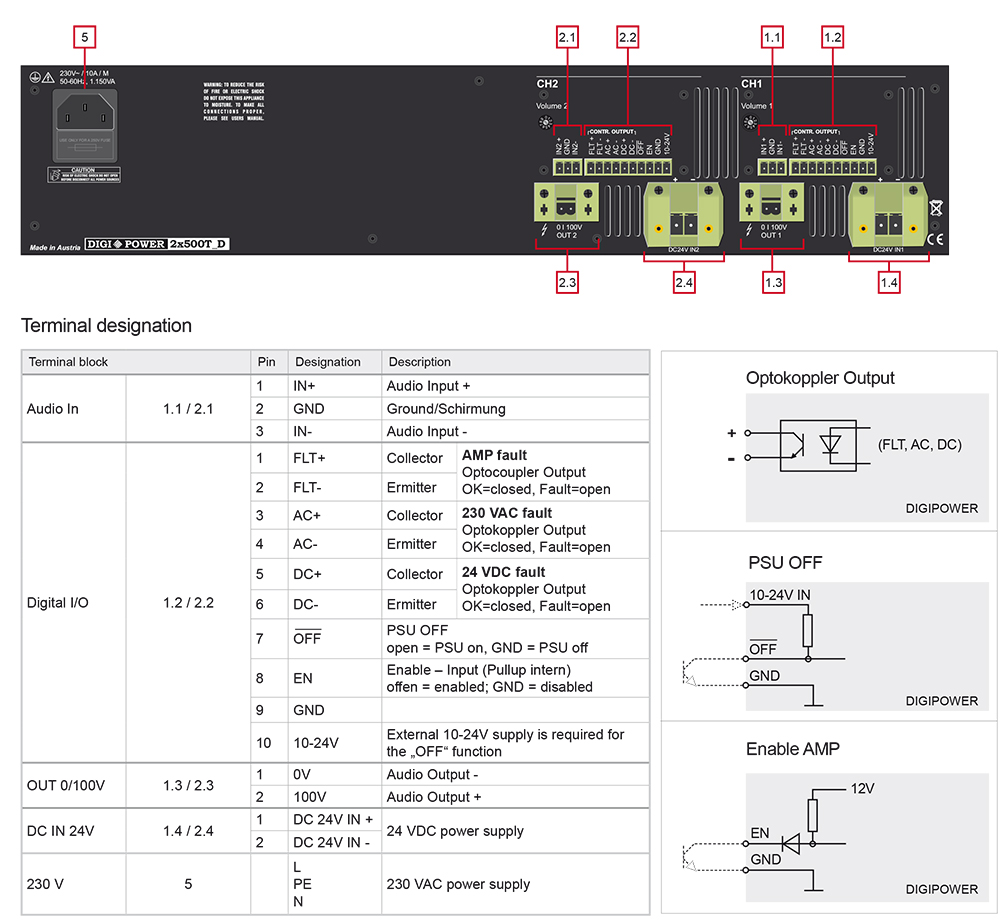

• All connections with plug-in terminals
• Protection circuits: Automatic shutdown in the event of overtemperature, overload and hort circuit of the speaker lines

Two-channel digital power amplifi er with 2x500W nominal power for professional electroacoustic voice alarm systems.
The electronic protective circuits ensure the necessary safety of the amplifier. In case of a power failure automatically switched to emergency power operation (battery 24V).
A very reliable electronics design guarantees uncompromising transmission quality and long-term trouble-free operation. Thanks to digital signal processing, up to 90% effi ciency and hardly any waste heat.

• Temperature dependent fan control
• Monitoring contacts for all channels
• Digital amplifier design
• Installation depth of 322 mm
• Level control for each channel on the back
• All operating states are indicated by LEDs

	Min.	Typ.	Max.
Power supply AC	85 VAC	230 VAC	265 VAC
Current consumption 230 VAC (OUT: 2x Sinus 100 V, 1kHz @ 20 Ohm)		5.5 A
Current requirement 230 VAC (OUT: 2x Sinus 100 V, 1kHz @ 20 Ohm)		1250 W
Power supply DC	21 VDC	24 VDC	27.6 VDC
Current consumption 24 VDC (OUT: 2x Sinus 100 V, 1kHz @ 20 Ohm)		2 x 26A
Current requirement 24 VDC (OUT: 2x Sinus 100 V, 1kHz @ 20 Ohm)		2 x 625 W
Current requirement Standby @ 230 VAC		14 W
Current requirement Standby @ 24 VDC		2 x 7 W
Current requirement Off		0.05 W
Output power (RMS, 20 Ohm, 100 V) @ 230 VAC	2 x 500 W
Output power (RMS, 20 Ohm, 100 V) @ 24 VDC	2 x 500 W
THD + N (20 Hz – 20 kHz, 100 mW – 100 W, 100 Ohm)			0.1 %
External voltage distance (A-weighted)		102 dB
Input resistance (each channel)		10 kOhm
Frequency response (-3 dB)	10 Hz	-	30 kHz
Voltage gain		42.2 dB
Maximum output voltage		105 VRMS
GENERAL TECHNICAL DATA

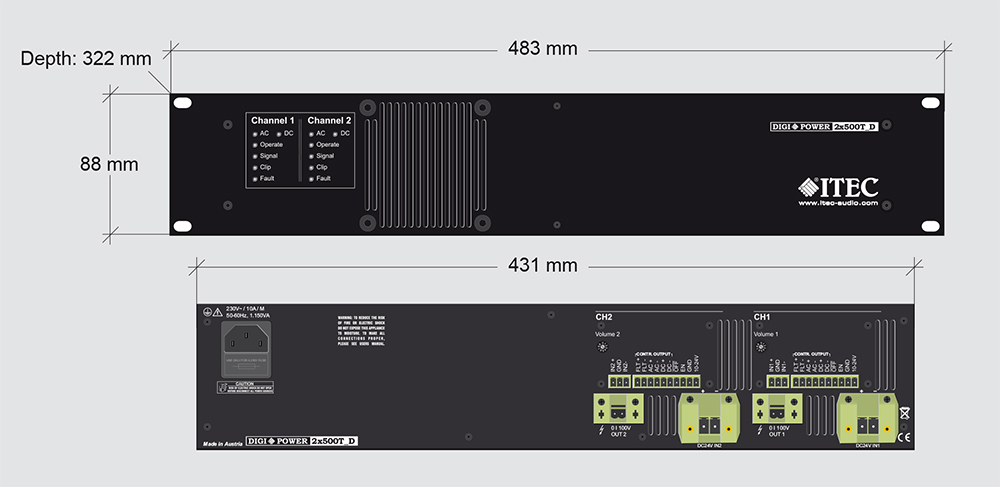

Dimensions (WxHxD)	483 mm x 88 mm x 322 mm
Weight	4.4 kg

 All Informations without garantee. Subject to technical changes.
