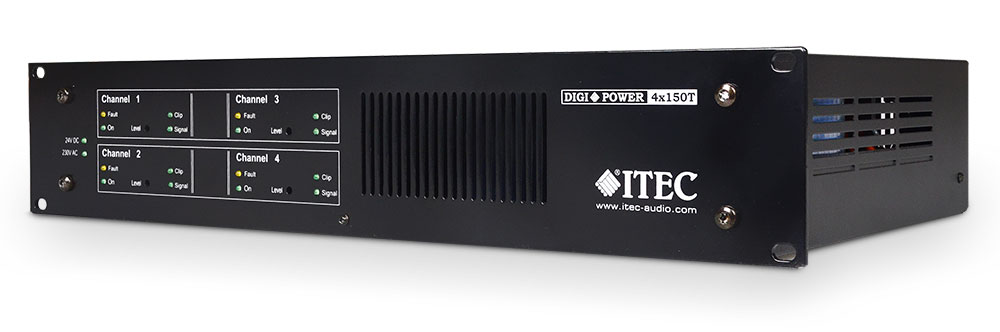

DigiPower 4x150T/02

• LED indicators for signal and operating conditions
• Potential-free monitoring outputs for battery and mains supply
• Potential-free monitoring outputs for the function of the power amplifier
• Low installation depth of only 302 mm
• Low construction height: 2 RUs for 4 channels, output transformer on board

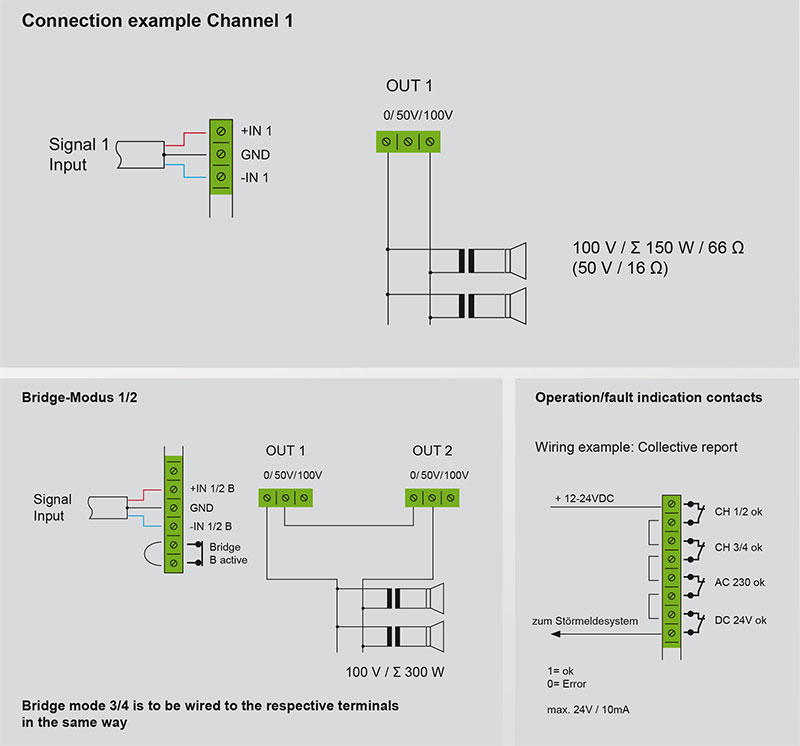

• All ports with push/screw terminals
• Symmetrical signal inputs
• Automatic standby with lowest possible current drain in 24 VDC operation
• Protection circuit against open-circuit operation, short circuits, excessive temperature, DC
• 230 VAC network and 24 VDC voltage supply
• Soft start, cascadeable switch-on delay when using several devices
• Temperature-controlled fan
• RS485 interface (optional) to control and query important parameters

100 V digital amplifier - durable and safe for professional ELA installations. The very reliable electronics design ensures transmission performance without compromise and a trouble-free operation for years. Hardly waste heat, over 90 % efficiency thanks to digital signal processing and a maintenance-free cooling system without fans are further features.

• Maintenance-free cooling system without fan
• Monitoring contacts
• Digital signal processing
• Only 302 mm installation depth
• Only 10 W power consumption in standby mode
• Rechargeable battery for emergency operations

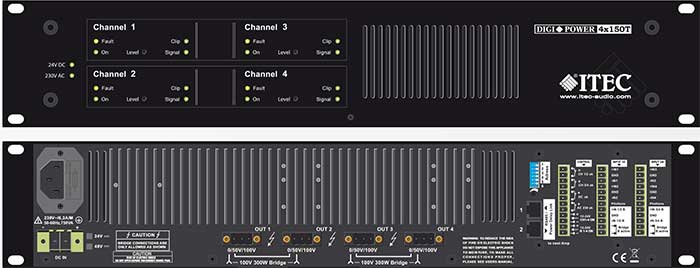

Level controls for each channel located on the back. Display of all operating conditions by LEDs.

The cooling system operates without a fan, so

• no pollution
• no consequential costs
• no moving parts

TYPE	4x150T
Output Power	4 x 150 W
THD + N	< 0,29 %
Input sensitivity	1V eff
Input Impedance	10 kOhm
Signal-to-Noise Ratio @ 1 kHz, 250 W, Vol 0.5	85 dB
Output transformer	50 V / 100 V
Current consumption 230 VAC sinus 100 V @ 40 Ohms	3.7 A
Current consumption 24 VDC sinus 100 V @ 40 Ohms	27 A
Current consumption Standby 230 VAC	0.045 A
Current consumption Standby 24 VDC	0.16 A
Power consumption in standby mode (230 V)	10 W
Power consumption at full load (230 V)	851 W
Inputs	symmetrical on screw terminal
Supply voltage	230 VAC / 24 VDC
Operating temperature	-5° C bis +40° C
Protection circuits	DC, short circuit, resonance, over temperature
Frequency response	80 Hz ÷ 22 kHz / -3 dB

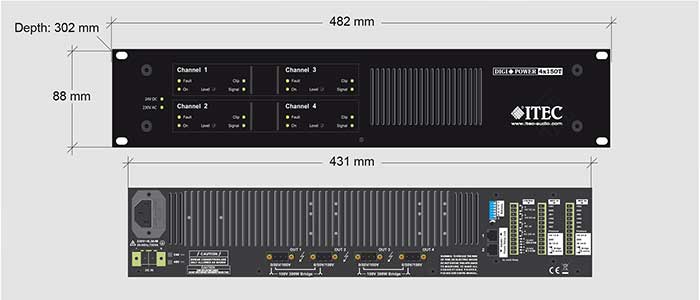

Dimensions	482 mm x 88 mm x 302 mm (B x H x T), 19"“ / 2RU
Weight	17.1 kg

 No responsibility is taken for the correctness of this information - Specifications subject to change.
