Display Control Unit_43

• Display and control unit for ITECNET systems
• Color display 4.3 inch with 480 x 272 pixels
• Adjustable brightness
• Particularly sensitive, capacitive touch screen
• Comfortable operation with rotary knob and button
• Free configuration via ITEC Netdesign
• Standard network connection to ITECNET system components
• Can be remotely located up to 100 m from the associated central device
• 24 VDC supply
• Power-over-Ethernet supply possible

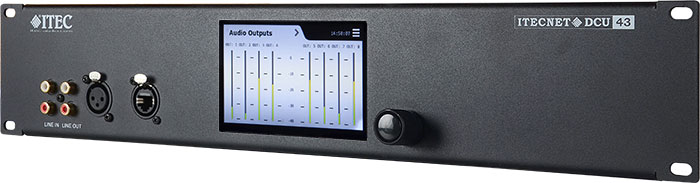

• Design 19“, 2 HE for installation in standard racks
• Installation option for cinch and XLR sockets (audio, network) for free wiring

Design	Flush installation in 19“ / 2 RU front panel with protective
Power supply	24 VDC (18 V < U < 32 V) on plug-in terminal block
Current consupmtion	max. 100 mA
Power-Over-Ethernet	possible optionally
Network port	Standard Ethernet to RJ45 socket
Operating temperature	-5° C - +40° C

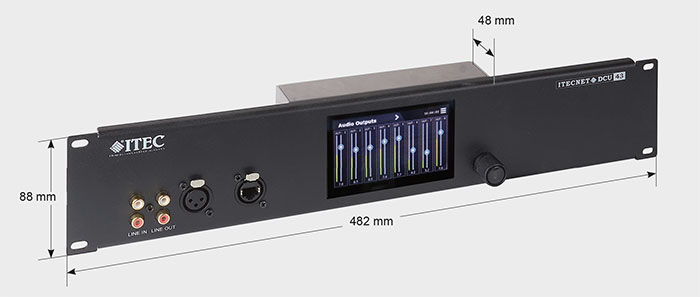

Dimensions	482 mm x 88 mm x 48 mm (W x H x D), 19“ / 2 RU
Weight	0,5 kg

All information without guarantee. Subject to technical changes.
