EARTH FAULT MONITORING

ITEC EARTH FAULT MONITORING is a module for the monitoring of 24 volts power supply cables for remote system components (eg callstations). It measures the resistance of both lines compared with the protective conductor (PE).

In accordance with the relevant standards a ground fault error is detected when a resistance of

  • Open Frame module for the installation in a system cabinet.
  • Easy installation, prepared for DIN-rail 35 mm.
  • All connections on plug terminal blocks.
  • Collective fault at relay changeover contact (Fault / OK).
  • Switch to lower sensitivity (10k) by jumper setting.

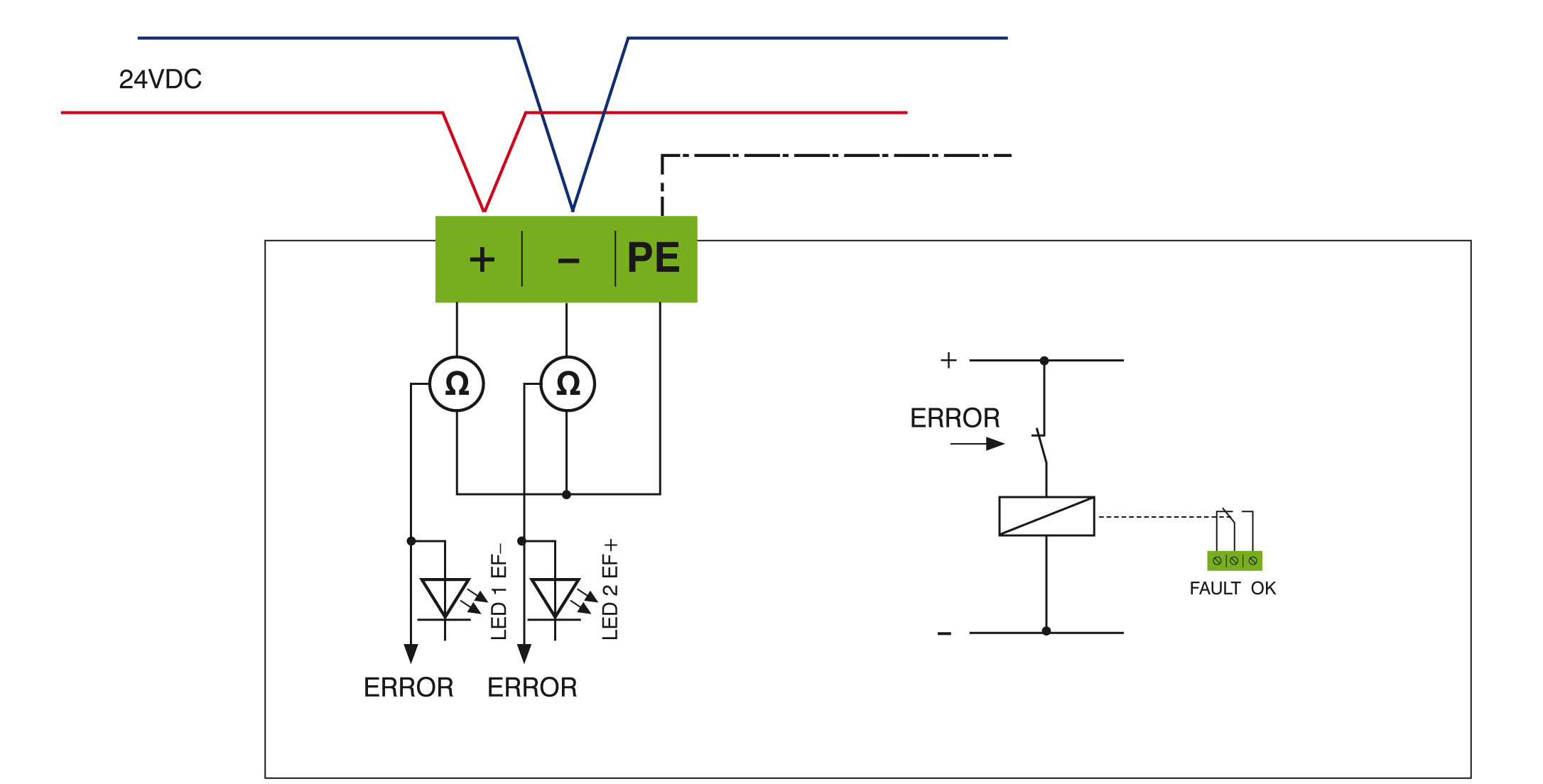

Block diagram

Earth Fault Monitoring

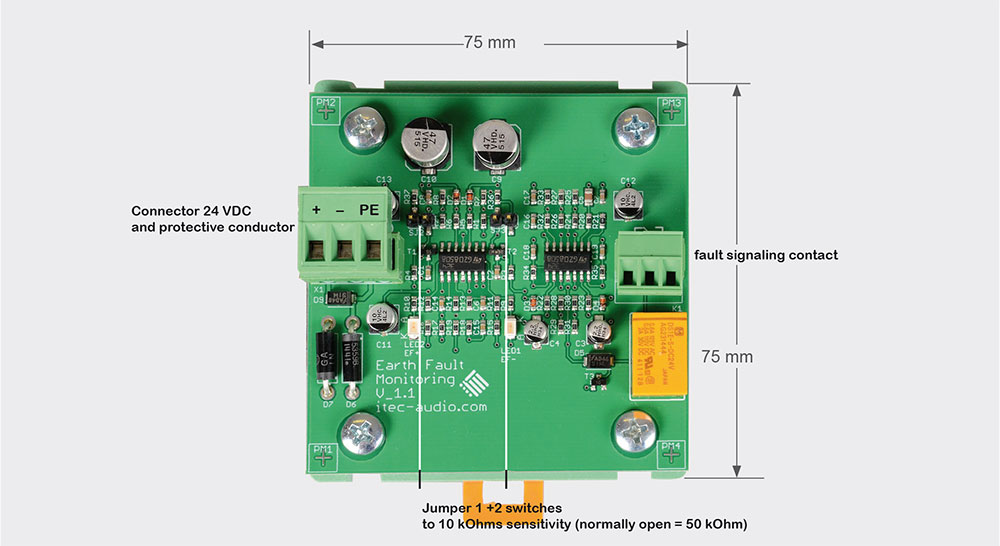

Specifications

Earth Fault Monitorin
POWER SUPPLY 24VDC (= the voltage to be monitored)
CURRENT ca. 100 mA
THRESHOLD 50 kOhms (10 kOhms if JP1 and JP2 closed)
RELAY CONTACT max. 48 Volt/500 mA
OPERATING TEMPERATURE -5°C - +40°C
DESIGN Open Frame module for cabinet installation
DIMENSIONS 75 x 70 x 40 mm (height x width x depth)
WEIGHT ca. 110 g
MOUNTING  DIN-rail 35 mm


All information without guarantee. Subject to technical changes.
