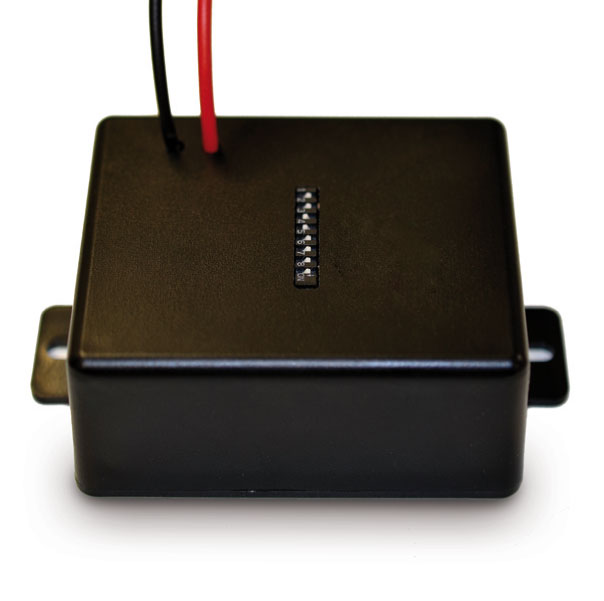

EOL3/03

EOL 3

  • Line monitoring module according to EN 54-16 standard
  • Suitable for 100 V systems
  • No additional cabling mandatory, works with standard 2-pole wire
  • Addressable monitoring component
  • Reliable break detection in every branch of a speakerline

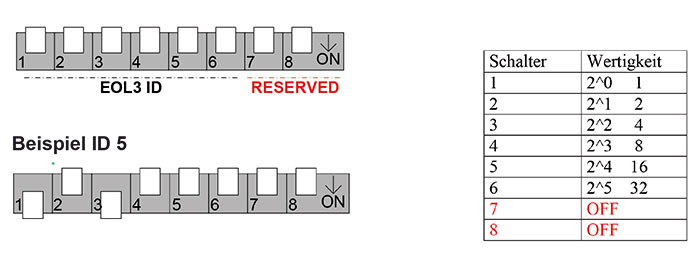

Configuration of the EOL3 module address, further called “EOL3 ID”, is achieved through a SIL selection switch. This switch is located on the outside of the module is may be manipulated with a small flat screwdriver or pencil tip.

The valid EOL3 ID range is defined from 1 to 63 and needs to be configured before mounting by trained personal. The selection switches number 7 and 8 need to be switched off.

The following requirements need to be met while adressing the EOL3 modules

  • The EOL3 is is unique per loudspeaker line and amplifier channel
  • The maximum number of EOL3 modules per loudspeakerline is 16
  • The maximum number of EOL3 modules connected to an amplifier is 16
  • If multiple EOL3 modules are connected on the same loudspeaker line,
    the ID’s need to be in ascending order, without gaps, for example: 6, 7, 8
  • The maximum number of EOL3 modules per Spider/Spiderline is 64
  • The EOL3 ID is unique per Spider / Spiderline
  • The EOL3 ID might be used more then once in a ITEC-NET network

Connection of an EOL3 module

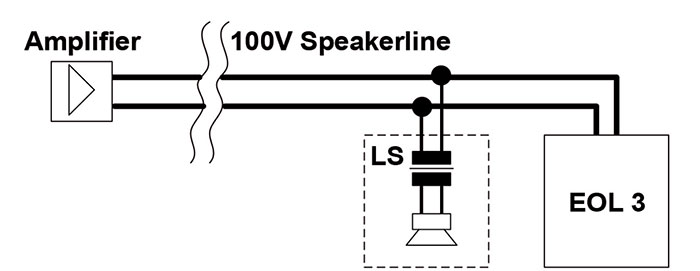

The EOL3 module is connected at the end of a 100V speakerline respectively at the last loudspeaker. The polarity of the connection does not matter.

EOL 3

Wiring diagrams for different speakerline structures

Single transmission line monitoring

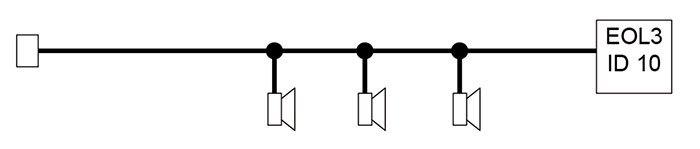

The EOL3 modul is connected at the end of the speakerline

EOL 3


Tree structure monitoring

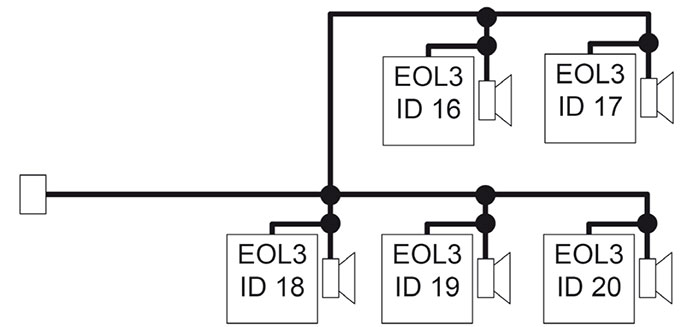

The EOL3 modul is connected at each end of a branch.

EOL 3



Individual speaker monitoring
One EOl3 module is connected by each loudspeaker.

EOL 3

Specifications

EOL 3
POWER SUPPLY 8-100 VAC
POWER CONSUMPTION Max 150 mW typ 100 mW
PROTECTION IP54
# MODULES PER AMPLIFIER 16 (max.)
# MODULES PER SPEAKER LINE 16 (max.)
# MODULE PER SPIDER / SPIDERLINE 64 (max.)
LINE POWER 500 W (max.)
OPERATING TEMPERATURE -5° C - +40° C

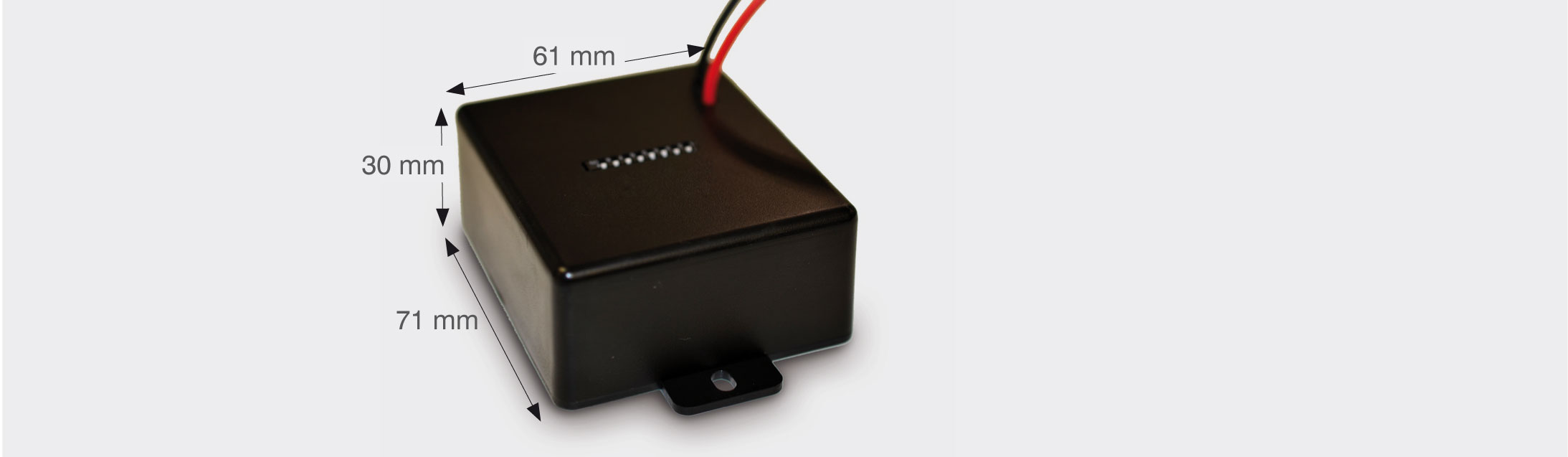

DIMENSIONS 71 mm x 61 mm x 30 mm
WEIGHT ca. 100 g
WIRING 2 x 1,5 mm²
