Firefighters Callstation acc. to ONORM F30333/02

• Alarm call station with housing and operating panel according to standard
• Full-fledged ITECNET system component, network device
• Up to 4000 devices can work simultaneously together in a network
• Ethernet-based multi-channel PA system for alarming, evacuation, music and broadcasting
• Simultaneous transmission of up to 64 digital audio channels
  in studio quality (48 kHz / 24 bit)
• Real-time configuration with ITECNET - NETDESIGN:
  Allows system configuration changes during normal operation of the system
• Real-time audio transmission: Constant latency of 4.6 ms analog-in/analog-out
• Dynamic hand-held microphone
• Microphone and line monitoring
• Integrated 2 GB memory card for alarm texts and music files.
  Recording Capacity 256 files, total time about 3 hours!
• 24 VDC power for supply using EN54-4-certified energy supply equipment.
• System certified according to EN 54-16: EC conformity certificate no. 1293-CPR-0700

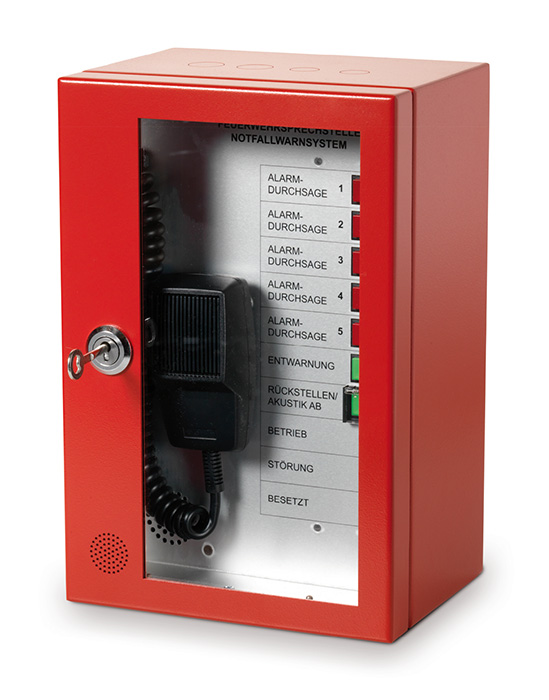

The ITEC Firefighters Callstation has the same features as the ITECNET SpiderMike2 callstation. However, its callstation hardware is in a housing that meets the ÖNORM F3033 standard. So the Firefighters callstation offers the standardised Austrian user interface for safety call stations with a lockable door. Ports in steel housing: 2x RJ45 network connection, power supply: 24 VDC.

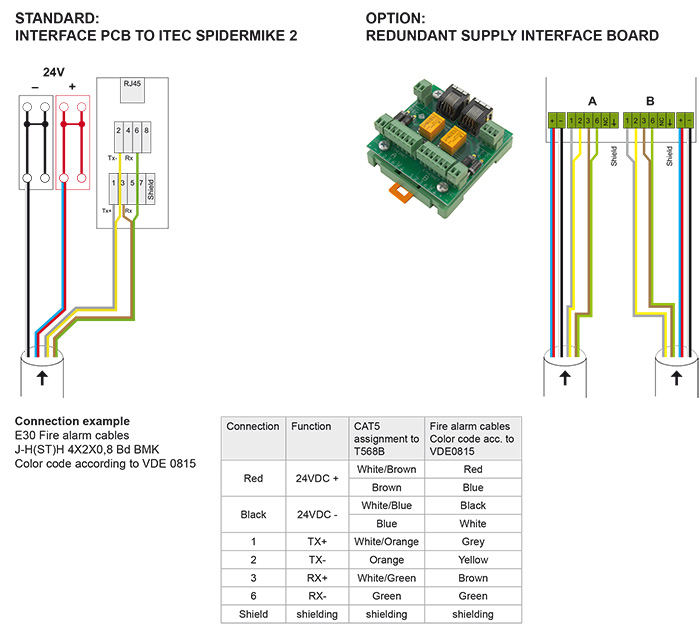

Option: Redundant connection via internal PCB board.

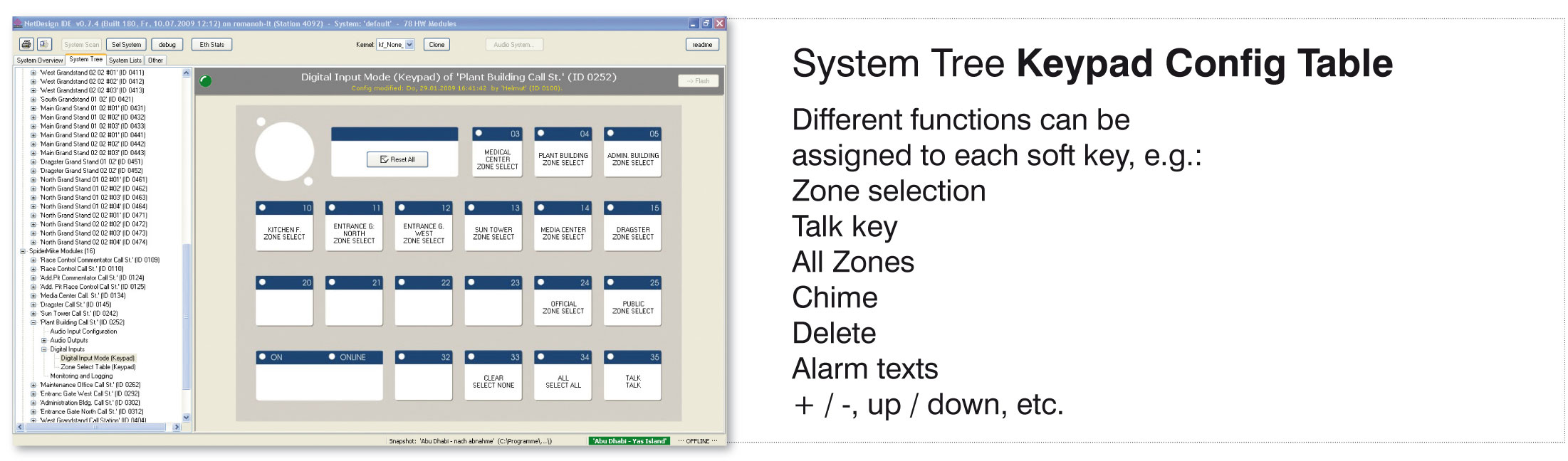

ITEC NETDESIGN is a Windows-based application for configuring and monitoring the entire ITECNET network. Included is a TCP/IP interface (ITECNET API) allowing a direct link to other control systems, such as media control or security management systems. In addition NET-DESIGN offers the possibility to update the DSP- and control software from any point of the network. The huge number of monitoring and logging capabilities ensures a safe operation within this large audio and data distribution system.

Example:

GENERAL
EXTERNAL POWER SUPPLY	switching power supply or 24 VDC (18 V < V < 32 V)
Current	260 mA, measured without applied load on the 10 VDC voltage
OPERATING TEMPERATURE	-5° C - +40° C

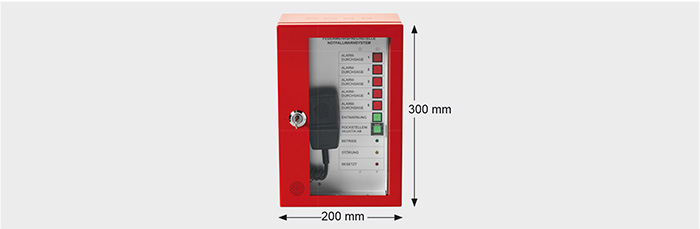

DIMENSIONS	200 mm x 300 mm (W x H)
WEIGHT	4.5 kg
AUDIO
AUDIO FREQUENCY RESPONSE	40 Hz-20 kHz/-1 dB
HARMONIC DISTORTION	<0.005 %
GENERAL DYNAMICS	103 dB
BALANCED INPUTS	max. free selectable gain -20 dB to +60 dB
Phantom power	+12 V
Input impedance	6.6 kOhm
BALANCED OUTPUTS	OUT1: speaker 1 W; OUT2: balanced; max. output level +15 dB, output impedance 300 Ohm
SOUND PROCESSING
PER INPUT	2-band fully parametric equalizer ± 15 dB 1 low/high pass 1st order
PER OUTPUT	4-band fully parametric equalizer ± 15 dB, delay: 0.023 to 24.5s bandpassfilter: 1st – 4th ORDER
	Compressor/limiter
Filter quality	selectable from 0.1 to 70
SERIAL INTERFACES
RS232	9600, 19200, 57600, 115.200 baud
DIGITAL INPUTS	4 schmitt-trigger inputs on plug in-terminal strip
INPUT VOLTAGE	Low < 1.6 V / High > 8 V
MAX. ALLOWABLE VOLTAGE	18 V
INPUT CURRENT (@10 V)	about 0.2 mA
DIGITAL OUTPUTS	6 open-collector outputs on plug in-terminal strip
MAX. VOLTAGE	36 V
MAX. OUTPUT CURRENT	200 mA per output / total 500 mA (sum of all outputs switched)
ANALOG INPUTS	6 analog inputs on plug in-terminal strip
RANGE	0-10 VDC
RESOLUTION	8 Bit
INPUT CURRENT (@10 V)	about 0.2 mA
MICRO SD-CARD SLOT
STORAGE CAPACITY	for Micro SD cards up to 2 GB
NETWORK	Ethernet 100 Base-TX, IEEE 802.3u

No responsibility is taken for the correctness of this information - Specifications subject to change.
