Firefighters Callstation RS485 (F3033)
- Security call station according to ÖNORM F3033 for ITECNET VANSYS
- Sturdy steel panel cabinet
- Standards-compliant control and display panel
- 7 function keys and 3 status LEDs
- Handheld microphone with push-to-talk button
- Analogue audio output, balanced
- Data transmission RS485 (ITEC-Bus)
- Audio-Output 0dB (Line Level)
- Connection to control centre with CAT5 or higher (RJ45 or plug-in terminal block)
- Adapter module for simple connection to central system available
- Integrated audio amplifier (1 watt) and loudspeaker
- Addressable via 4-way SIP switch in the device

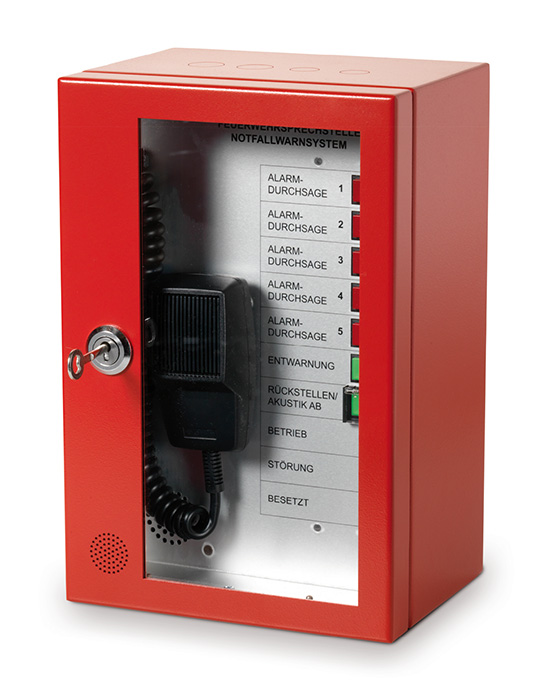

FIREFIGHTERS CALLSTATION RS485 according to ÖNORM F3033
The ITECNET Fire fighters callstation RS485 is a remote call station for the connection to an ITECNET
Spiderline16 or Spider44. The call stations hardware is installed in a standard housing according to ÖNORM F3033.
The call station offers the standardized Austrian user interface for security calls with lockable door.
Connectors inside: 8-pin Phoenix plug or RJ45 (ITEC-BUS, 2x analogue audio sym., 24 VDC).

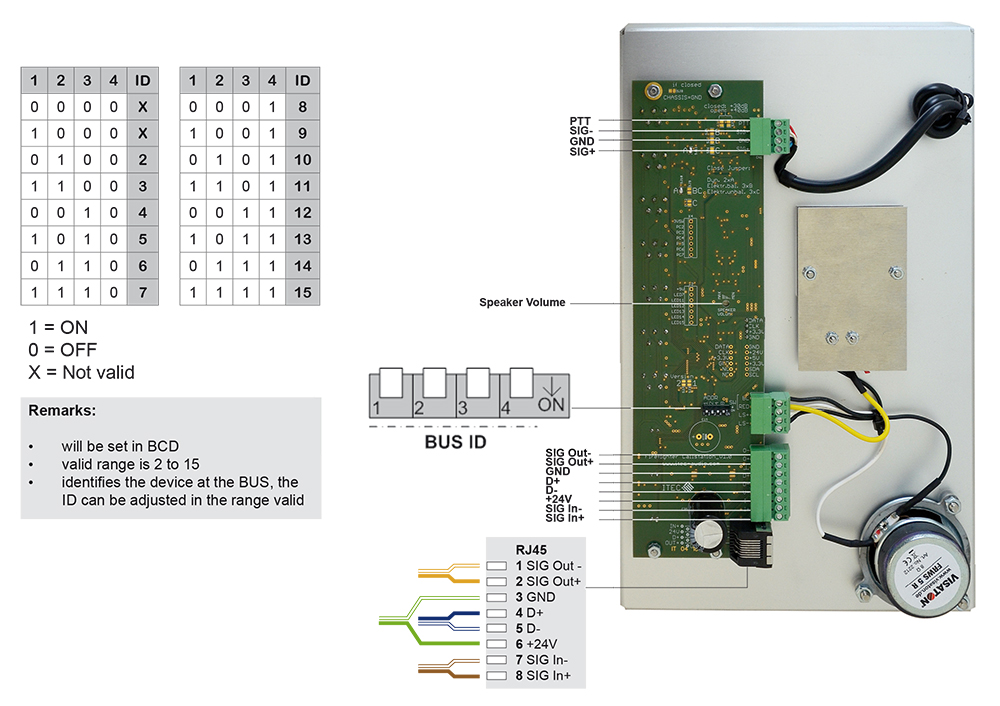

SIL switch - Device ID

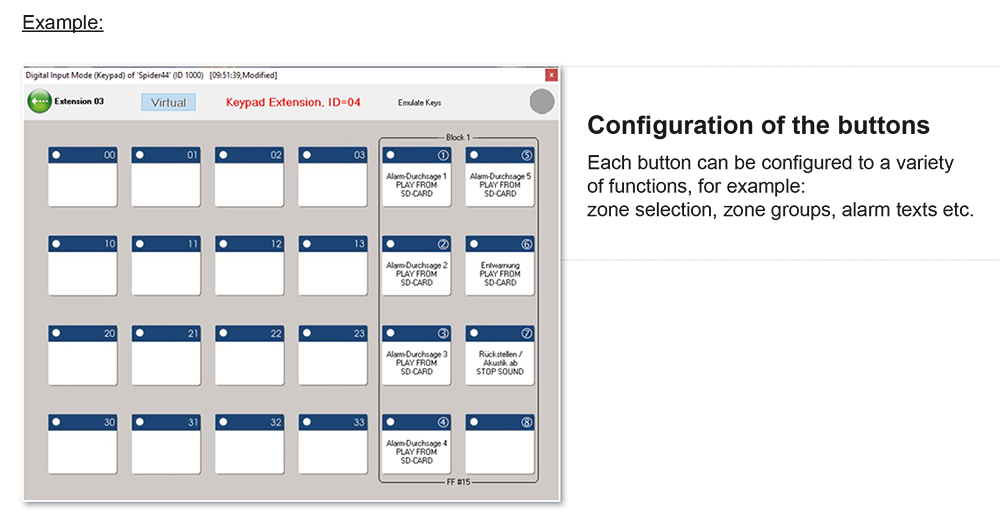

NETDESIGN Configuration, Maintenance, Control, and Interface Software
NETDESIGN ist eine Windows-basierende Anwendung zur Konfiguration und Überwachung des gesamten ITECNET Netzwerkes. Inkludiert ist eine TCP/IP - Schnittstelle (ITECNET API) zur Anbindung an andere Kontrollsysteme, wie z.B.: Mediensteuerungen oder Sicherheitsmanagementsysteme. Weiters ermöglicht NETDESIGN das updating von DSP- und Kontrollersoftware von jedem Punkt des Netzwerkes aus. Eine umfangreiche Pallette an Überwachungs- und Protokollierungsfunktionalitäten gewährleisten den sicheren Umgang mit einem großen Audiound Datenverteilsystem.

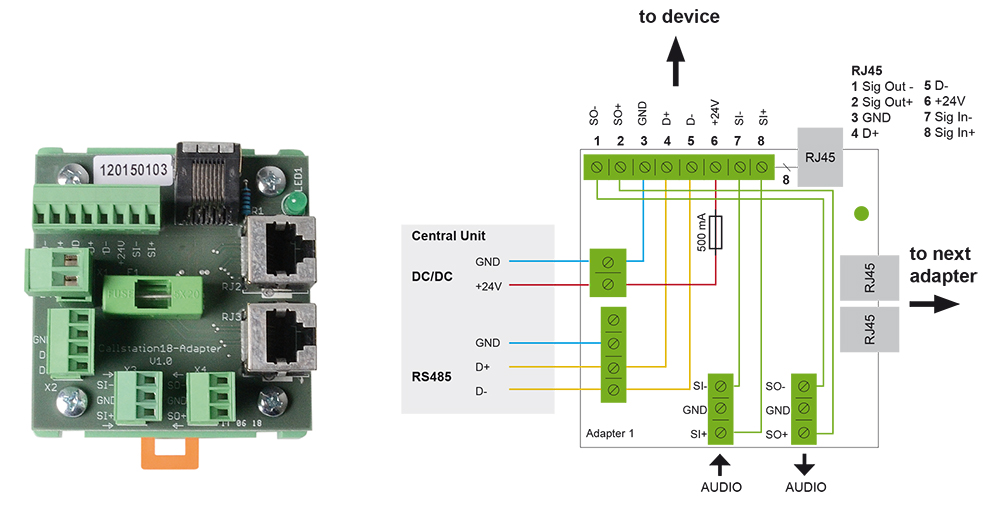

Adapter module
Specifications
 |
|
| General | |
| External power supply | switching power supply or 24 VDC (18 V < U < 32 V) |
| Current | 80-150 mA |
| Operating temperature |
-5° C - +40° C |
| Housing material |
Sheet steel housing, aluminum front panel, door with acrylic glass pane |
| Microphone | Dynamic handheld microphone with talk button, spiral cable permanently connected |
| Output level | 0 dB symmetrical (Line) |
| Colour | RAL3000 (FIRERED) |
| Protection class |
IP 44 |

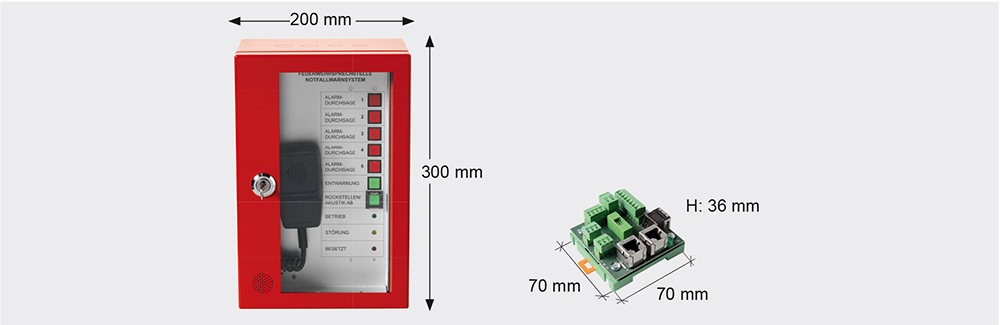

| Dimensions | 200 mm x 300 mm (B x H) / Adapter: 70 mm x 70 mm x 36 mm |
| Weight | 4.5 kg |
| Adapter construction |
„Open frame“ construction with base for 35 mm snap-on plate |
All information without guarantee. Subject to technical changes.
