ITEC GS12/1
PRELIMINARY
 |
- High-performance PA loudspeaker with 1x12”/1” neodymium components

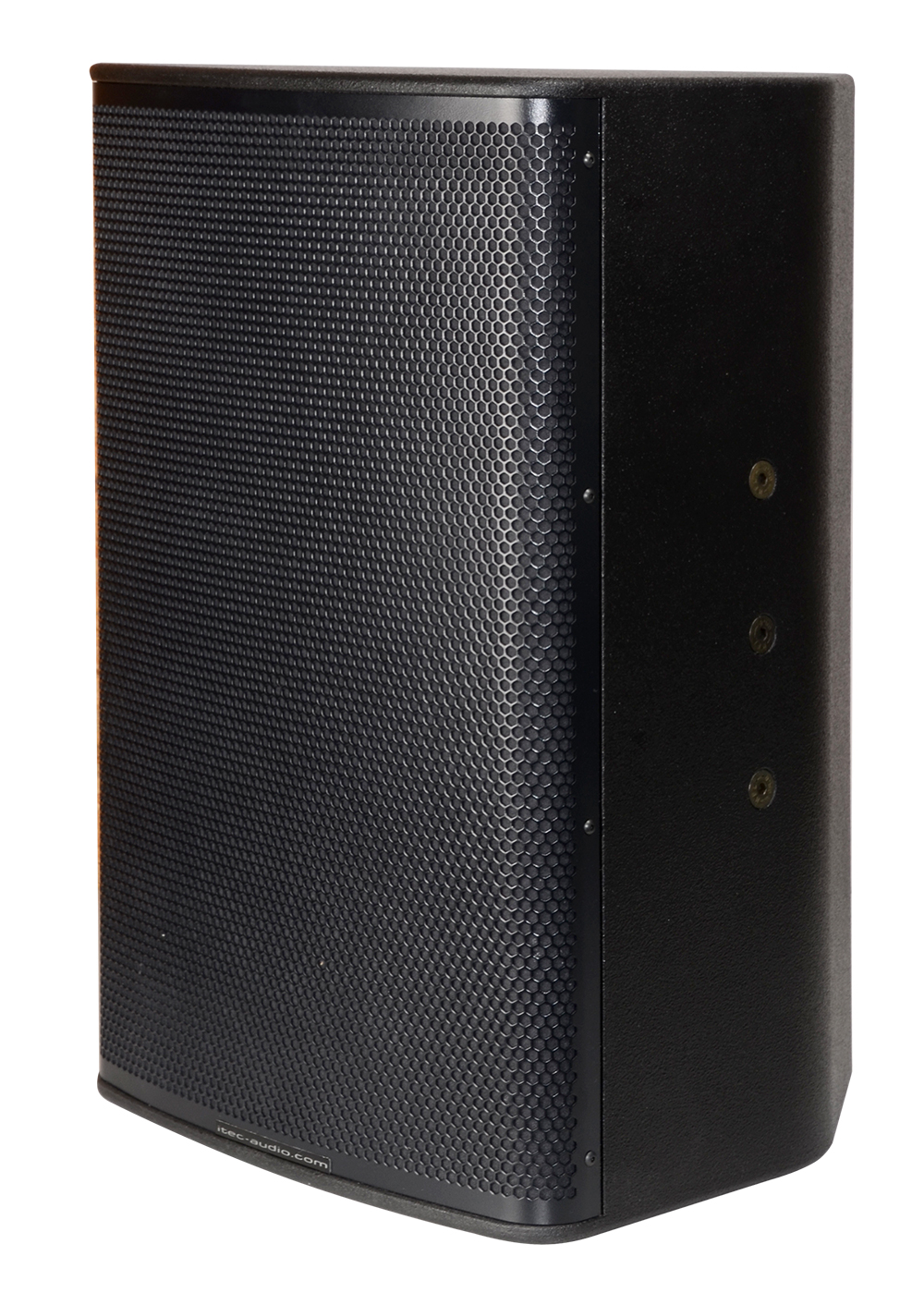

- Elegant 2-way full-range loudspeaker in a wooden housing with 1x12” neodymium low-mid speaker and 1 ”compression driver and horn
- Homogeneous radiation behavior
- Integrated crossover with passive filtering for runtime and phase optimization.
- Connection terminal 2x Speakon
- Mounting bracket, optional pan-tilt bracket
- Highly permeable, powder-coated loudspeaker cover made of galvanized steel
- Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, ball impact resistant
|
Connection Terminal
Mounting Accessories
Technical Specifications - GS12/1
| MODEL |
GS12/1 |
| Power rating |
300 W / 600 W |
| Nominal sound pressure |
93,8 dB SPL / 2,83 V / 1 m |
| Max. sound pressure |
120,5 dB SPL |

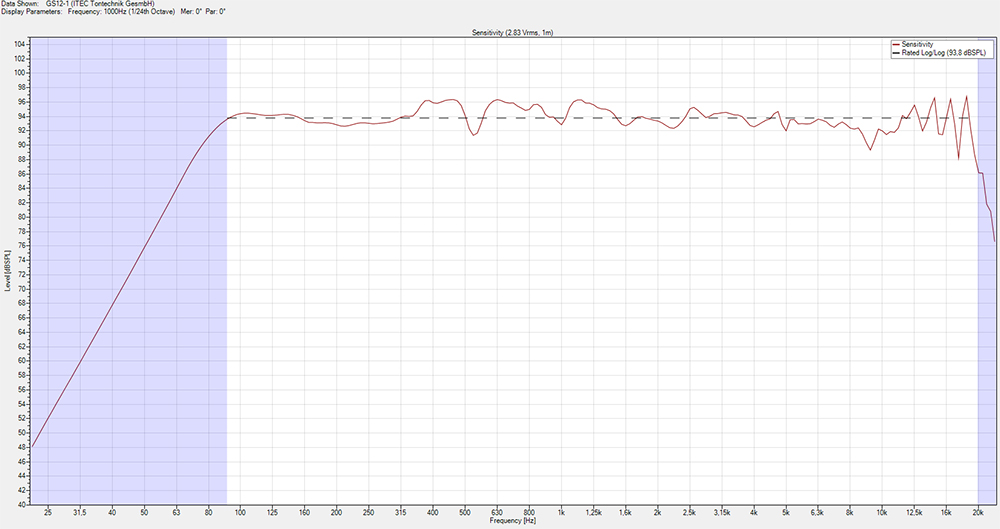

| Frequency response -6 dB |
73 Hz - 20 kHz |
| Impedance |
8 Ohm |
| Driver |
1x12 Low midrange speakers (2.56“ VC),
1“ Compression-Driver, Opening angle: horizontal 70° / vertical 90°, horn rotatable
|
| Dimensions (W x H x D) |
360 mm x 570 mm x 360 mm |
| Weight |
ca. 15,5 kg |
| Housing |
Birch plywood |
| Coloring |
Polyurea coating in black or white |
 |
All Information without garantee. Subject to technical changes.
