ITEC GS5/1





  • High performance PA speaker system
  • Elegant 2-way full-range loudspeaker, in a wooden housing with 1x5 ”neodymium low-mid speaker and 1.1 ”neodymium dome tweeter
  • Homogeneous radiation behavior
  • Integrated crossover with passive fi ltering for runtime and phase optimization.
  • Connection terminal 2x Speakon
  • Mounting bracket, optional pan-tilt bracket
  • Highly permeable, powder-coated loudspeaker cover made of galvanized steel
  • Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, ball impact resistant

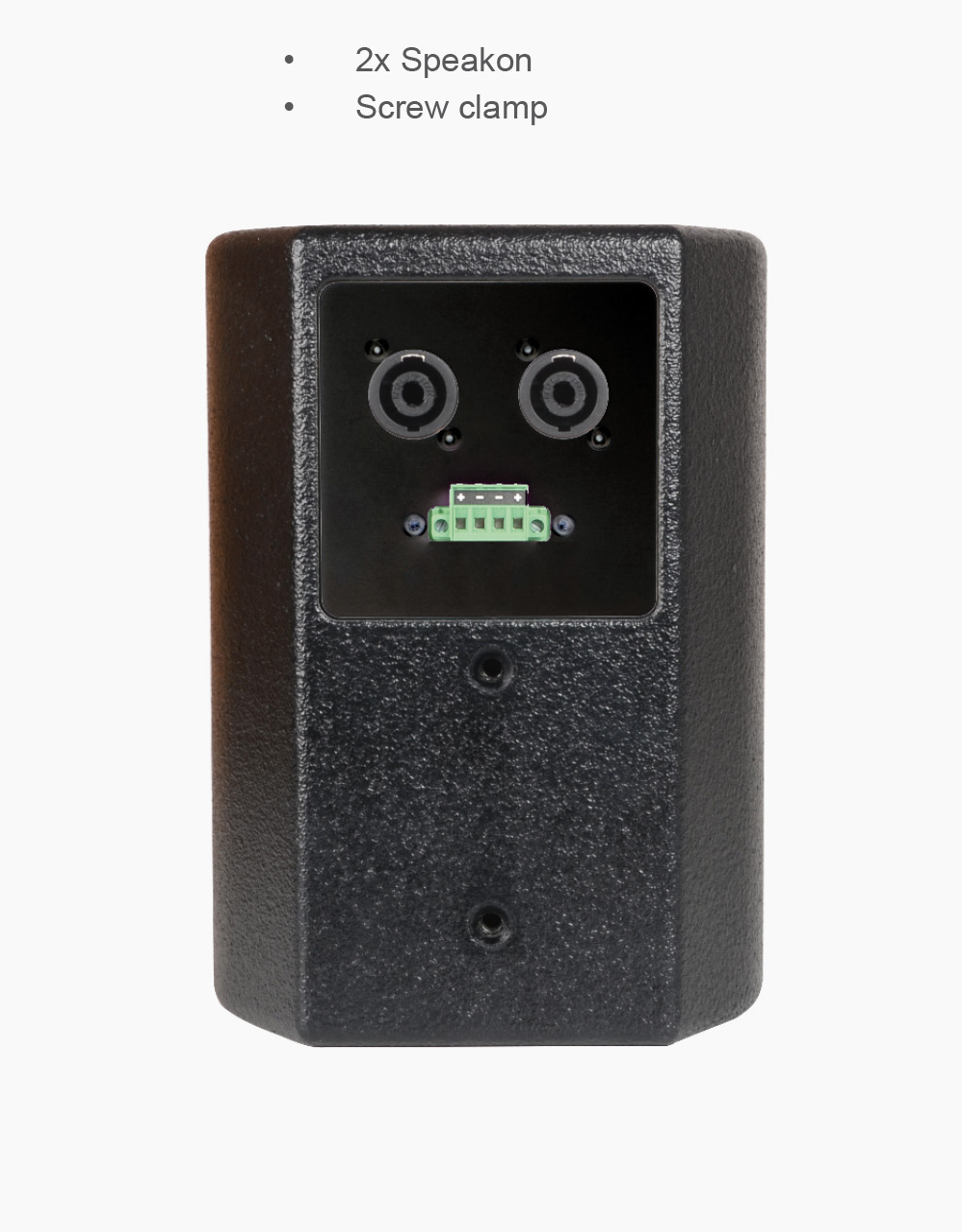

Connection Terminal

GS5/1

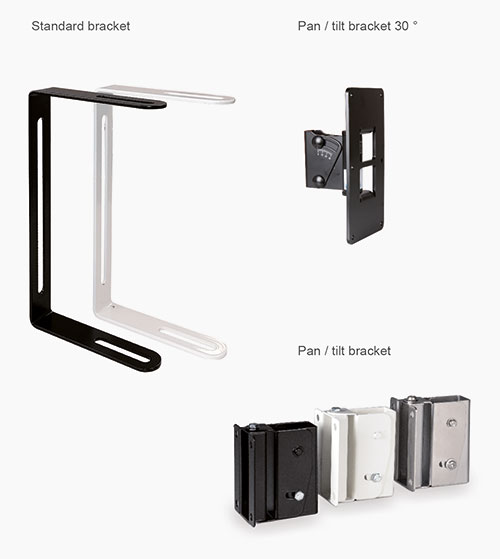

Mounting Accessories

GS5/1

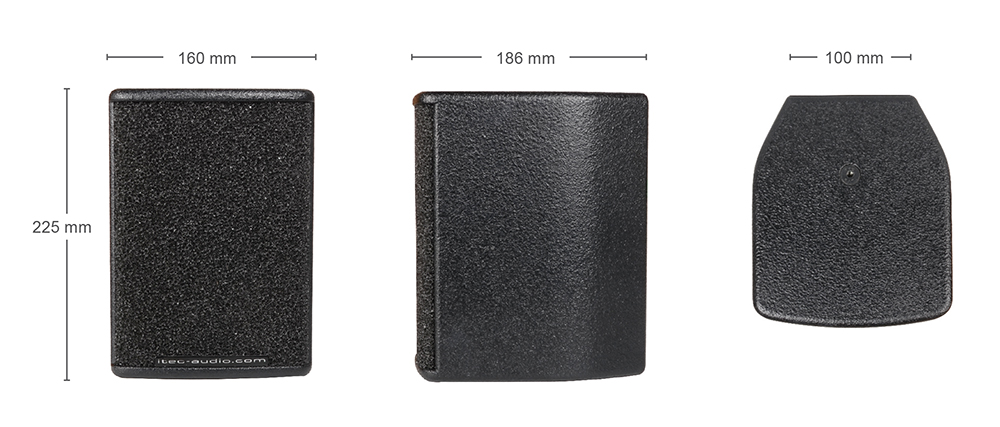

Dimensions

GS5/1

Specifications - GS5/1

MODEL GS5/1
Power rating 130 W / 260 W
Nominal sound pressure 84,2 dB SPL / 2,83 V / 1 m
Max. sound pressure
 107,9 dB SPL

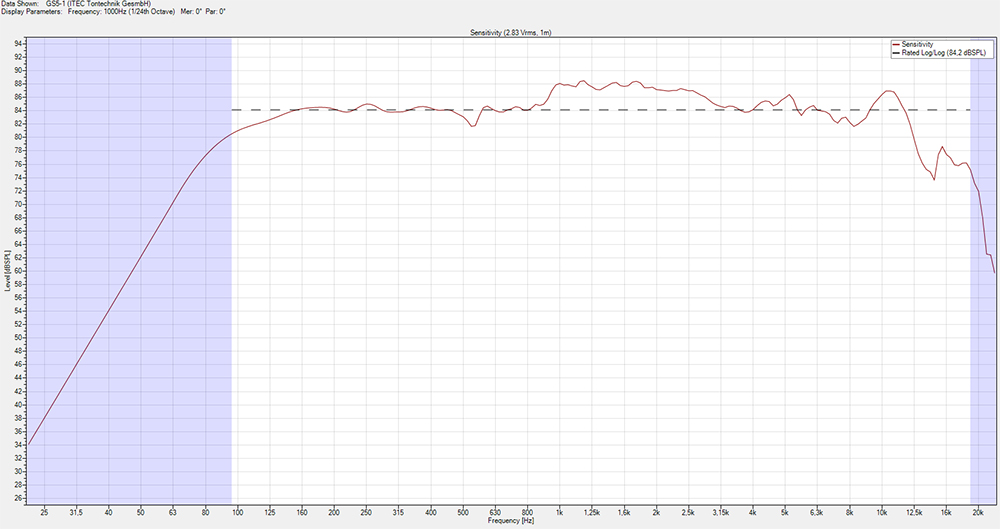

Frequency response -6 dB 88 Hz - 19 kHz
Impedance 8 Ohm
Driver 1x5 Low midrange speakers (1,5“ VC),
1,1“ dome tweeter, Angle: Horizontal 180 ° / 120 ° Vertical
Dimensions (W x H x D) 160 mm x 225 mm x 186 mm
Weight approx. 3,6 kg
Housing Birch plywood
Coloring Coloring Polyurea coating in black or white
GS5/1


All Information without garantee. Subject to technical changes.
