ITEC GS5/8
- High-performance PA loudspeaker
- Elegant 2-way full-range loudspeaker in a wooden housing with 8x5” low-mid speaker and 1.4 ”compression driver with horn 120 ° x 60 °, horn rotatable through 180 °
- Homogeneous radiation behavior
- Integrated crossover with passive filtering for runtime and phase optimization.
- Connection terminal 2x Speakon
- Optional: pan-tilt bracket
- Highly permeable, powder-coated loudspeaker cover made of galvanized steel
- Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, ball impact resistant

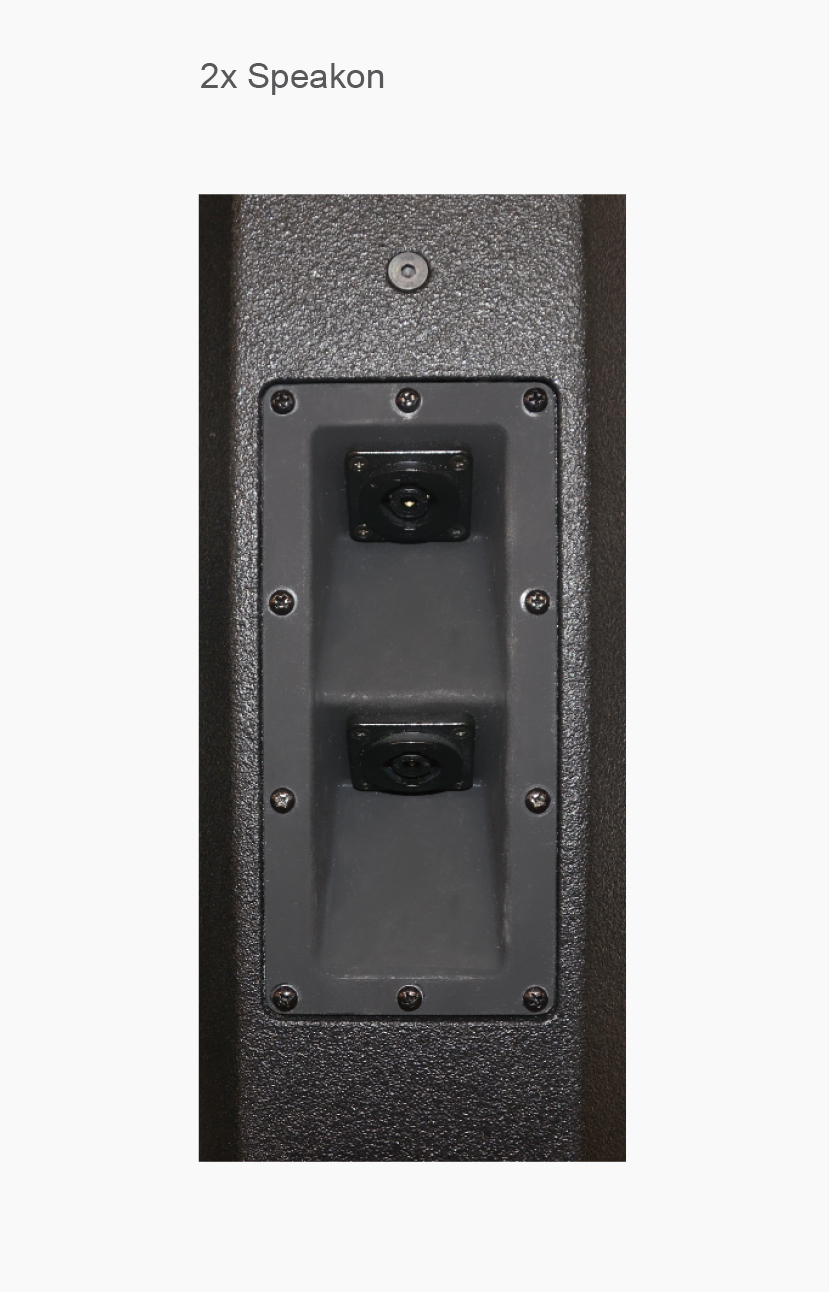

Connection Terminal

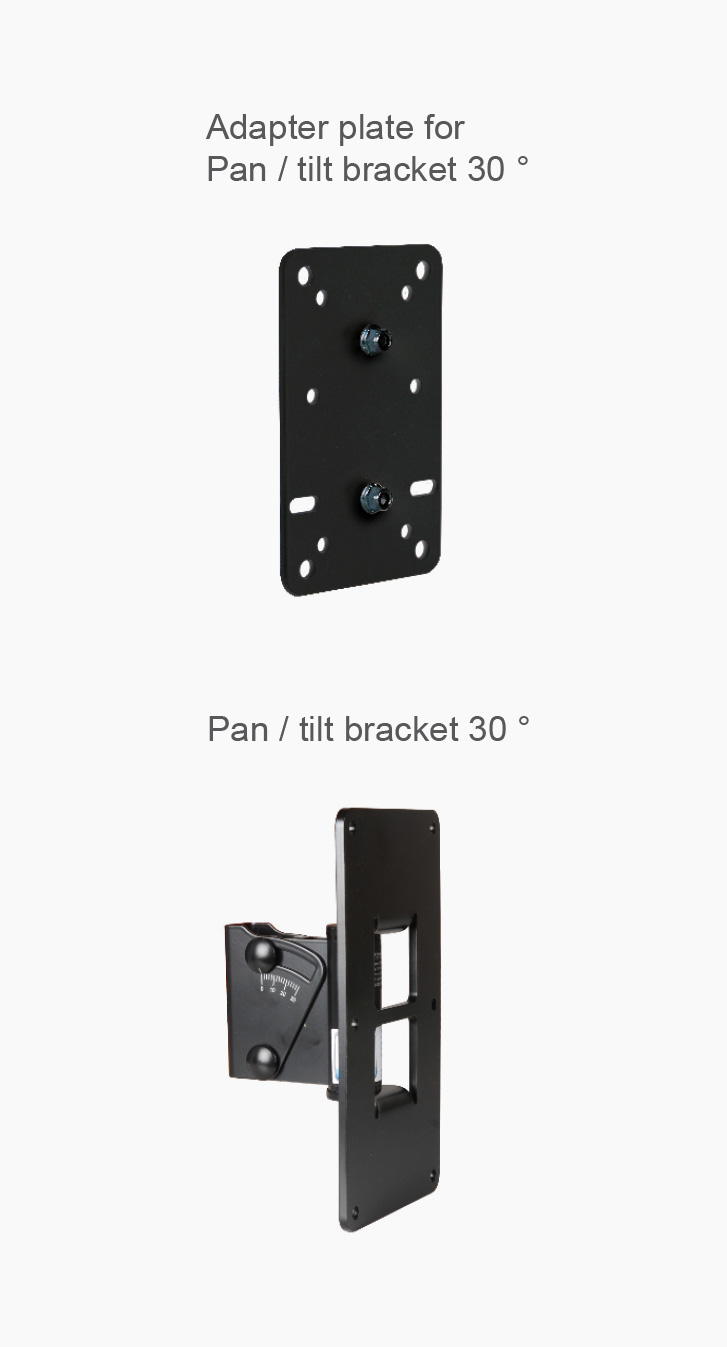

Mounting Accessories

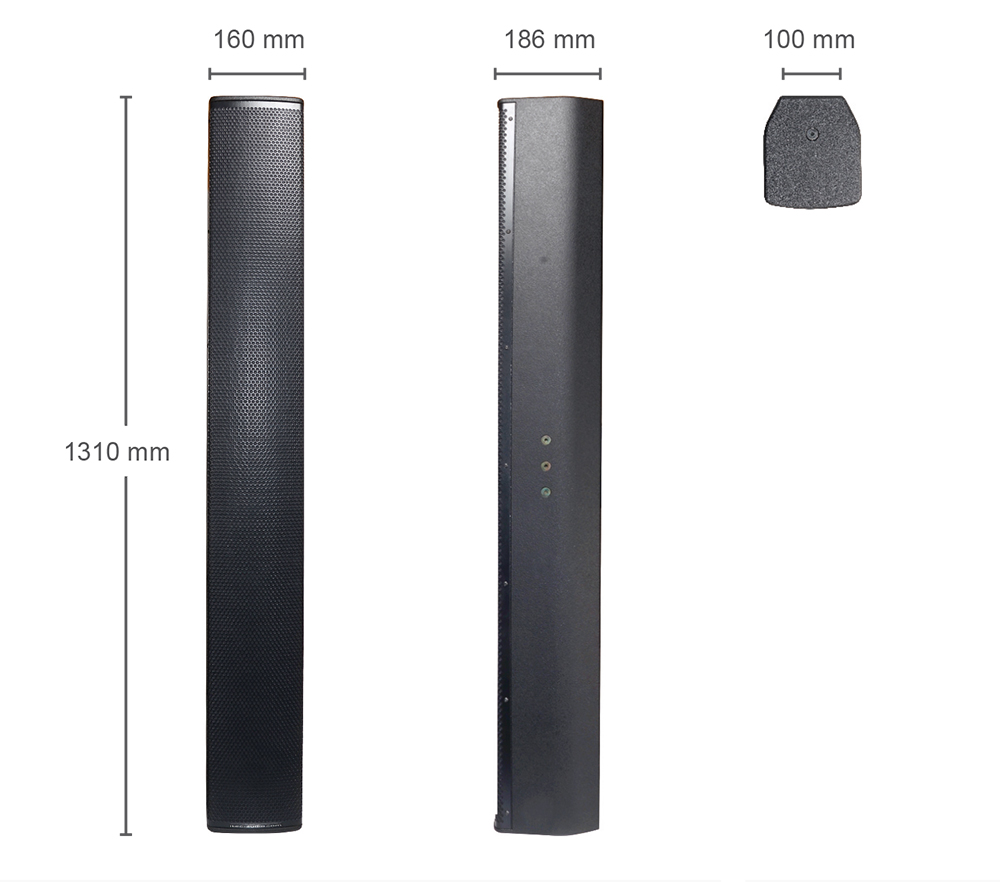

Dimensions
Specifications - GS5/8
MODEL | GS5/8 |
Rower rating |
1040 W / 2080 W |
Nominal sound pressure |
95,3 dB SPL / 2,83 V / 1 m |
Max. sound pressure |
125 dB SPL |

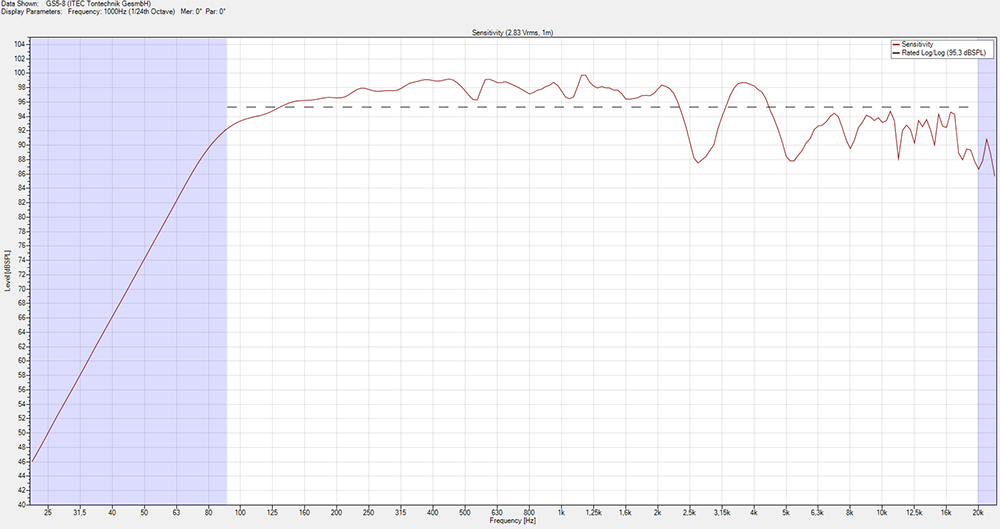

Frequency response -6 dB | 80 Hz - 20 kHz |
Impedance | 4 Ohm |
Driver | 8x5 Low midrange speakers (1.5“ VC) 1.4“ Compression-Driver, Horn 120° x 60°/rotatable 180° |
Dimensions (W x H x D) | 160 mm x 1310 mm x 186 mm |
Weight | approx. 18 kg |
Housing | Birch plywood |
Coloring | Polyurea coating in black or white |
All Information without garantee. Subject to technical changes.
