ITEC GS6/1

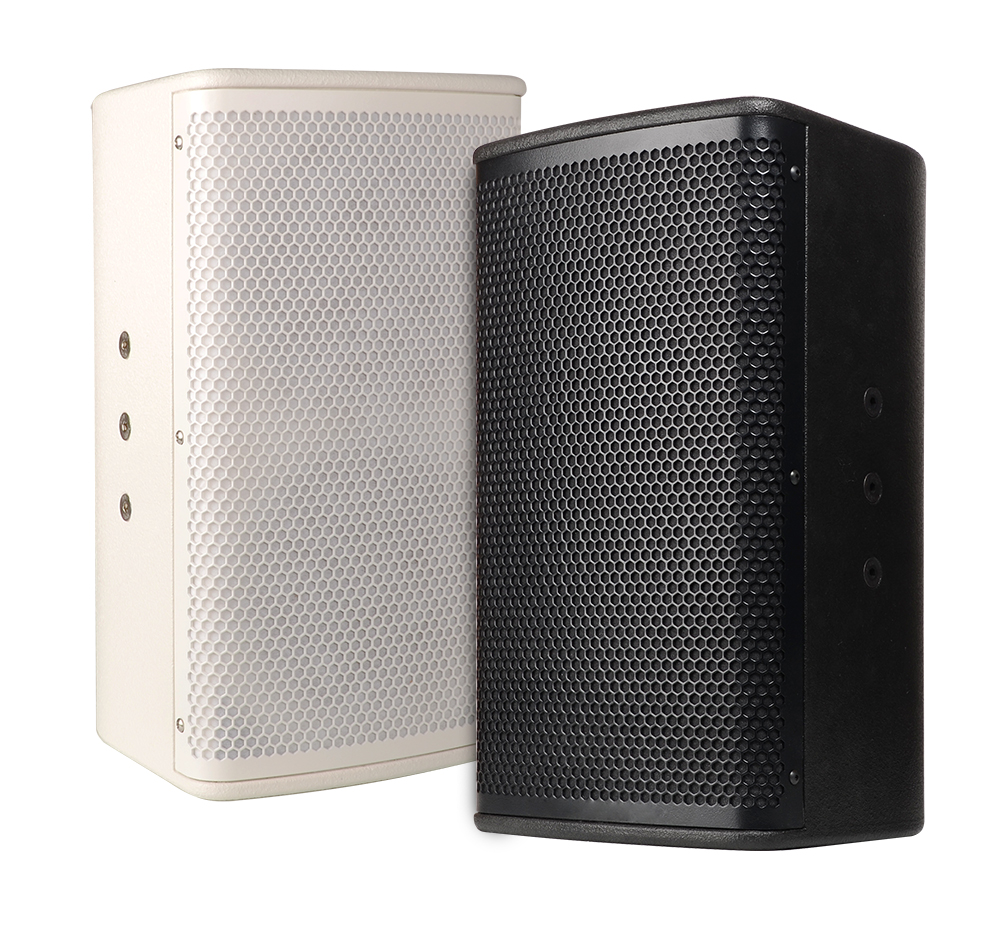

High-performance PA loudspeaker Elegant 2-way full-range loudspeaker in a wooden housing with 1x6 ”neodymium low-mid speaker and 1 ”compression driver and horn Homogeneous radiation behavior Integrated crossover with passive filtering for runtime and phase optimization. Connection terminal 2x Speakon Optional: mounting bracket, swivel bracket, pan-tilt bracket Highly permeable, powder-coated loudspeaker cover made of galvanized steel Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, ball impact resistant

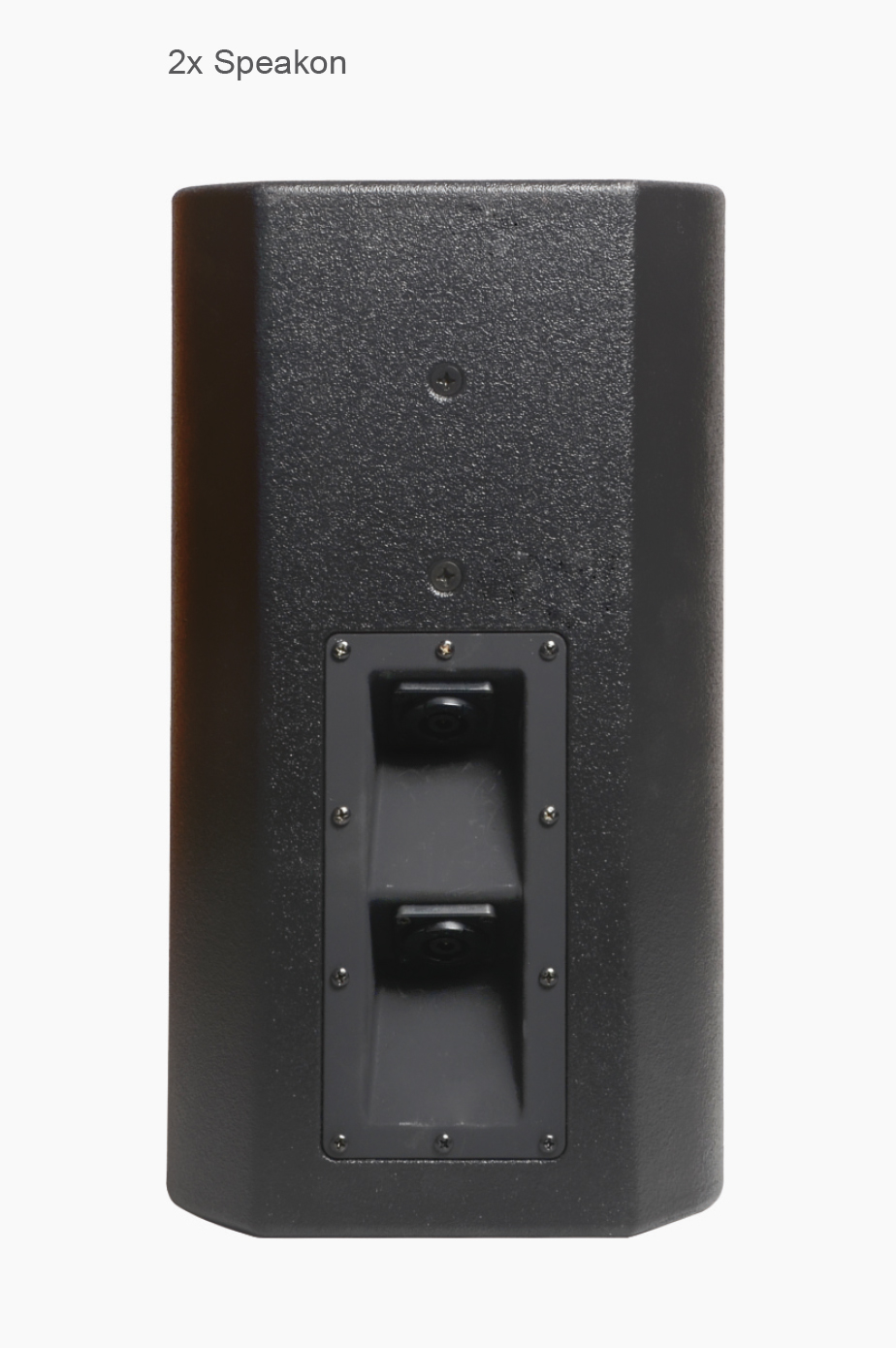

Connection Terminal

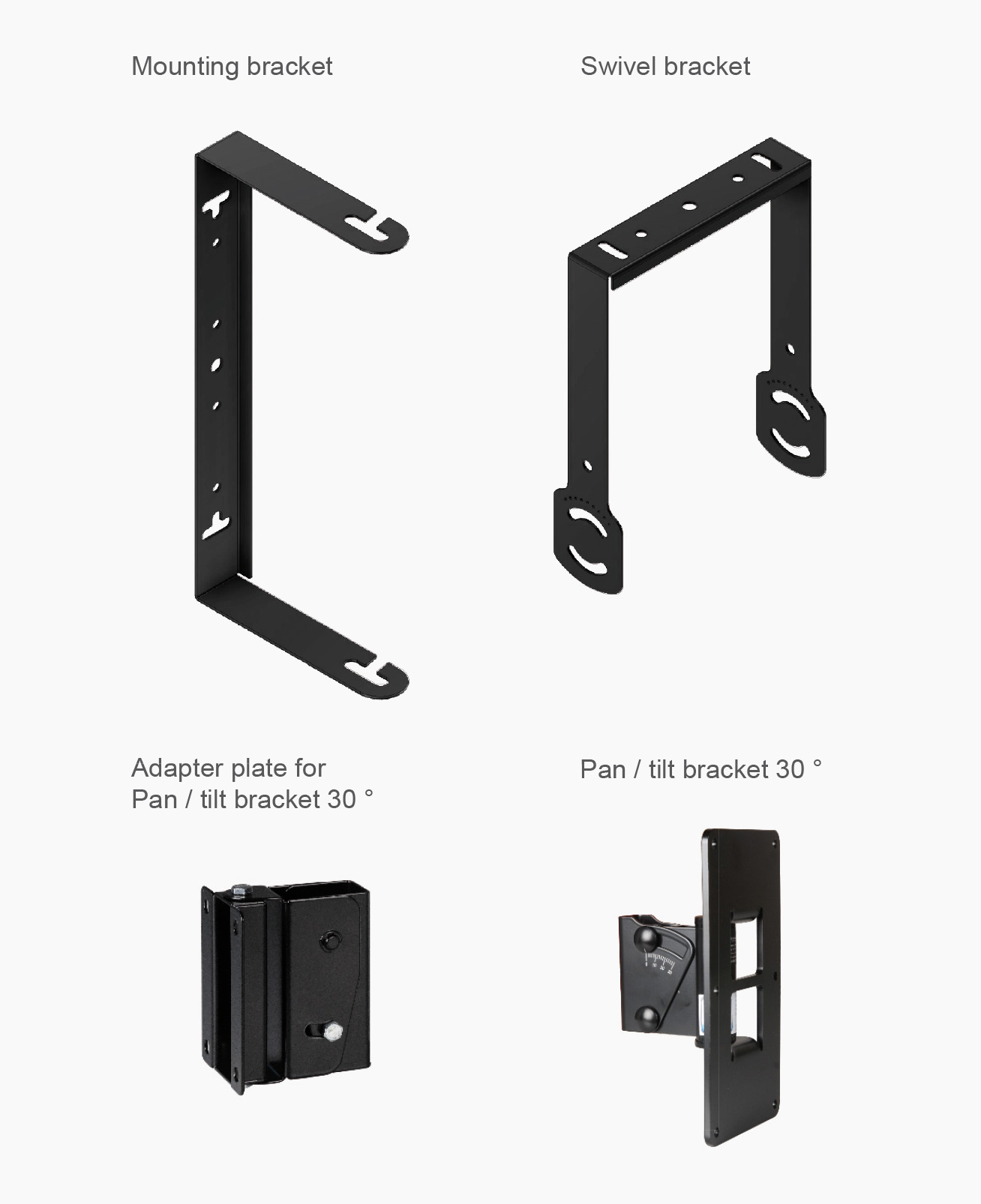

Mounting Accessories

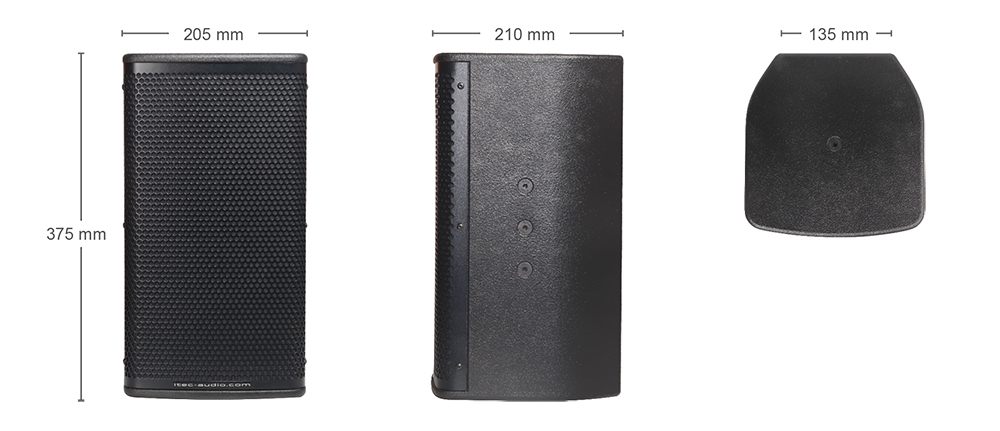

Dimensions

Technical Specifications - GS6/1

MODEL	GS6/1
Power rating	200 W / 400 W
Nominal sound pressure	86,9 dB SPL / 2,83 V / 1 m
Max. sound pressure	111,4 dB SPL

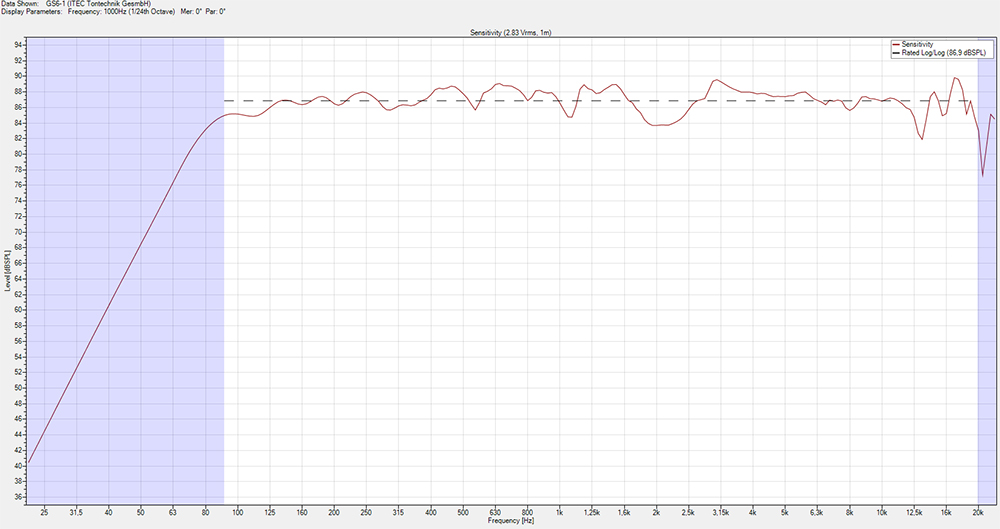

Frequency response -6 dB	75 Hz - 20 kHz
Impedance	8 Ohm
Driver	1x6 Low midrange speakers (2“ VC), 1“ Compression-Driver, Opening angle: horizontal 60 ° / vertical 90 °, horn rotatable
Dimensions (W x H x D)	205 mm x 375 mm x 210 mm
Weight	approx. 6 kg
Housing	Birch plywood
Coloring	Coloring Polyurea coating in black or white

All Information without garantee. Subject to technical changes.
