O-Relay-Expander
The ITECNET O-Relay-Expander is an interface extension for ITECNET components. Each module is connected via ITEC BUS technology with the network component (Spider...).
Features
- Fully compatible with ITECNET components

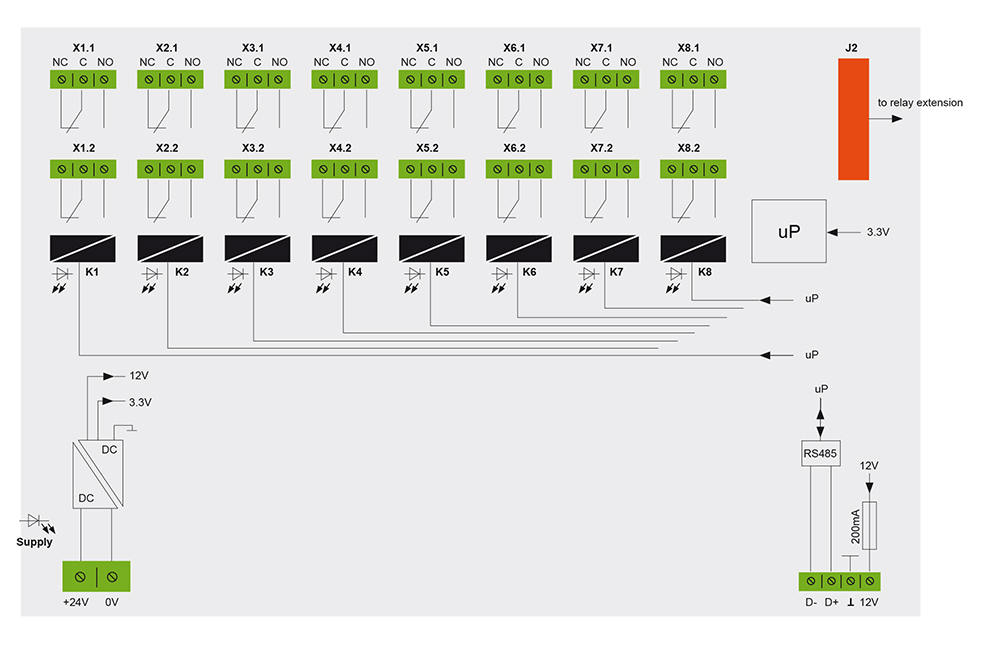

- 8 additional potential-free relay outputs
- The relay outputs are 2-pole change over switches (DPDT)

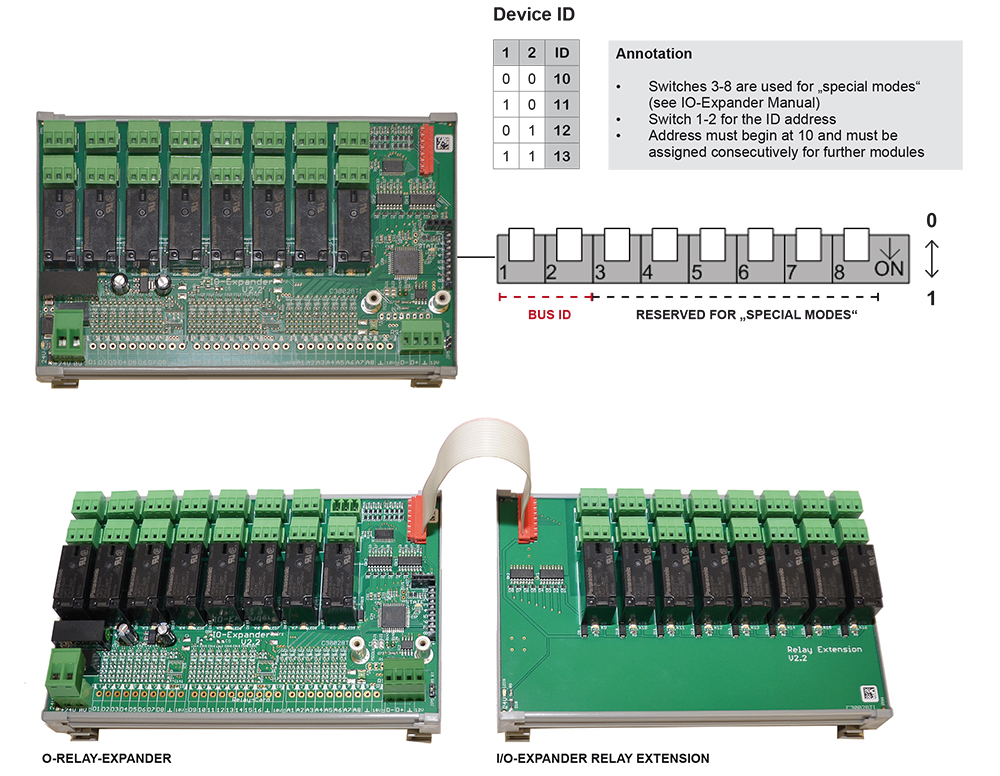

- The optional relay extension board enables 8 more additional relay outputs
Specifications
| General | |
| External power supply | 24 VDC (18 V < U < 36V) |
| Power consumption | 50 mA @24 V (200 mA max., if 8 Relais „ON“) |
| Operating temperature | -5° C - +40° C |
| Dimensions (L x W x H) | 162 mm x 106 mm x 47 mm |
| Weight | 282 g |
| Mounting | Top hat rail DIN/EN60715 35 mm |
| SERIAL INTERFACES | RS485 |
| 4 module per Bus via RS485 | |
| RELAY OUTPUTS | 8 2-pole change over contacts (DPDT) |
| Max. external voltage | 100 VAC (30V DC) |
| Max. current per output | 5 A |
| Isolation voltage | 10 kV |
All information without guarantee. Subject to technical changes.
