Panel Control Unit_12
CONTROL UNIT FOR ITECNET SYSTEMS
- Very simple and convenient operation
- 12 rotary potentiometers for analog control
- 3 buttons for digital control
- 2 display LEDs (operating status and data traffic)
- Free configuration via ITEC Netdesign
- Standard ITEC BUS connection to ITECNET system components
- 12-24 V supply
- 19“ design, 1 HE for installation in standard racks
- Installation option for Audio Line In/Out

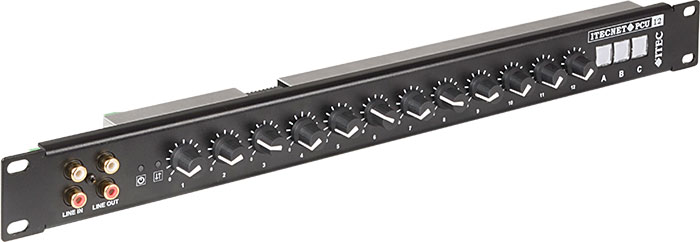

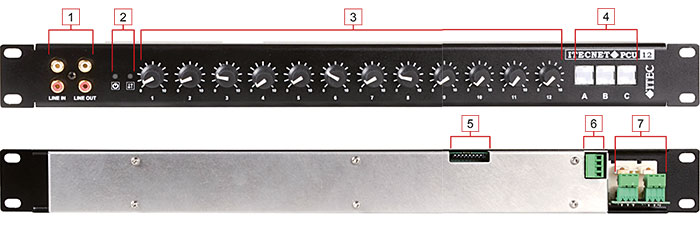

1. Audio In/Out
The stereo RCA sockets on the front panel are connected to the terminal blocks on the back via resistors 7 (left and right channels are mixed together).
A simple and professional connection to other devices can be made using a standard RCA cable.
2. Display-LEDs
The two LEDs on the front indicate the following states:
3. Potentiometer for volume control
A total of twelve potentiometers are available for volume control. Each potentiometer can be freely confi gured and assigned to an audio in- or output
4. Push button with LED
There are three illuminated push buttons available, which can be freely configured via logical inputs and outputs using the ITEC Netdesign tool. These can be used, for example, to switch configurations. Common switching options include: „room empty“, „normal“ and „full“.
5. DIP switch
The BUS ID is set using the DIP switch on the back.
Selecting the BUS-ID:
6. Terminal block supply + RS485 with ITEC BUS protocol

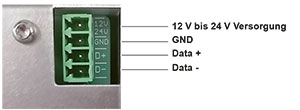

The device is connected to a power supply (12 V to 24 V) on the fourpin plug-in terminal block and to the central unit (e.g. Spider88) via RS 485 (D+, D-).
7. Terminal blocks Line IN/OUT

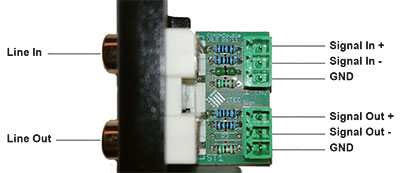

The terminal blocks are connected to the respective audio input or output of the respective control unit.
Specifications
 |
|
| Design | Flush installation in 19“ / 1 RU front panel with protective |
| Power supply | 24 VDC (18 V < U < 32 V) on plug-in terminal block |
| Current consupmtion | 10 mA @ 24 V |
| Operating temperature | -5° C - +40° C |

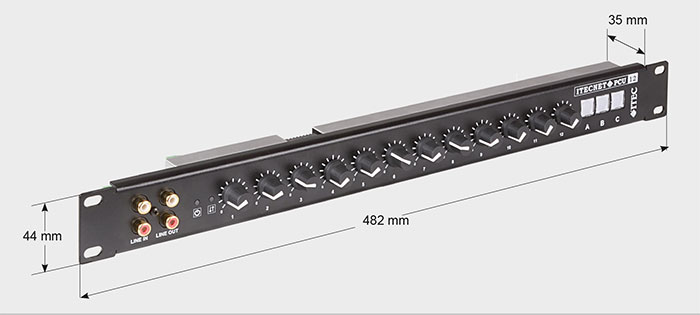

| Dimensions | 482 mm x 44 mm x 48 mm (W x H x D), 19“ / 1 RU |
| Weight | 0.35 kg |
| Interface | RS485, 19200 Baud default |
All information without guarantee. Subject to technical changes.
