ITEC GS5/4




  • High-performance PA loudspeaker
  • Elegant 2-way full-range loudspeaker in a wooden housing with 4x5 ”low-mid speaker and 1.4 ”compression driver with horn 120 ° x 60 °, horn rotatable through 180 °
  • Homogeneous radiation behavior
  • Integrated crossover with passive filtering for runtime and phase optimization.
  • Connection terminal 2x Speakon
  • Optional: swivel bracket, pan-tilt bracket
  • Highly permeable, powder-coated loudspeaker cover made of galvanized steel
  • Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, oated erproof, ball impact resistant

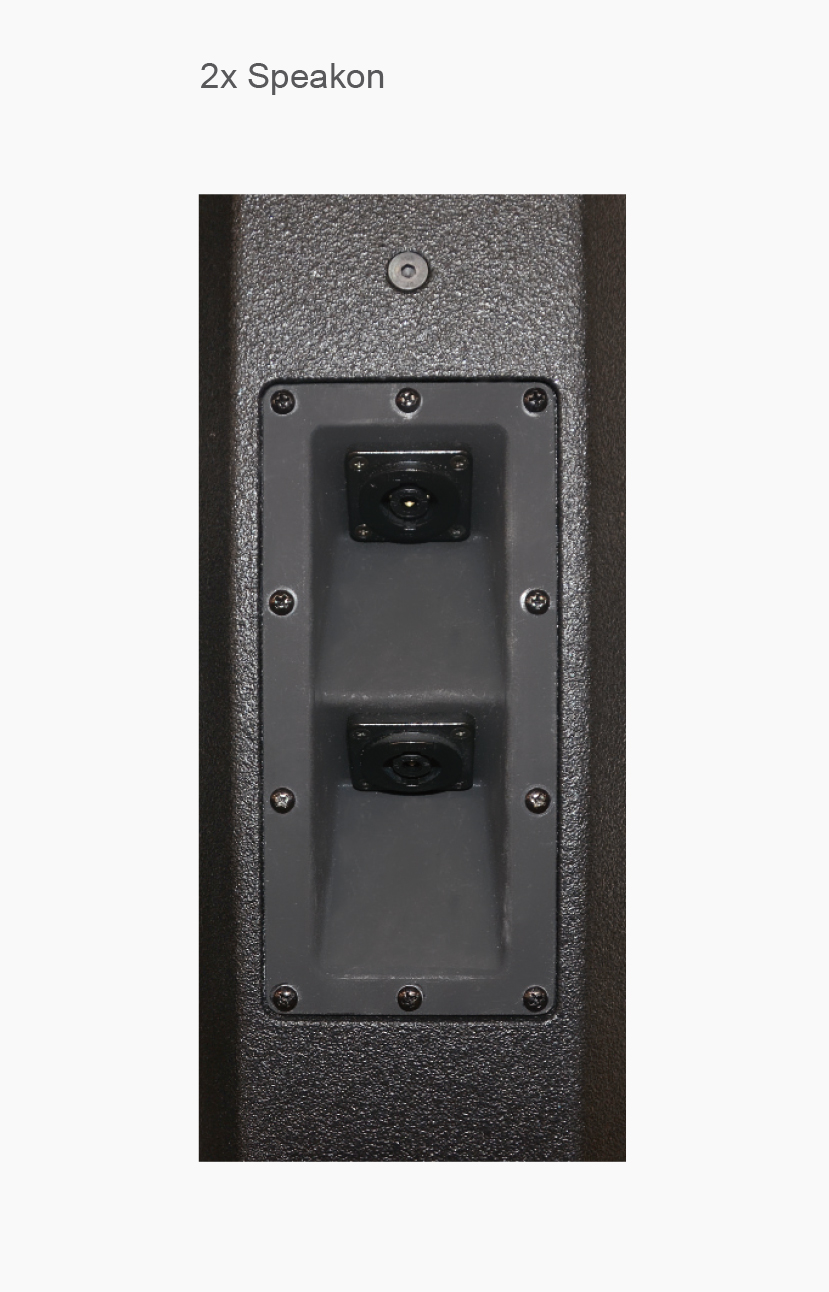

Connection Terminal

GS5/4

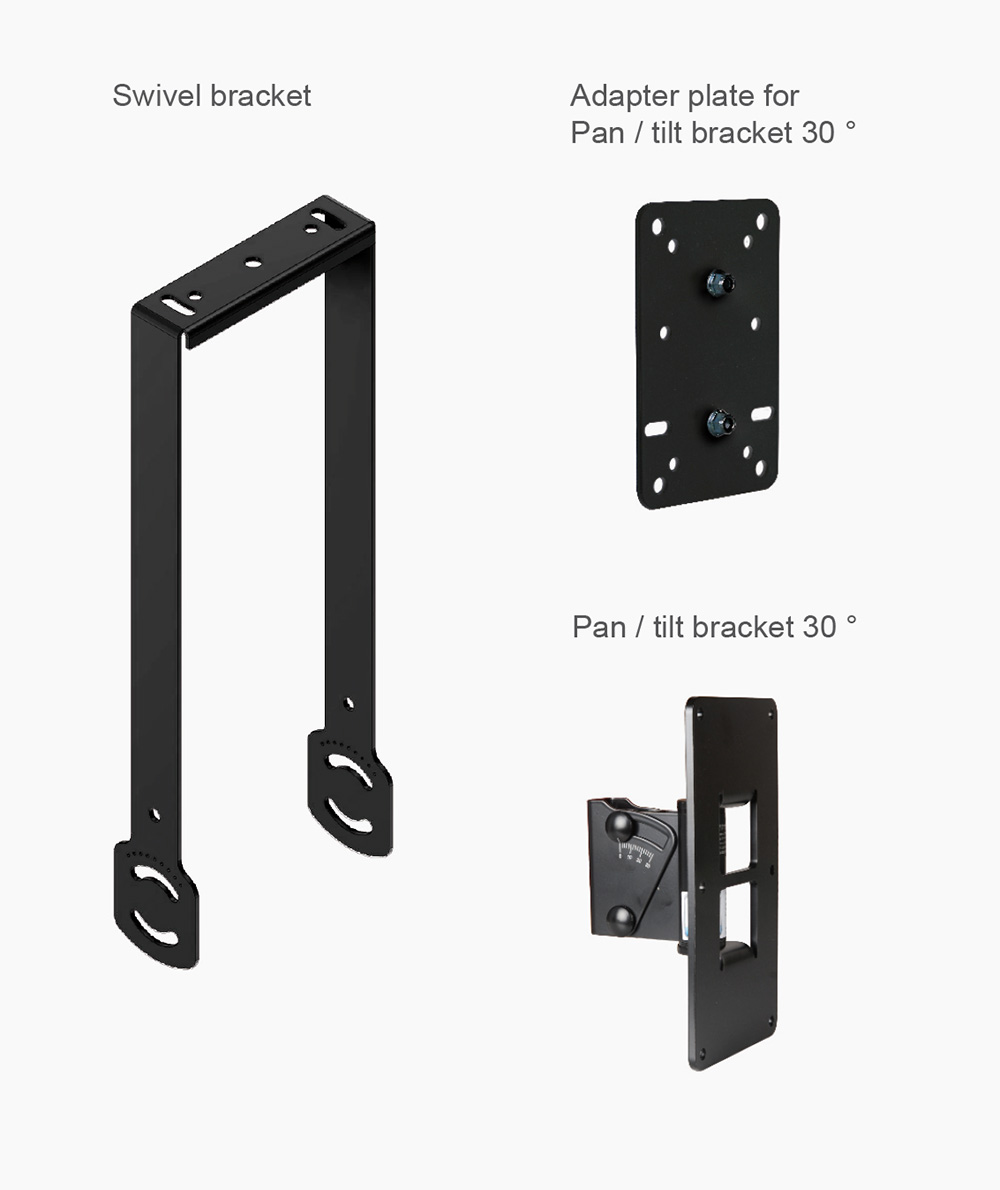

Mounting Accessories

GS5/4

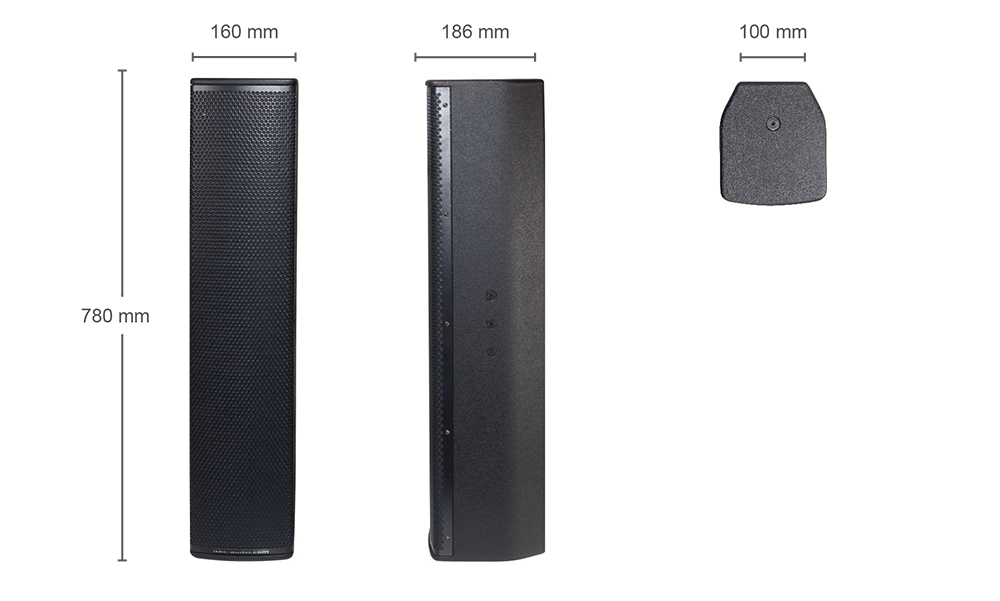

Dimensions

GS5/4

Technical Specifications - GS5/4

MODEL GS5/4
Power rating 520 W / 1040 W
Nominal sound pressure 90,4 dB SPL / 2,83 V / 1 m
Max. sound pressure 120,4 dB SPL

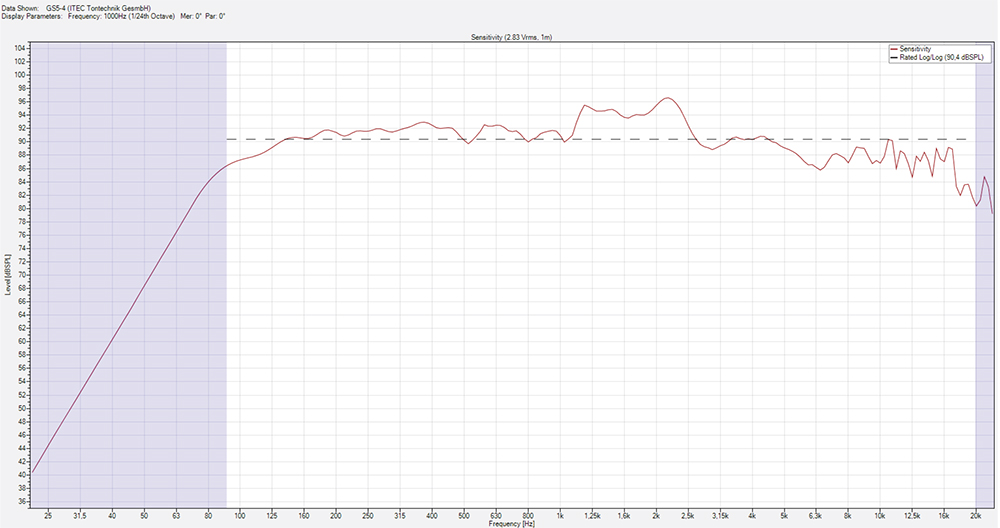

Frequency response -6 dB 80 Hz - 20 kHz
Impedance 8 Ohm
Driver 4x5 Low midrange speakers (1,5“ VC),
1,4“ Compression-Driver,
Horn 120° x 60°/rotatable 180°
Dimensions (W x H x D) 160 mm x 780 mm x 186 mm
Weight approx. 11 kg
Housing Birch plywood
Coloring Polyurea coating in black or white
GS5/4


All Information without garantee. Subject to technical changes.
