ITEC GS5/4
- High-performance PA loudspeaker
- Elegant 2-way full-range loudspeaker in a wooden housing with 4x5 ”low-mid speaker and 1.4 ”compression driver with horn 120 ° x 60 °, horn rotatable through 180 °
- Homogeneous radiation behavior
- Integrated crossover with passive filtering for runtime and phase optimization.
- Connection terminal 2x Speakon
- Optional: swivel bracket, pan-tilt bracket
- Highly permeable, powder-coated loudspeaker cover made of galvanized steel
- Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, oated erproof, ball impact resistant

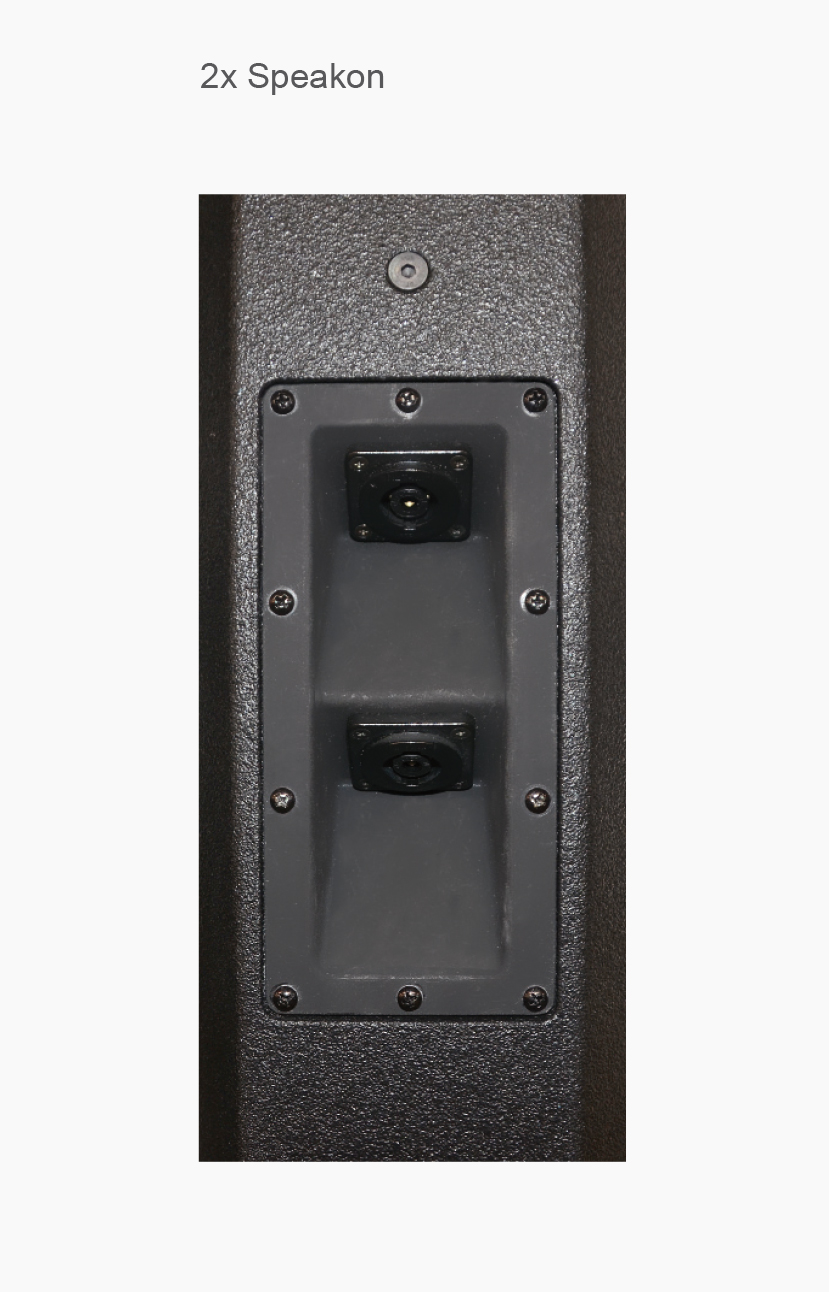

Connection Terminal

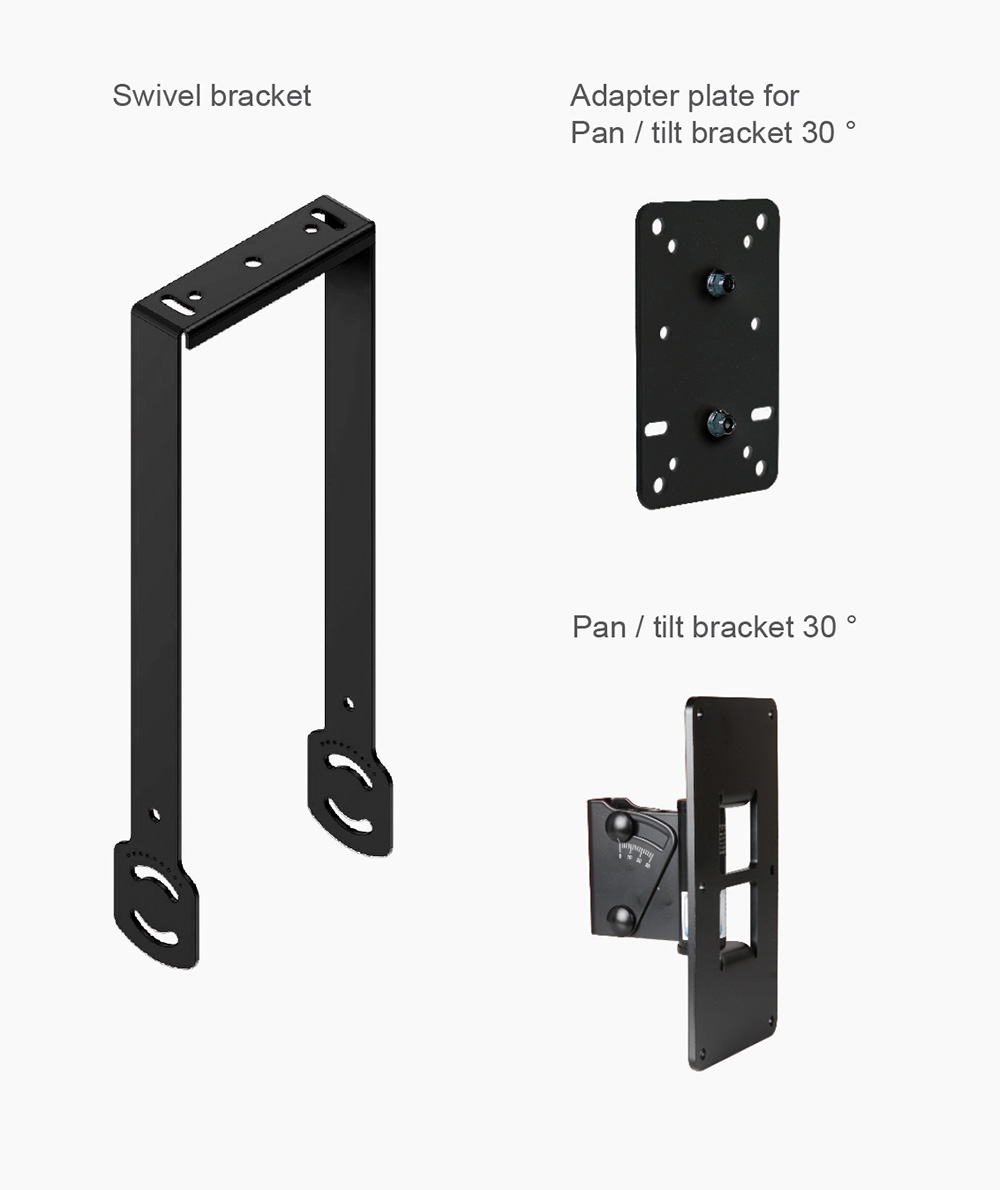

Mounting Accessories

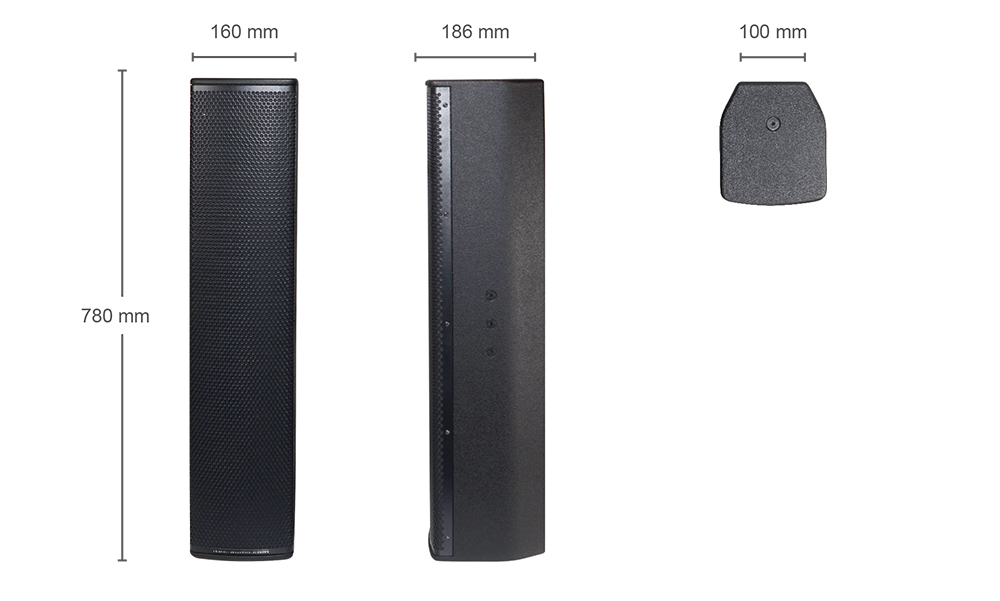

Dimensions
Technical Specifications - GS5/4
| MODEL | GS5/4 |
| Power rating | 520 W / 1040 W |
| Nominal sound pressure | 90,4 dB SPL / 2,83 V / 1 m |
| Max. sound pressure | 120,4 dB SPL |

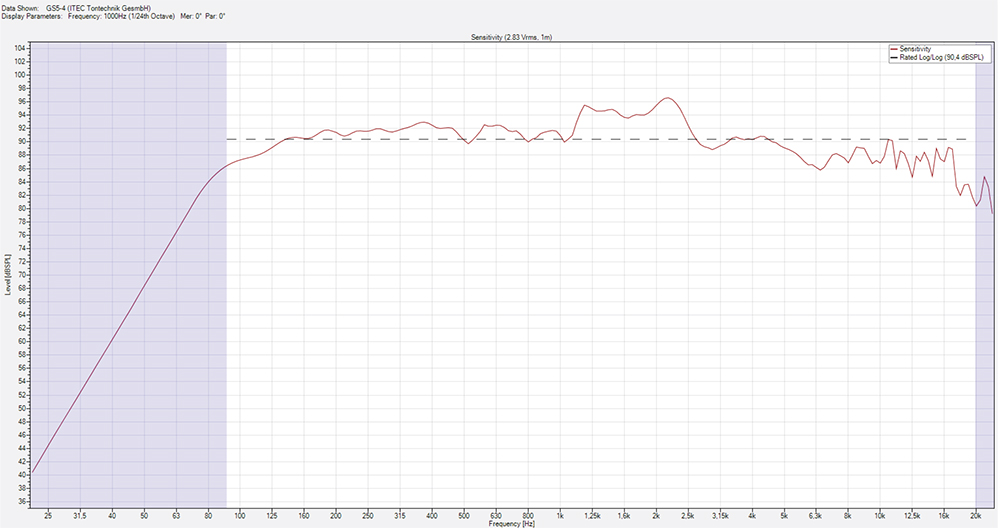

| Frequency response -6 dB | 80 Hz - 20 kHz |
| Impedance | 8 Ohm |
| Driver | 4x5 Low midrange speakers (1,5“ VC), 1,4“ Compression-Driver, Horn 120° x 60°/rotatable 180° |
| Dimensions (W x H x D) | 160 mm x 780 mm x 186 mm |
| Weight | approx. 11 kg |
| Housing | Birch plywood |
| Coloring | Polyurea coating in black or white |
 |
|
All Information without garantee. Subject to technical changes.
