ITEC Receiver 6000 UHF
Frequency 739 - 752 MHz and Frequency 823 - 832 MHz

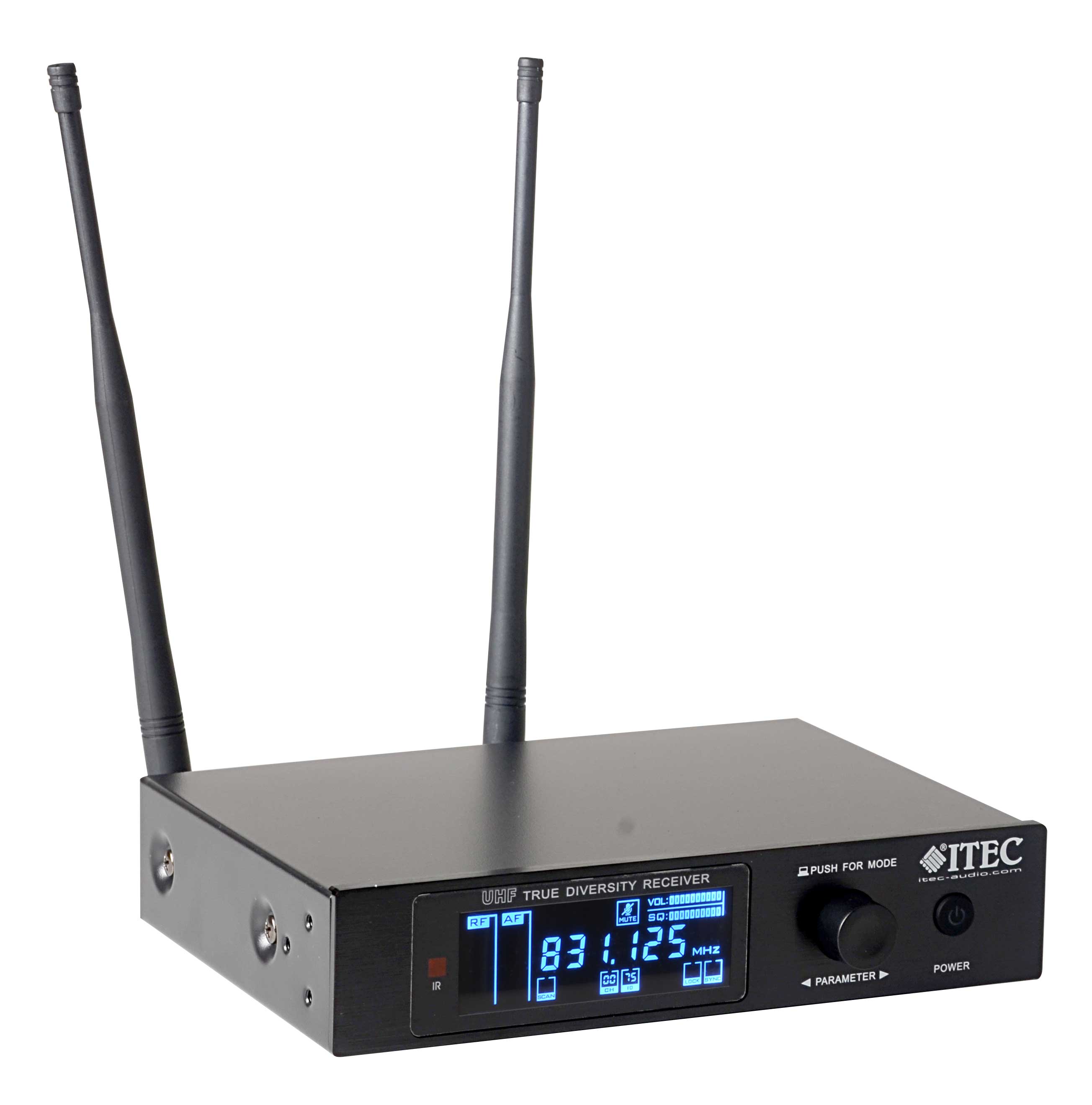

Diversity stationary receiver ITEC SDR-6000

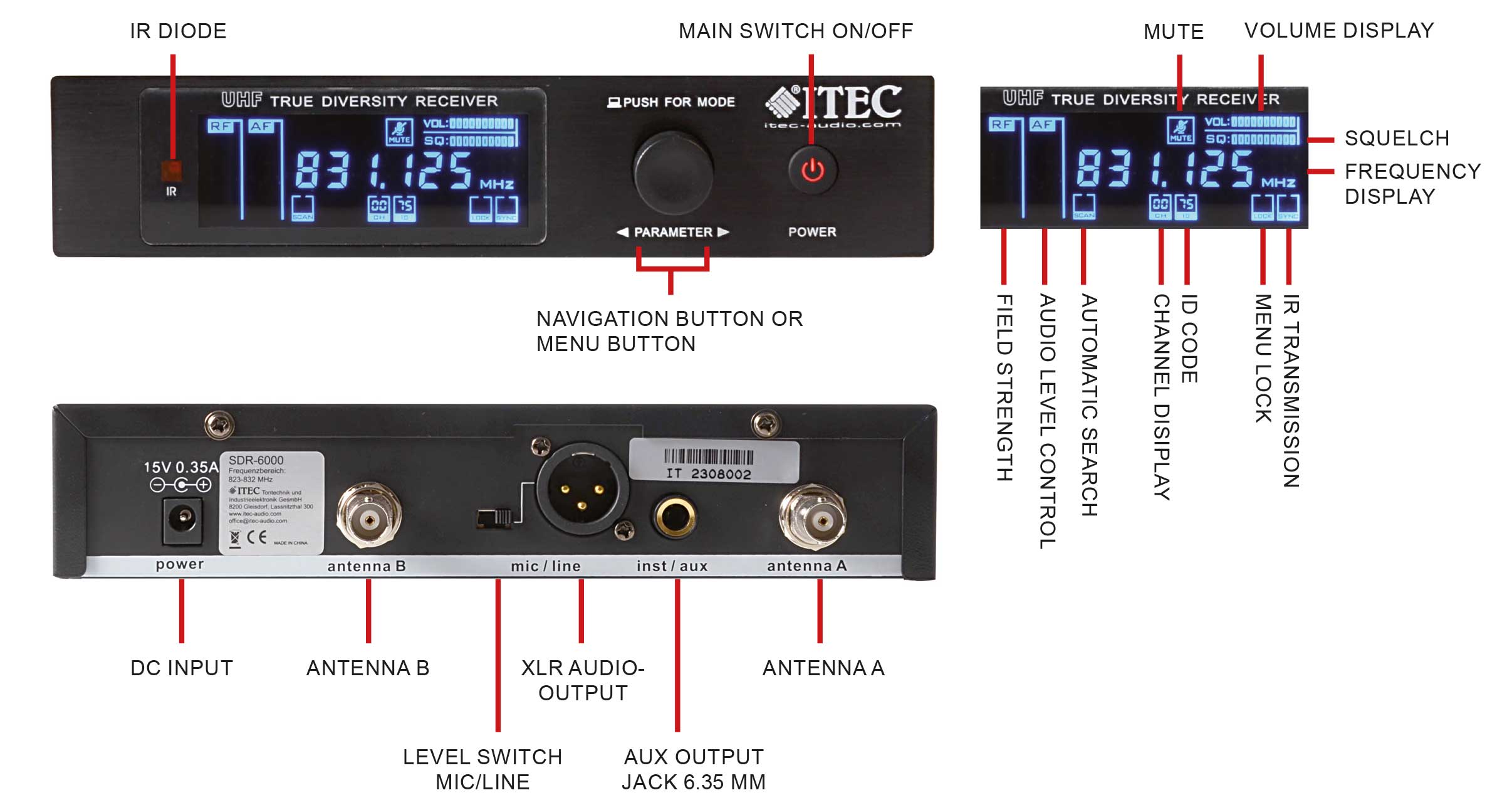

Front and back

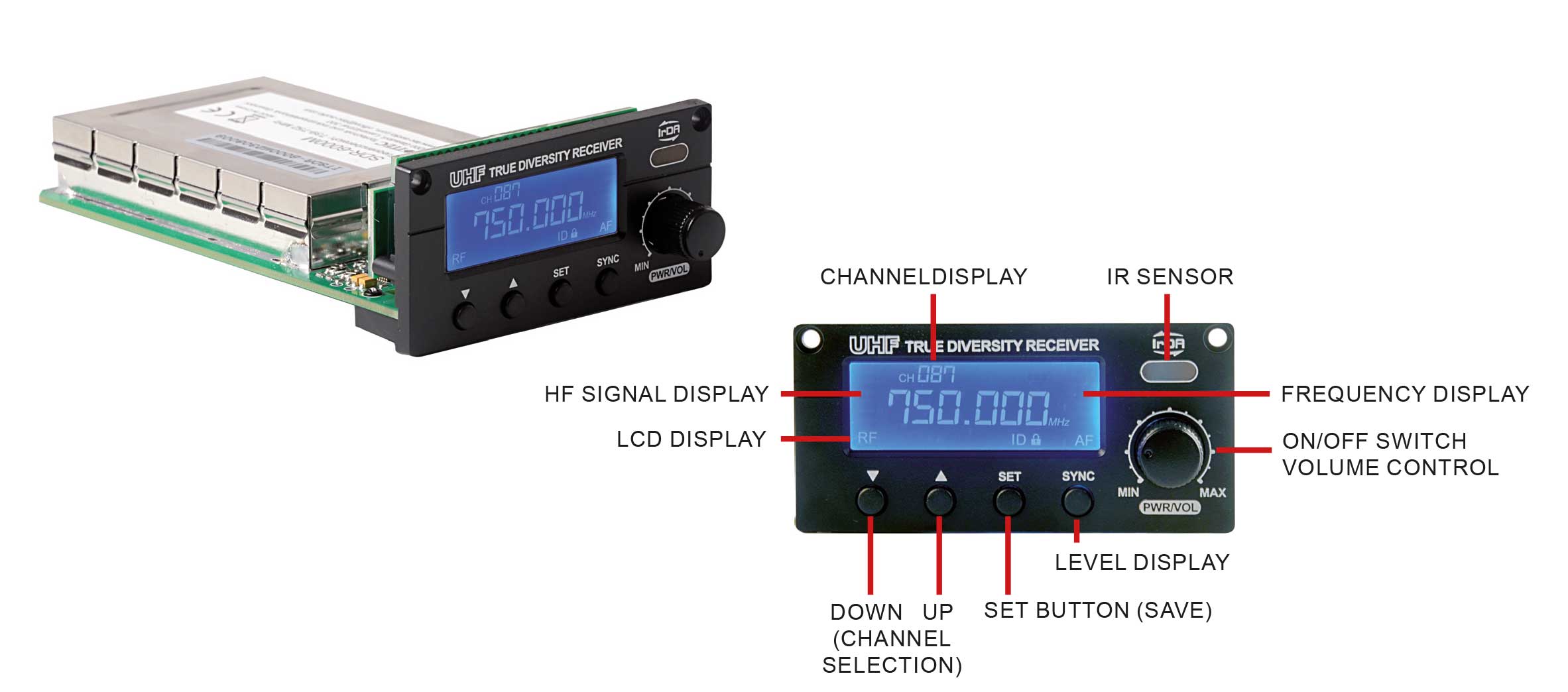

Diversity module receiver ITEC SDR-6000M
Accessories
19“ Mounting set FB-71-A
for 1 piece SDR-6000
19“ Mounting set FB-72-A
for 2 pieces SDR-6000
Active spherical antenna (UHF)
with built-in reception booster. Can be used with transmitters
and receivers (470 MHz-1000 MHz), including bracket.
Directional antenna active (UHF)
with built-in reception booster. Can be used with transmitters
and receivers (470 MHz-1000 MHz), including bracket.
Specifications
| GENERAL FEATURES | |
| Frequency Range | 739~752MHz ±50kHz/75kHz / 823-832MHz |
| Maximum Frequency Deviaton | ± 40 kHz |
| Frequency Response | 40 Hz - 18 kHz |
| Harmonic Distortion | < 0,5 % |
| SDR-6000 DIVERSITY-RECEIVER; 1/2 19" | |
| Power Supply | 12 V DC (PSU 230 V AC / 12 V DC included) |
| Dimensions, weight | 210 x 44 x 180 mm (L x H x D), 82 g |
| SDR-6000M DIVERSITY-MODULE-RECEIVER | |
| Power Supply | 12 V DC , power consumption approx. 220 mA |
| Dimensions, weight | 70 x 35 x 148 mm (L x H x D), 110 g |
All information without guarantee. Subject to technical changes.
