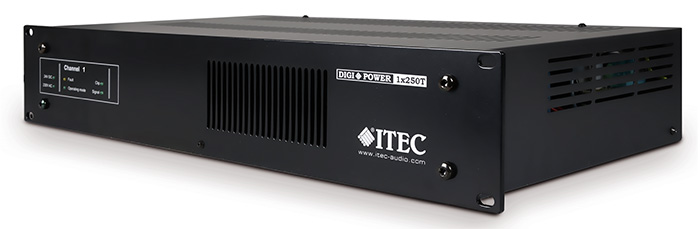

ITEC DigiPower 1 x 250T
100V digital amplifier - durable and safe for professional ELA installations. The very reliable electronics design ensures transmission performance without compromise and a trouble-free operation for years. Hardly waste heat, over 90% efficiency thanks to digital signal processing and a maintenance-free cooling system without fans are further features.
- Maintenance-free cooling system without a fan
- Digital signal processing
- Only 272 mm installation depth
- Only 10 W power consumption in standby mode
- Low power consumption in emergency mode
Level control located on the back. Display of all operating conditions by LEDs.
The cooling system operates without a fan, so
- no pollution
- no consequential costs
- no moving parts
- no interference noise
Features
- LED indicators for signal and operating conditions
- Monitoring contacts for battery
- Monitoring contacts for the output amplifier
- Low installation depth of only 272 mm
- All feed lines with plug-in, screw terminals
- Balanced Inputs
- Automatic standby mode
- Protection against open circuit, short circuit, over temperature, DC
- 230V AC and 24V DC power supply
- Switching on delay
Block diagram
Specifications
 |
|
| TYPE | 1x250T |
| Output Power | 1 x 250 W |
| THD + N | < 0,29 % |
| Input sensitivity | 1V eff |
| Input Impedance | 10 kOhm |
| Signal-to-Noise Ratio @ 1kHz, 250W, Vol 0,5 | 85 dB |
| Output transformer | 50 V / 100 V |
| Current consumption 230VAC sinus 100V @ 40 Ohms | 1,7A |
| Current consumption 24VDC sinus 100V @ 40 Ohms | 15A |
| Current consumption Standby 230VAC | 0,045A |
| Current consumption Standby 24VDC | 0,32A |
| Power consumption in standby mode (230V) | 10 W |
| Power consumption at full load (230V) | 380 W |
| Inputs | symmetrical on screw terminal |
| Supply voltage | 230 V AC / 24 V DC |
| Operating temperature | -5° bis +40° C |
| Protection circuits | DC, short circuit, resonance, over temperature |
| Frequency response | 90 Hz ÷ 21 kHz / -3 dB |

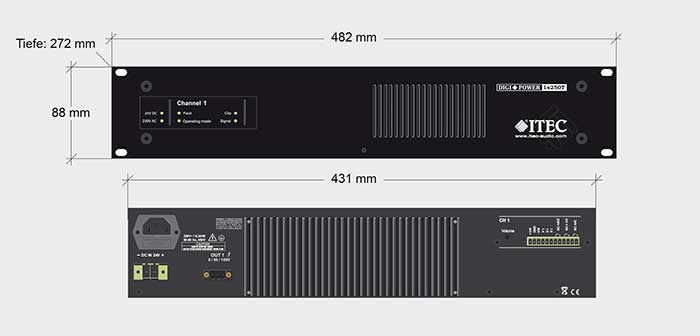

| Dimensions | 482 x 88 x 272 mm (B x H x T), 19 / 2U |
| Weight | 11,5 kg |
No responsibility is taken for the correctness of this information - Specifications subject to change.
