ITEC DigiPower 2 x 250T

DigiPower

100V digital amplifier - durable and safe for professional ELA installations. The very reliable electronics design ensures transmission performance without compromise and a trouble-free operation for years. Hardly waste heat, over 90% efficiency thanks to digital signal processing and a maintenance-free cooling system without fans are further features

  • Maintenance-free cooling system without fan
  • Monitoring contact
  • Digital signal processing
  • Only 272 mm installation depth
  • Only 10 W power consumption in standby mode
  • Rechargeable battery for emergency operations

Level controls for each channel located on the back. Display of all operating conditions by LEDs.

The cooling system operates without a fan, so:

  • no pollution
  • no consequential costs
  • no moving parts

Features

  • LED indicators for signal and operating conditions
  • Monitoring contacts for battery
  • Monitoring contacts for the output amplifier
  • 2 channels in a 19-inch, 2 units of height case
  • Low installation depth of only 272 mm
  • All feed lines with plug-in, screw terminals
  • Balanced Inputs
  • Automatic standby mode
  • Protection against open circuit, short circuit, over temperature, DC
  • 230V AC and 24V DC power supply
  • Switching on delay

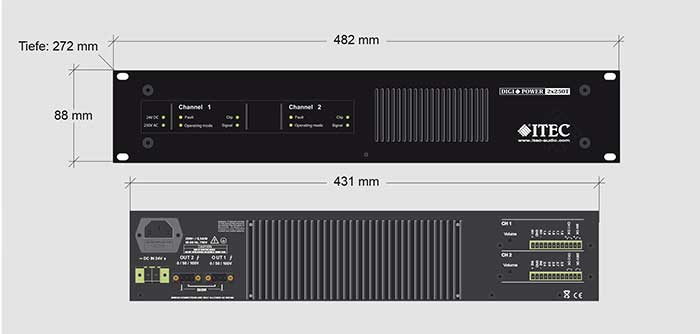

DigiPower 2x250T

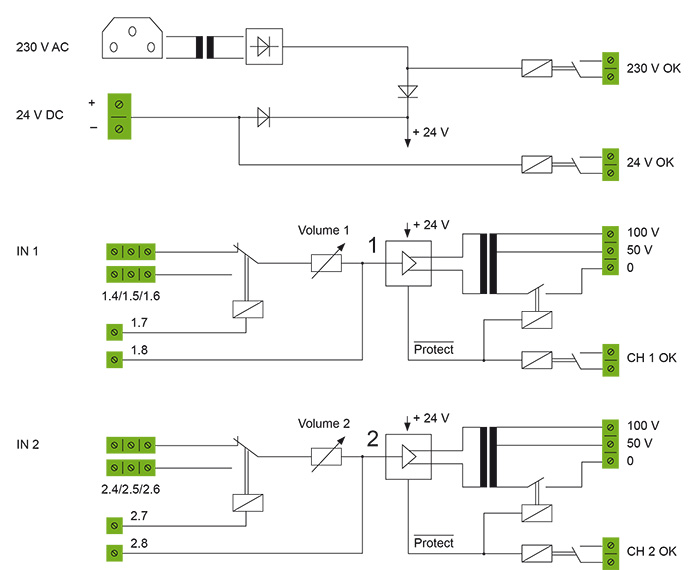

Block Diagram

DigiPower

Specifications

DigiPower 2x250T
TYPE 2x250T
Output Power 2 x 250 W bzw. 1 x 500 W
THD + N < 0,29 %
Input sensitivity 1V eff
Input Impedance 10 kOhm
Signal-to-Noise Ratio @ 1kHz, 250W, Vol 0,5 85 dB
Output transformer 2 x 50 V / 100 V
Current consumption 230VAC sinus 100V @ 40 Ohms 4A
Current consumption 24VDC sinus 100V @ 40 Ohms 26A
Current consumption Standby 230VAC 0,058A
Current consumption Standby 24VDC 0,43A
Power consumption in standby mode (230V) 13 W
Power consumption at full load (230V) 920 W
Inputs symmetrical on screw terminal
Supply voltage 230 V AC / 24 V DC
Operating temperature -5° bis +40° C
Protection circuits DC, short circuit, resonance, over temperature
Frequency response 90 Hz ÷ 21 kHz / -3 dB
Dimensions 482 x 88 x 272 mm (B x H x T), 19“ / 2U
Weight 16,5 kg

 No responsibility is taken for the correctness of this information - Specifications subject to change.
