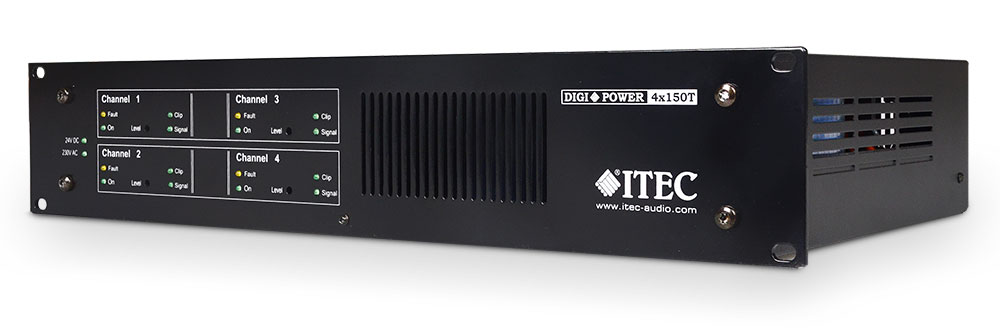

ITEC DigiPower 4 x 150T
100V digital amplifier - durable and safe for professional ELA installations. The very reliable electronics design ensures transmission performance without compromise and a trouble-free operation for years. Hardly waste heat, over 90% efficiency thanks to digital signal processing and a maintenance-free cooling system without fans are further features.
- Maintenance-free cooling system without fan
- Monitoring contacts
- Digital signal processing
- Only 302 mm installation depth
- Only 10 W power consumption in standby mode
- Rechargeable battery for emergency operations

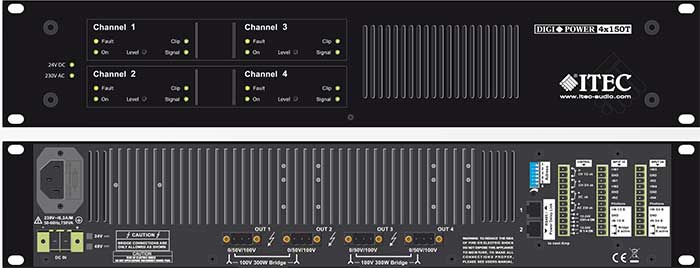

Level controls for each channel located on the back. Display of all operating conditions by LEDs.
The cooling system operates without a fan, so
- no pollution
- no consequential costs
- no moving parts
Features
- LED indicators for signal and operating conditions

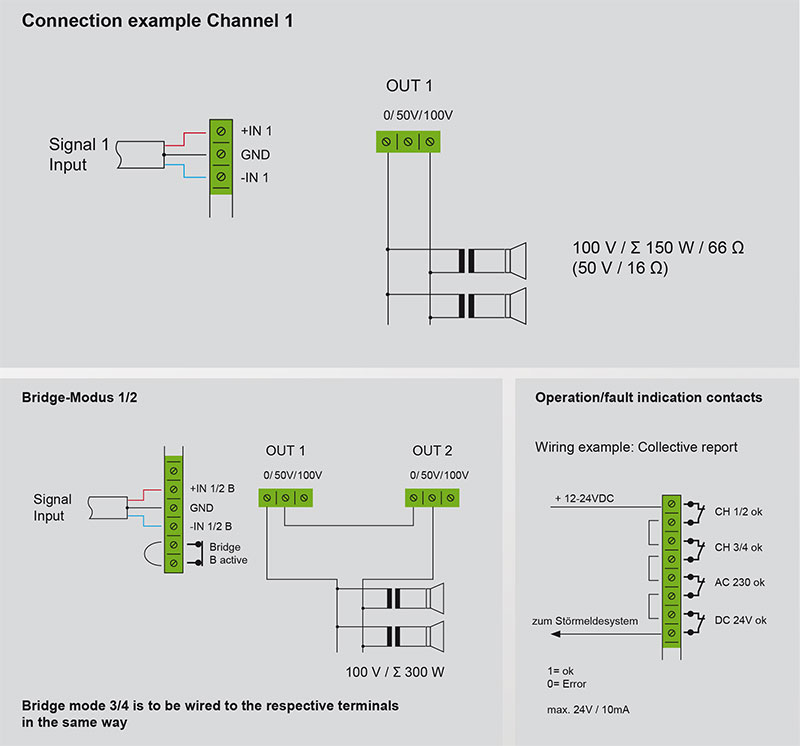

- Potential-free monitoring outputs for battery and mains supply
- Potential-free monitoring outputs for the function of the power amplifier
- Low installation depth of only 302 mm
- Low construction height: 2 RUs for 4 channels, output transformer on board
- All ports with push/screw terminals
- Symmetrical signal inputs
- Automatic standby with lowest possible current drain in 24V DC operation
- Protection circuit against open-circuit operation, short circuits, excessive temperature, DC
- 230V AC network and 24V DC voltage supply
- Soft start, cascadeable switch-on delay when using several devices
- Temperature-controlled fan
- RS-485 interface (optional) to control and query important parameters
Specifications
 |
|
| TYPE | 4x150T |
| Output Power | 4 x 150 W |
| THD + N | < 0,29 % |
| Input sensitivity | 1V eff |
| Input Impedance | 10 kOhm |
| Signal-to-Noise Ratio @ 1kHz, 250W, Vol 0,5 | 85 dB |
| Output transformer | 50 V / 100 V |
| Current consumption 230VAC sinus 100V @ 40 Ohms | 3,7A |
| Current consumption 24VDC sinus 100V @ 40 Ohms | 27A |
| Current consumption Standby 230VAC | 0,045A |
| Current consumption Standby 24VDC | 0,16A |
| Power consumption in standby mode (230V) | 10 W |
| Power consumption at full load (230V) | 851 W |
| Inputs | symmetrical on screw terminal |
| Supply voltage | 230 V AC / 24 V DC |
| Operating temperature | -5° bis +40° C |
| Protection circuits | DC, short circuit, resonance, over temperature |
| Frequency response | 80 Hz ÷ 22 kHz / -3 dB |

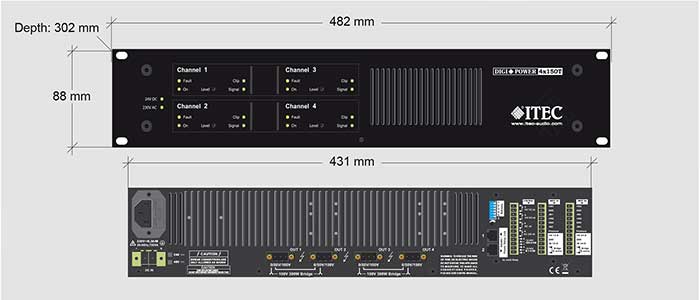

| Dimensions | 482 x 88 x 302 mm (B x H x T), 19 / 2U |
| Weight | 17,1 kg |
No responsibility is taken for the correctness of this information - Specifications subject to change.
