GENUINE-8 / HIGH END
Performance Features
- Design full-range PA speaker equipped with 8/1

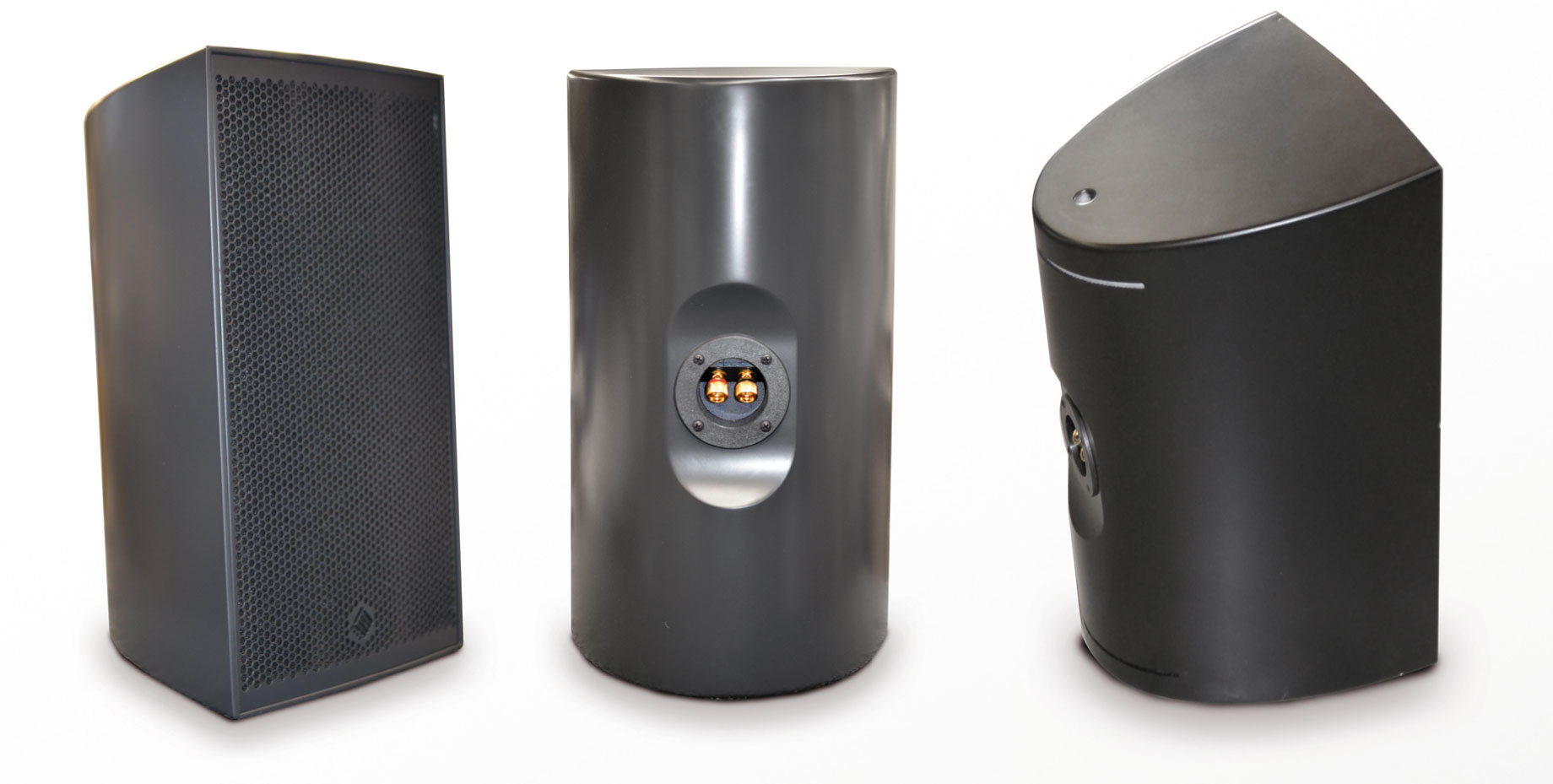

- Elegant 2-way full-range speaker in a curved wood housing with 8 low-mid speaker
and 1 calotte high-frequency driver and guide - Homogenous wide-dispersion characteristics ±60° (-6 dB)
- Integrated crossover with self-resetting protection circuit for low and high frequencies
and passive filters for runtime and phase optimisation - Spring connection terminal
- Mounting bracket with pivot and tilt function
- Birch plywood with highly resistant structured black (RAL 9011) or white (RAL 9010) finish
- Highly permeable, powder-coated speaker cover, steel galvanised, with changeable black / white acoustic foam.
Facilities
connecting terminal 8
ohms (standard)
Mounting bracket with pivot and tilt function
(standard) black or white
Specifications
 |
MODEL | GENUINE 8 / HIGH END / 8 OHM | |
| Load Capacity: | 200 W/RMS | ||
| Rated Sound Pressure Level: | 95 dB/1 W/1 m | ||
| Maximum Sound Pressure Level: |
121 dB | ||
| Frequency Range -6dB: |
65 Hz -20 kHz | ||
| Drivers: | 8 low-mid speaker and 1 calotte high-frequency driver and guide |
||

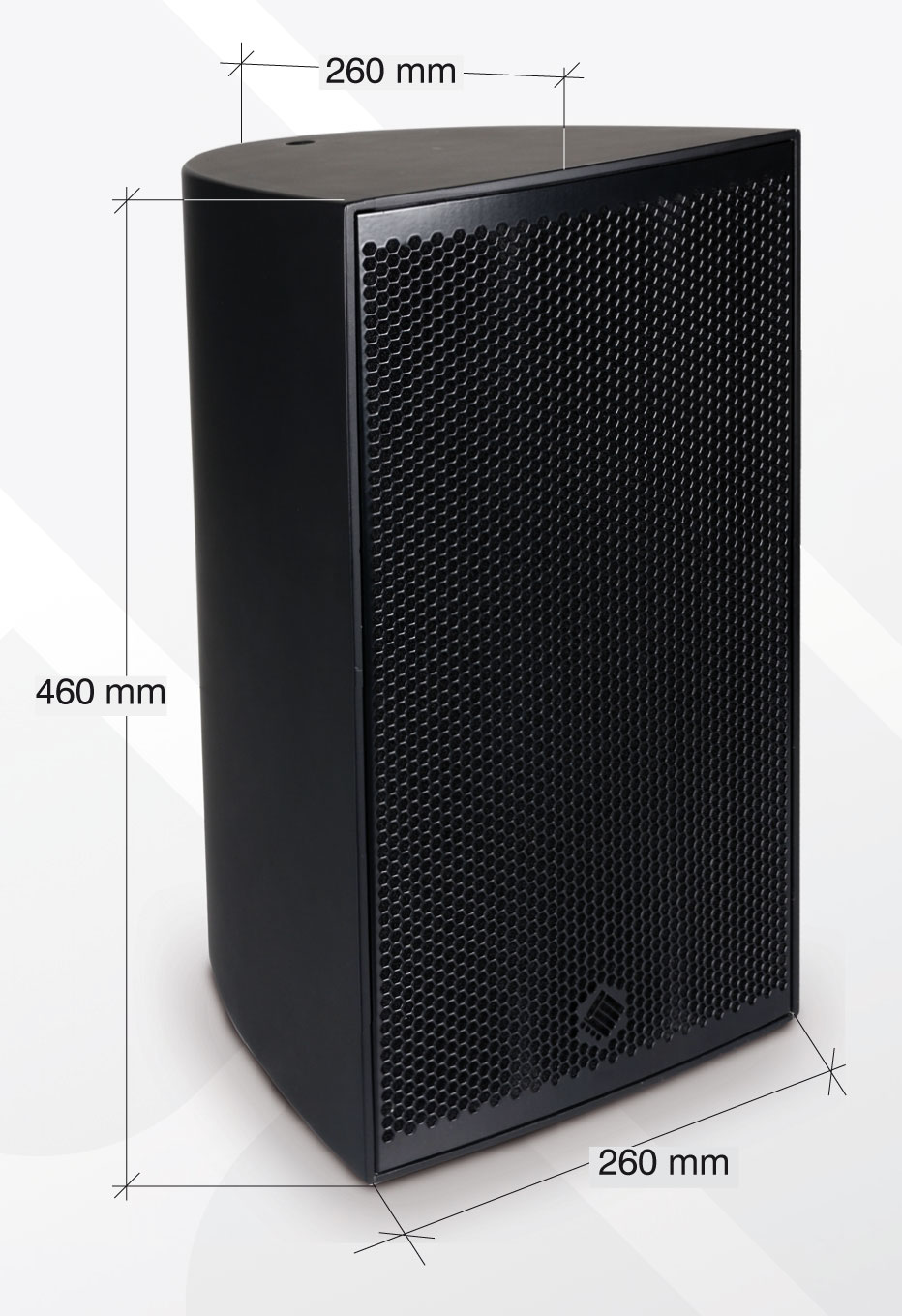

| Dimensions: | 260 x 460 x 260 mm (WxHxD) | ||
| Weight: | 9,5 kg | ||
| Case: | Birch plywood | ||
| Farbgebung: | highly resistant structured black (RAL 9011) or white (RAL 9010) finish | ||

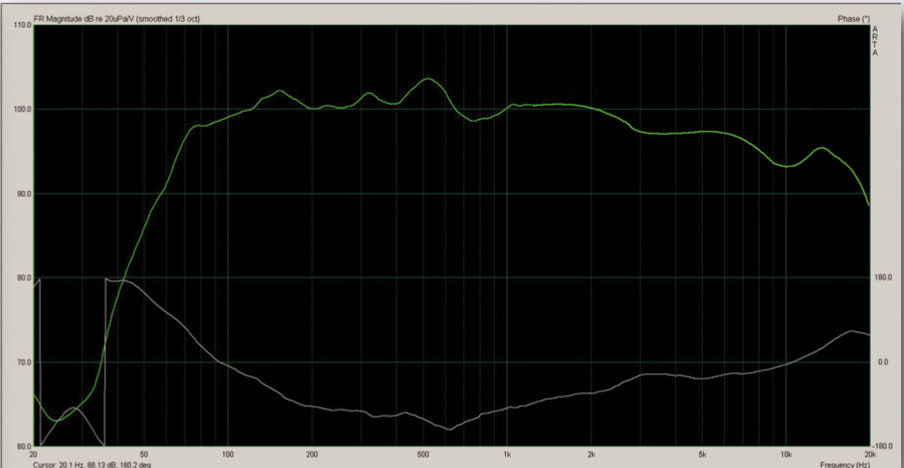

| frequency response on axis | |||
 |
|||
| horizontal angle of radiation | |||
 |
|||
All information without guarantee. Subject to technical changes.
