GENUINE-8 / HIGH POWER

Genuine 8

Performance Features

  • Design high-performance PA speaker equipped with 8“/1“
  • Elegant 2-way full-range speaker in a curved wood housing with 8“ low-mid speaker
    and 1“ compression driver on a Tractrix Horn.
  • Homogenous dispersion characteristics
  • Integrated crossover with self-resetting protection circuit for low and high frequencies
    and passive filters for runtime and phase optimisation

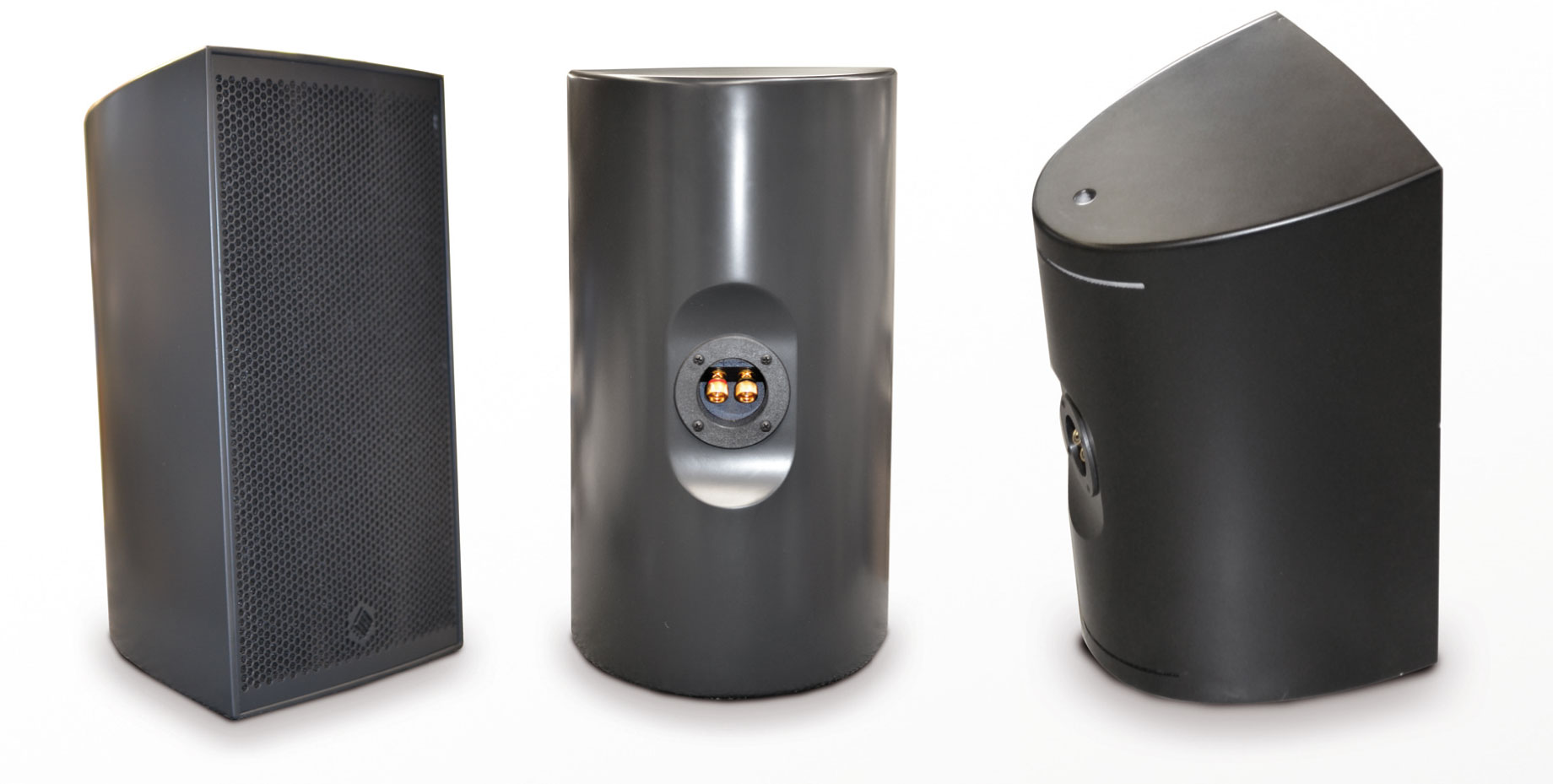

  • Spring connection terminal
  • Mounting bracket with pivot and tilt function
  • Birch plywood with highly resistant structured black (RAL 9011) or white (RAL 9010) finish
  • Highly permeable, powder-coated speaker cover, steel galvanised, with changeable black / white acoustic foam.

Facilities

connecting terminal 8 ohms
(standard)

Mounting bracket with pivot and tilt function
(standard) black or white

Specifications

Genuine 8 MODEL GENUINE 8 / HIGH POWER / 8 OHM
Load Capacity: 200 W/RMS
Rated Sound Pressure Level: 95 dB/1 W/1 m
Maximum Sound Pressure Level: 121 dB
Frequency Range
-6dB:
65 Hz -20 kHz
Drivers: 8“ low-mid speaker and 1“ compression
driver on a Tractrix Horn

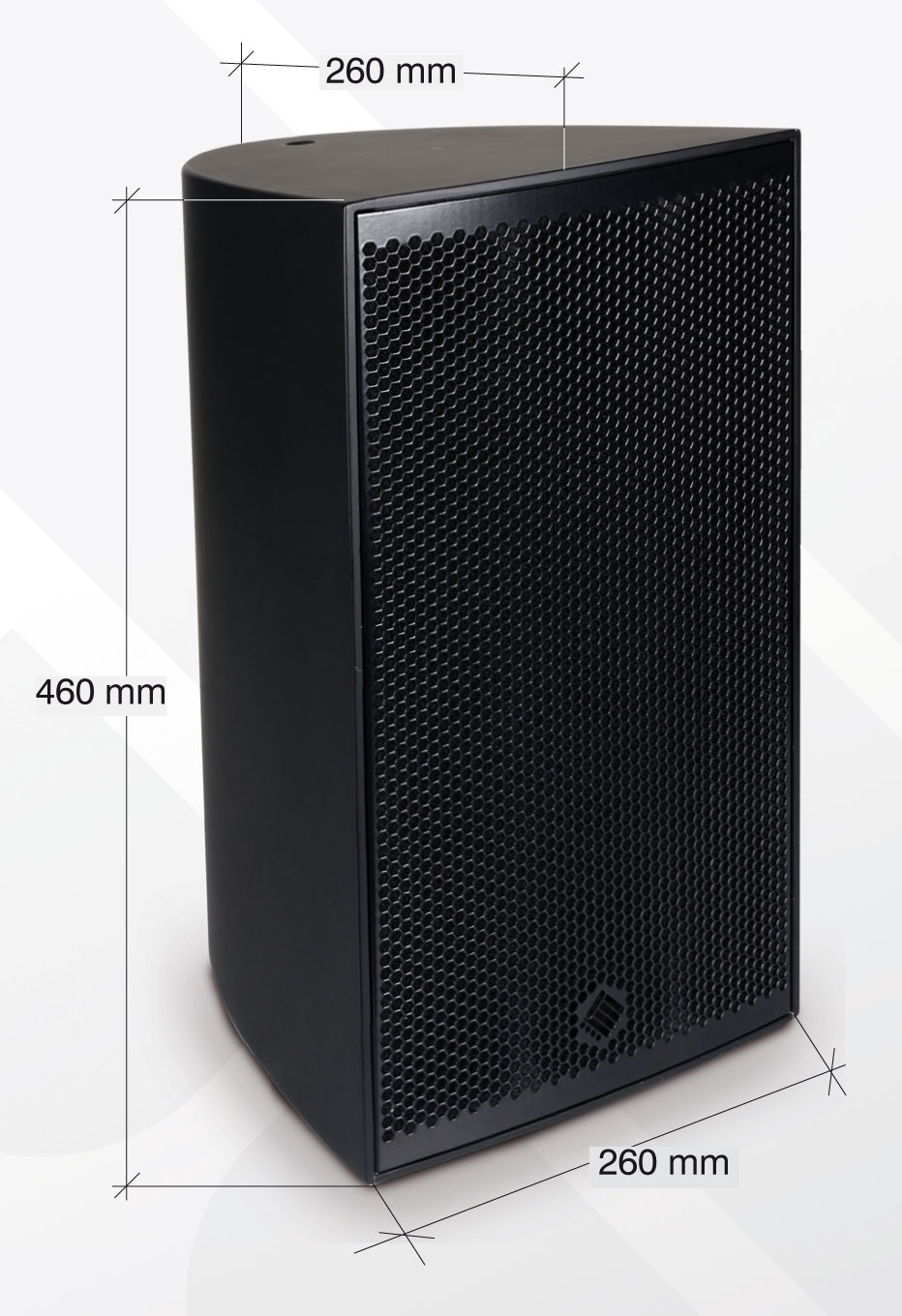

Dimensions: 260 x 460 x 260 mm (WxHxD)
Weight: 9,5 kg
Case: Birch plywood
Colours: highly resistant structured black (RAL 9011) or white (RAL 9010) finish

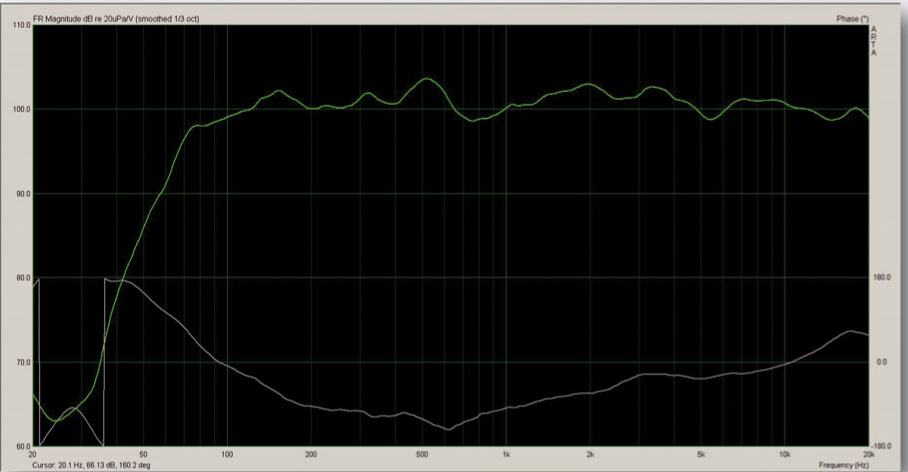

frequency response on axis
 Genuine 8
 horizontal angle of radiation
Genuine 8


All information without guarantee. Subject to technical changes.
