ITEC GS15/1,4

PRELIMINARY

GS15/1,4

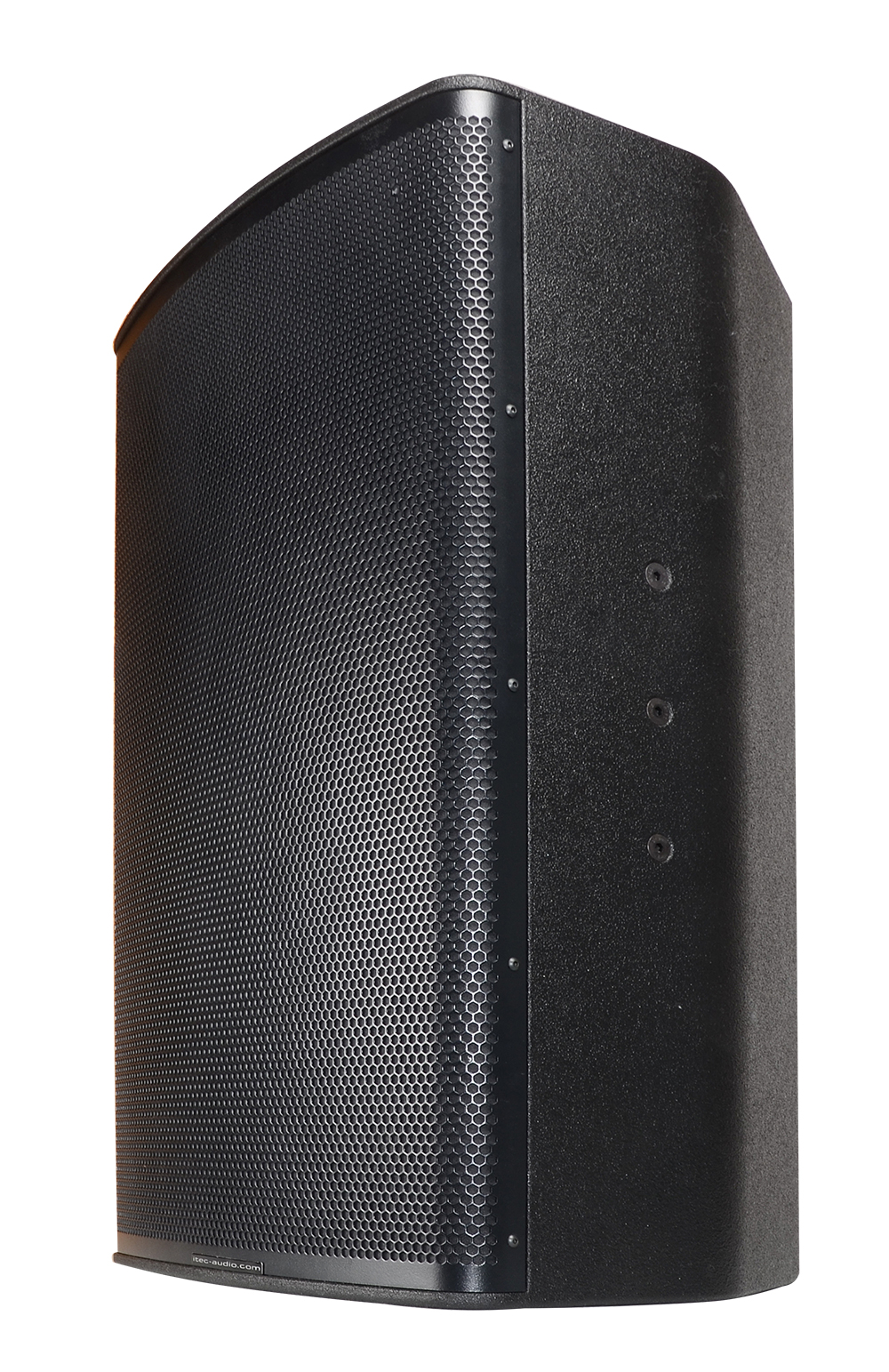

  • High-performance PA loudspeaker with 1x15”/1,4” neodymium components
  • Elegant 2-way full-range loudspeaker in a wooden housing with 1x15” neodymium low-mid speaker and 1,4 ”compression driver and horn▫ Homogenes Abstrahlverhalten
  • Integrated crossover with passive filtering for runtime and phase optimization.
  • Connection terminal 2x Speakon
  • Mounting bracket, optional pan-tilt bracket
  • Highly permeable, powder-coated loudspeaker cover made of galvanized steel
  • Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011) or white (RAL 9010), weatherproof, ball impact resistant

Connection Terminal

GS15/1,4

Mounting Accessories

GS12/1

Dimensions

GS15/1,4

Technical Specifications - GS15/1,4

MODEL GS15/1,4
Power rating 700 W / 1400 W
Nominal sound pressure 94,5 dB SPL / 2,83 V / 1 m
Max. sound pressure 125 dB SPL

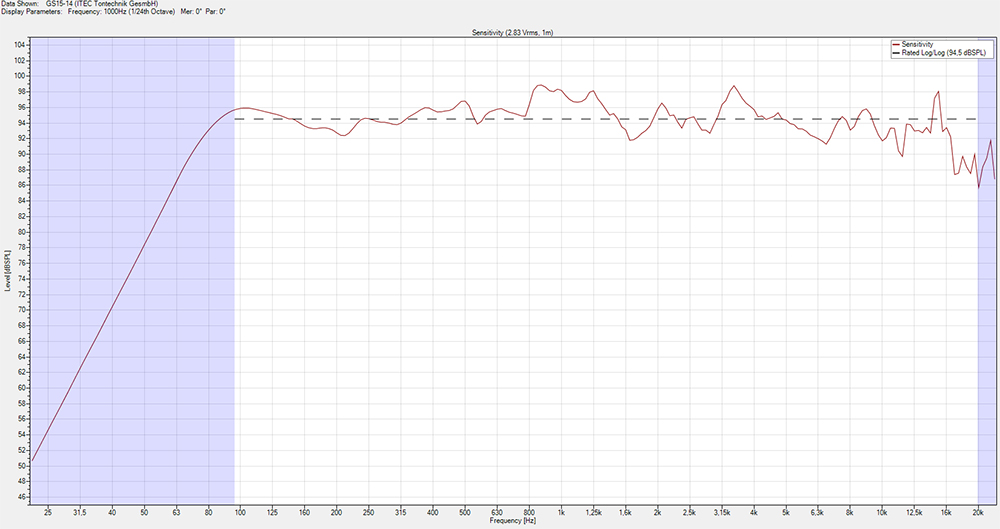

Frequency response -6 dB 64 Hz - 20 kHz
Impedance 8 Ohm
Driver

1x15 Low midrange speakers (3“ VC),
1,4“ Compression-Driver, Opening angle: horizontal 90 ° / vertical 40 °, horn rotatable
Dimensions (W x H x D) 440 mm x 700 mm x 370 mm
Weight approx. 23 kg
Housing Birch plywood
Coloring Polyurea coating in black or white
GS15/1,4


All Information without garantee. Subject to technical changes.
