ITEC GS8/1
PRELIMINARY
 |

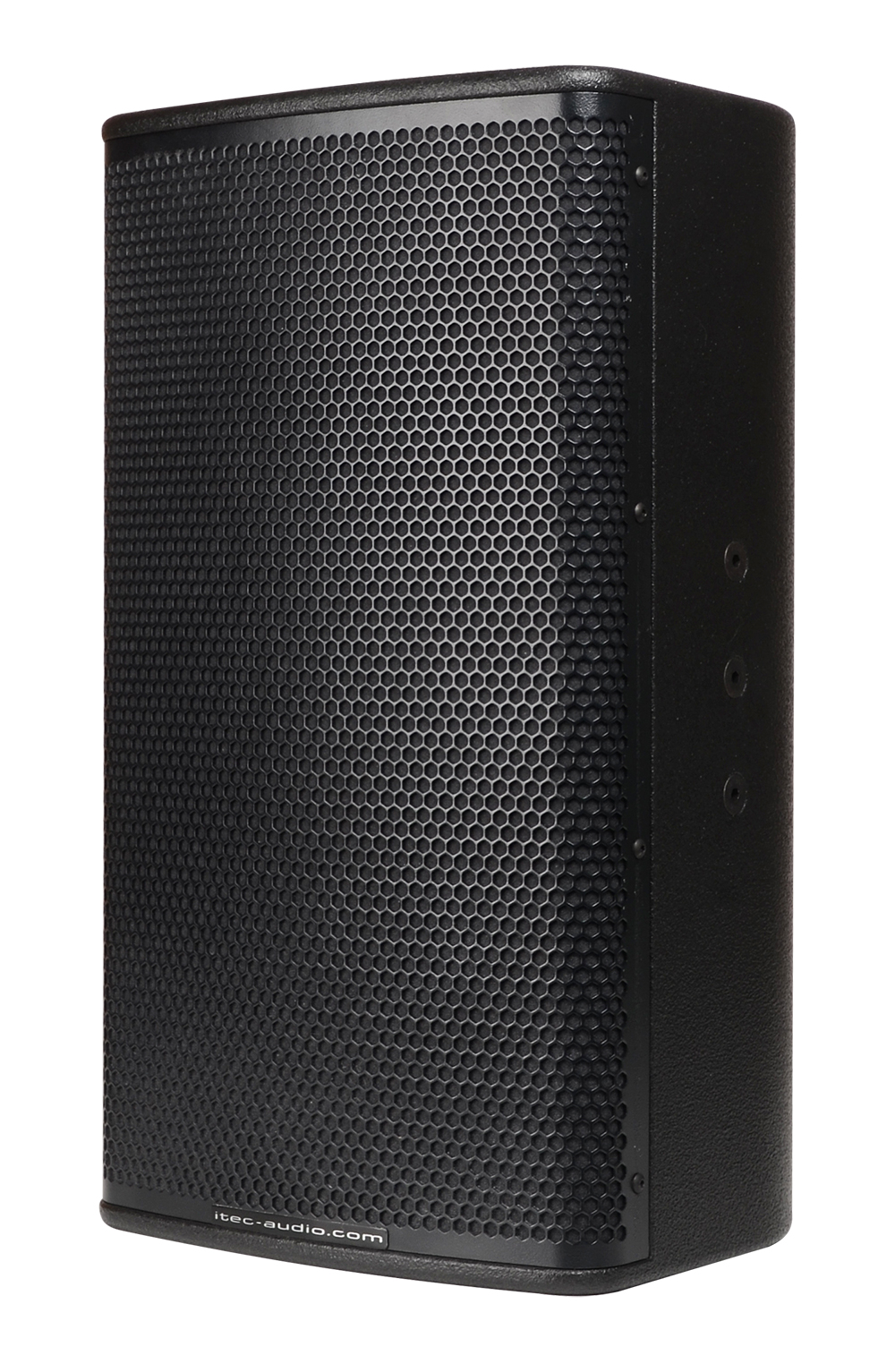

- High-performance PA loudspeaker with 1x8”/1” neodymium components
- Elegant 2-way full-range loudspeaker in a wooden housing with 1x8” neodymium low-mid speaker and 1 ”compression driver and horn
- Homogeneous radiation behavior
- Integrated crossover with passive filtering for runtime and phase optimization.
- Connection terminal 2x Speakon
- Mounting bracket, optional pan-tilt bracket
- Highly permeable, powder-coated loudspeaker cover made of galvanized steel
- Material: birch plywood with polyurea coating, glued waterproof, in black (RAL 9011)
- or white (RAL 9010), weatherproof, ball impact resistant
|
Mounting Accessories
Connection Terminal

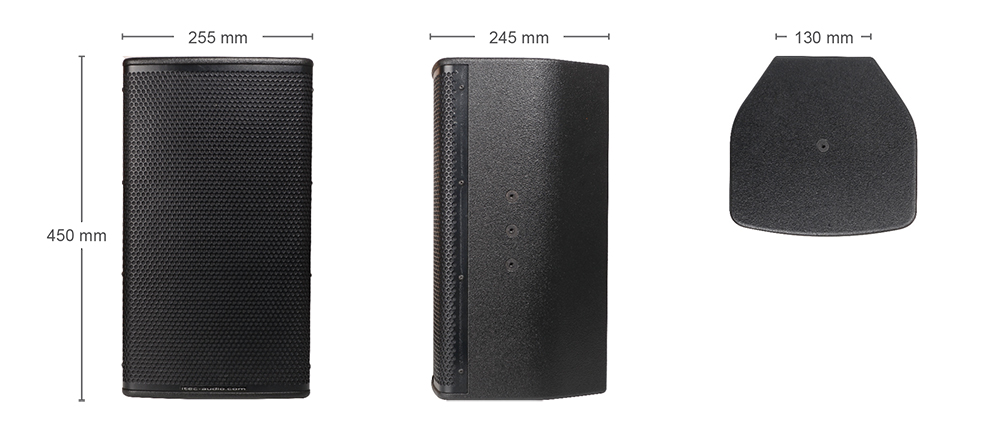

Dimensions
Technical Specifications - GS8/1
| MODEL |
GS8/1 |
| Power rating |
200 W / 400 W |
| Nominal sound pressure |
91,2 dB SPL / 2,83 V / 1 m |
| Max. sound pressure |
115,4 dB SPL |

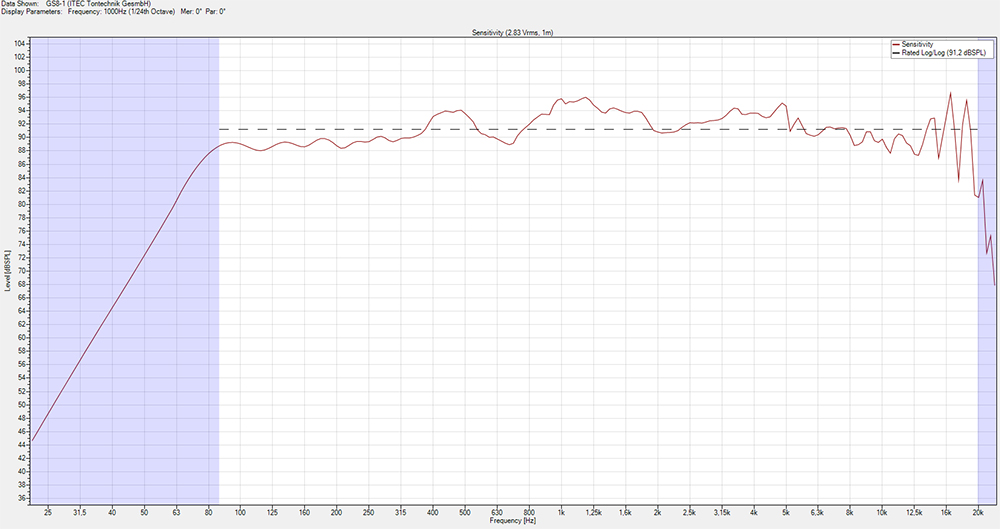

| Frequency response -6 dB |
75 Hz - 20 kHz |
| Impedance |
8 Ohm |
| Driver |
1x8 Low midrange speakers (2“ VC),
1“ Compression-Driver, Opening angle: horizontal 70° / vertical 90°, horn rotatable
|
| Dimensions (W x H x D) |
255 mm x 450 mm x 245 mm |
| Weight |
approx. 9,5 kg |
| Housing |
Birch plywood |
| Coloring |
Polyurea coating in black or white |
 |
All Information without garantee. Subject to technical changes.
