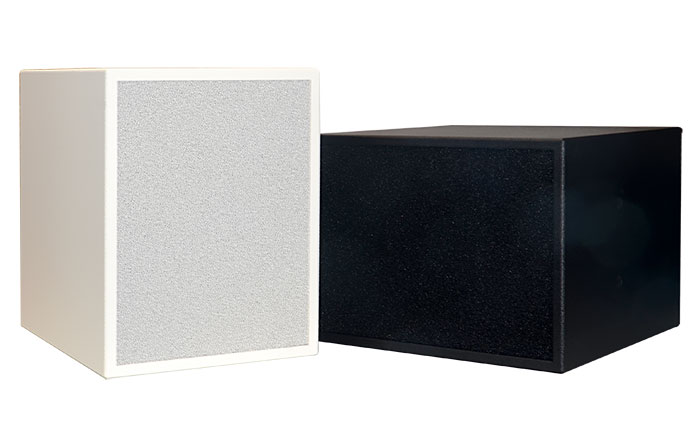

ITEC IS-10

IS-10

  • Compact installation bass loudspeaker for wall or ceiling mounting, enclosed rubber feet forinstallation on the ground.
  • 10” neodymium bass driver, bass reflex system specially developed and matched for use with the ITEC Genuine, Powerline and Powerceiling loudspeaker systems.
  • Housing made of birch plywood, ball-proof loudspeaker cover covered with acoustic foam, weatherproof and UV-resistant PU coating (poly urea) black, 6x M8

          Passive Version:

  • Exchangeable connection panel including 2x Speakon sockets

          Active Version:

  • Digital amplifier module with integrated digital signal processor (DSP)

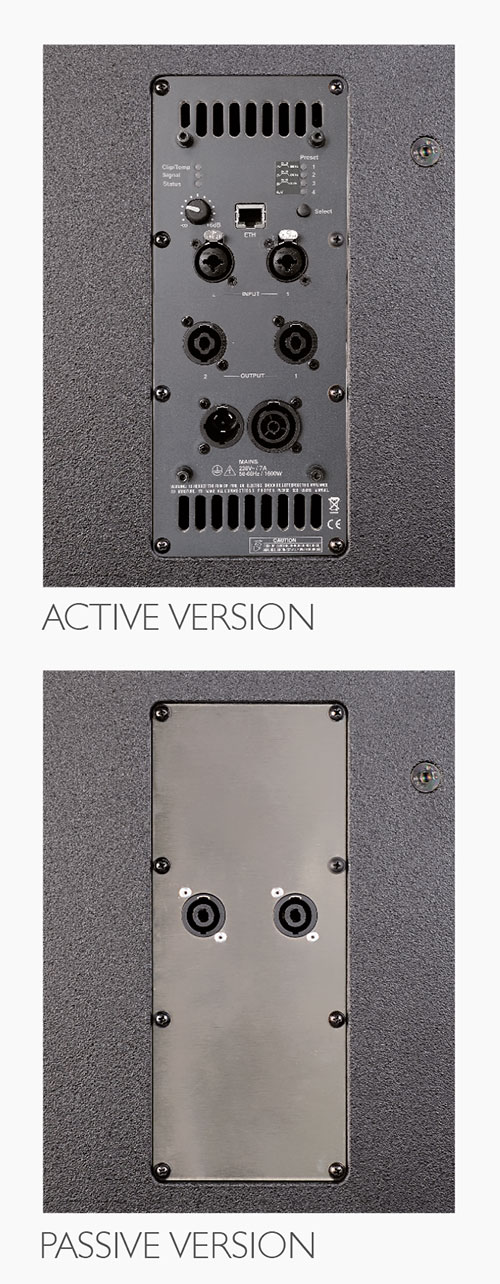

Connection Terminal

IS-10

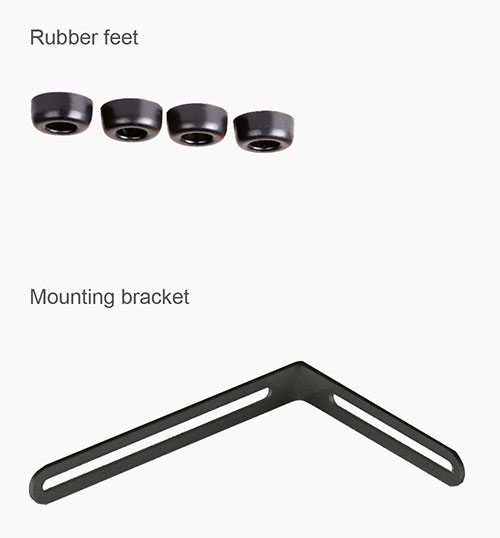

Mounting Accessories

IS-10

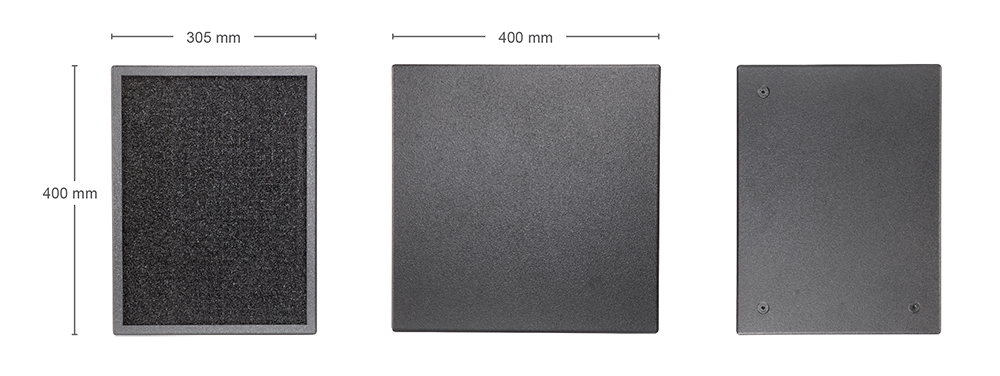

Dimensions

IS-10

Specifications - IS-10

MODEL IS-10 Active
IS-10 Passive
Nominal load   300 WRMS / 600 W Program
Power 700W
System-Presets
4
Nominal sound pressure (1W/1m)
93 dB
Max.sound pressure (1m)
124 dB
Impedance   8 Ohm
Transmission range +/-3dB 40 - 300 Hz 42 - 300 Hz
Presets

1) 25 IS-10 150 Hz
2) 25 IS-10 150 Hz
3) 25 IS-10 90 Hz

4) FLAT

-
Dimensions (W x H x D) 305 mm x 400 mm x 400 mm
Weight ca. 17 kg ca. 16 kg
Mounting 6x M8 flying points, 1x M8 for securing, 4 mounting brackets included
Coloring Textured PU coating, black RAL 9011


All information without garantee. Subject to technical changes
