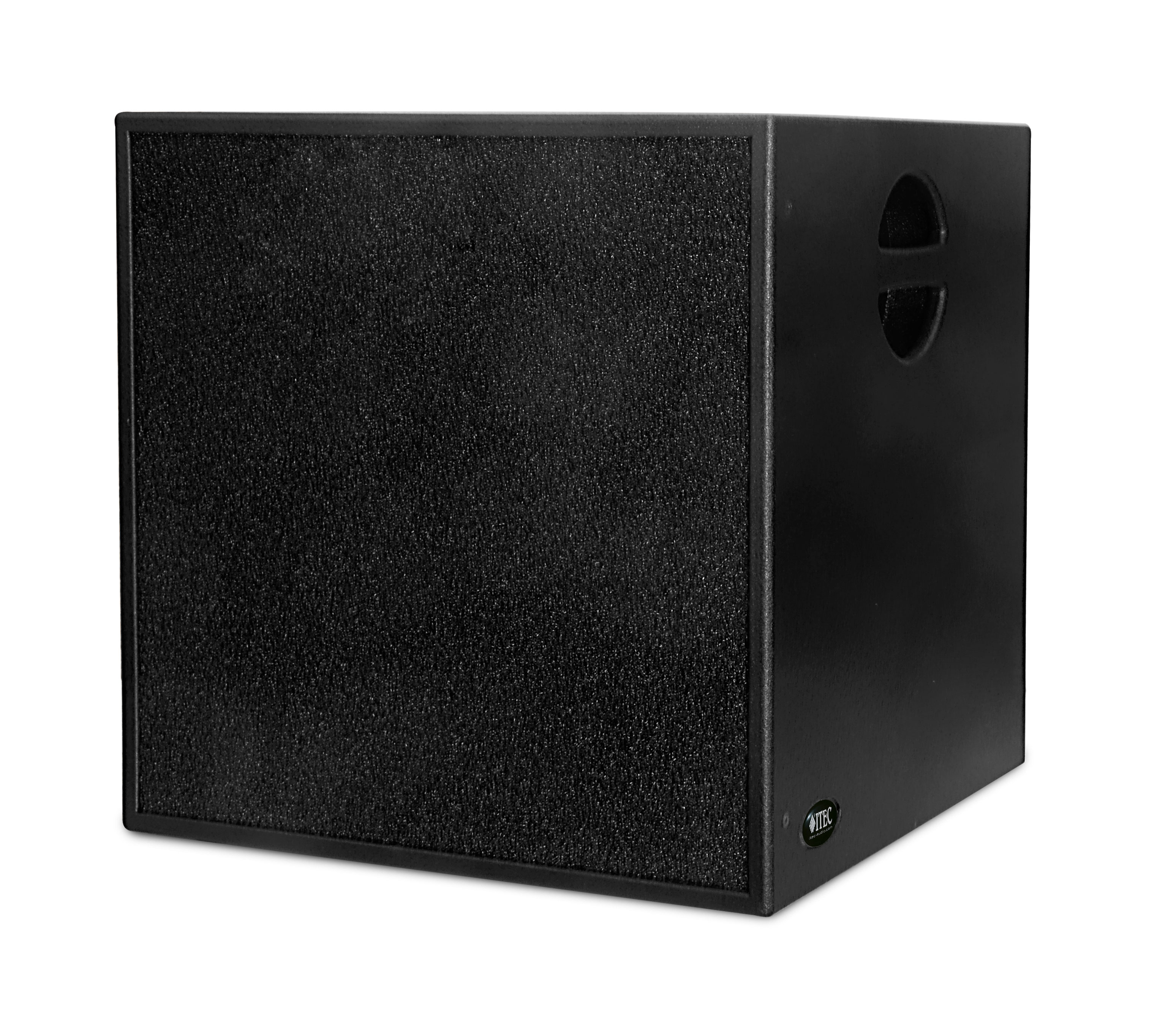

ITEC IS-15

Subwoofers effectively complement the full-range speaker systems in the low-frequency range. The compact "ITEC Installed Sub" series is perfectly matched to the "ITEC GENUINE" series and is suitable for wall or ceiling mounting.
The "ITEC Installed Sub" series is available in two versions (passive or active with a digital amplifier module and integrated DSP).
All models feature a birch plywood cabinet, a ball-proof speaker grille covered with acoustic foam, and a weather- and UV-resistant black PU (polyurea) coating.IS-15

  • Compact installation bass loudspeaker for wall or ceiling mounting, enclosed rubber feet forinstallation on the ground.
  • 15” neodymium bass driver, bass reflex system specially developed and matched for use with the ITEC Genuine and Powerceiling loudspeaker systems.
  • Housing made of birch plywood, ball-proof loudspeaker cover covered with acoustic foam, weatherproof and UV-resistant PU coating (poly urea) black, 6x M8

          Passive Version:

  • Exchangeable connection panel including 2x Speakon sockets

          Active Version:

  • Digital amplifier module with integrated digital signal processor (DSP)

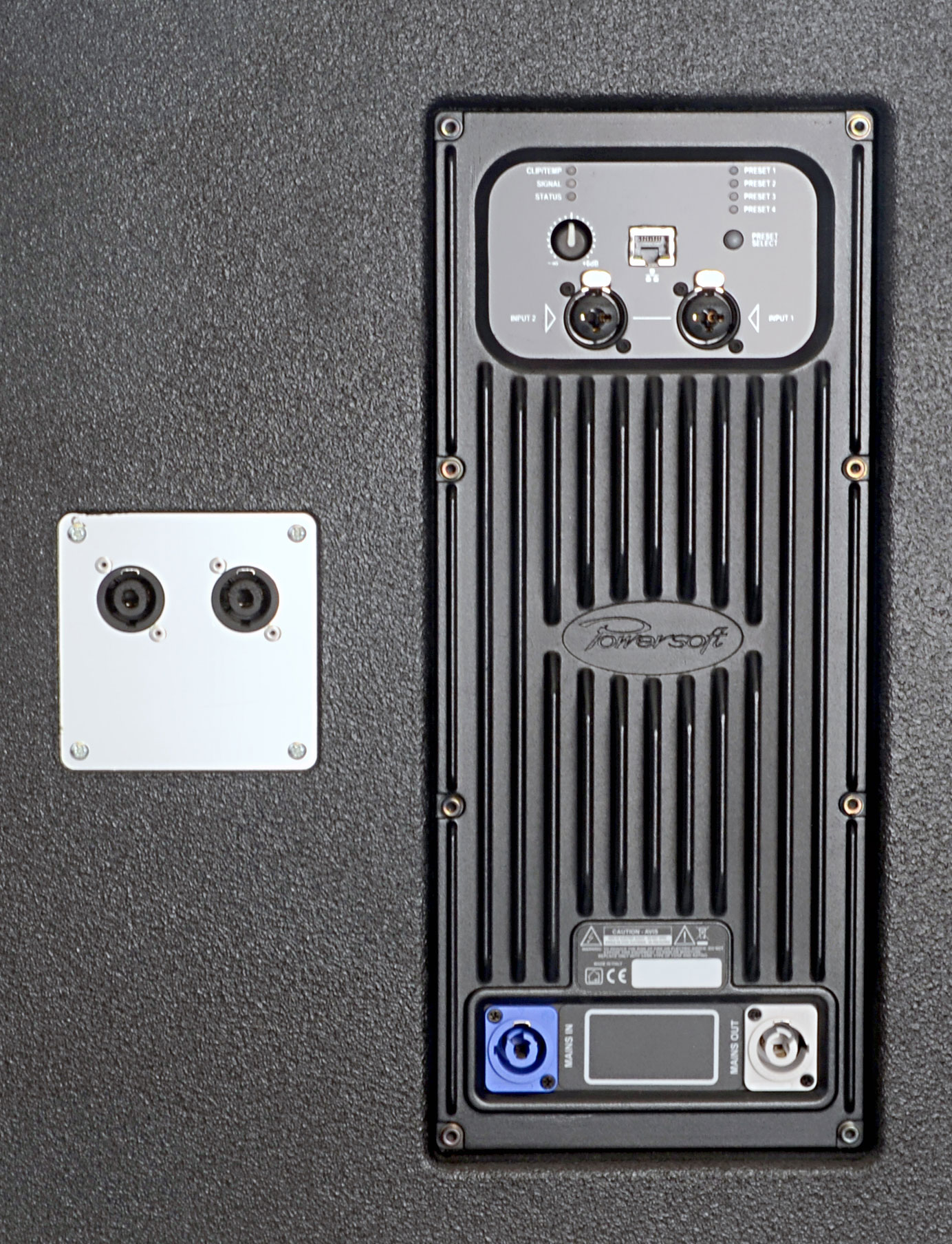

Connection Terminal

IS-15

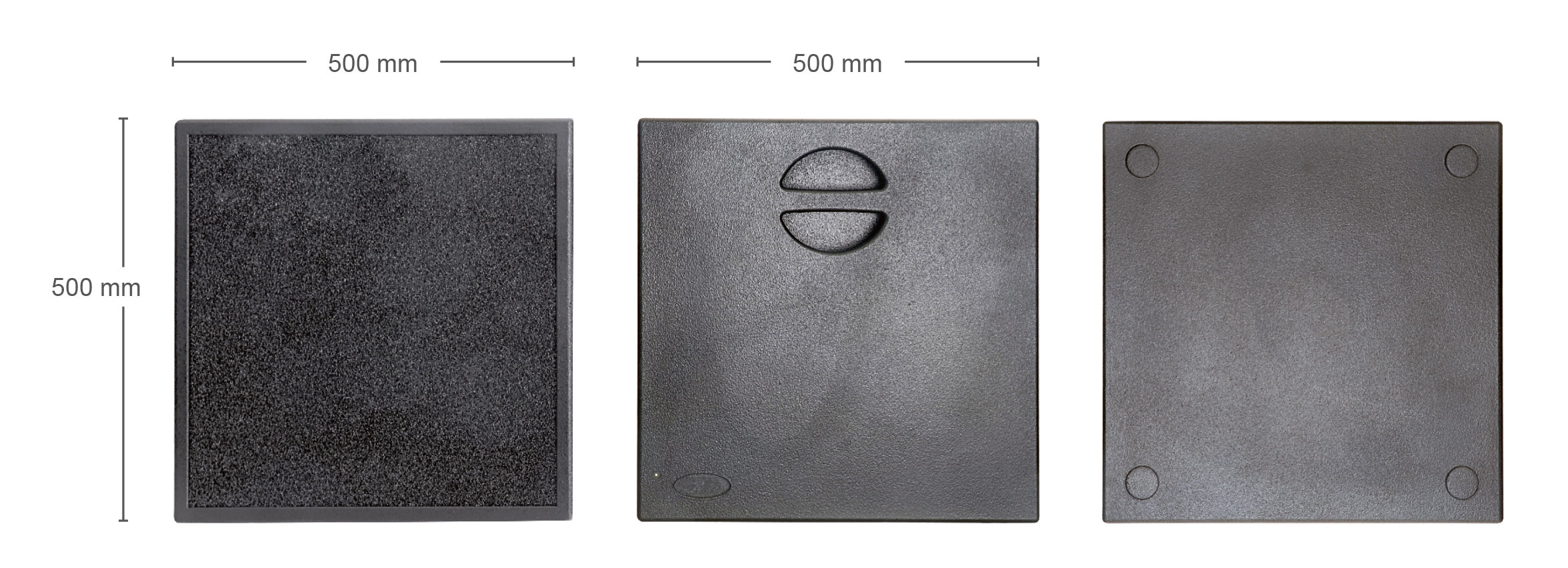

Dimensions

IS-15

Specifications - IS-15

MODEL IS-15 Active
IS-15 Passive
Nominal load   1200 WRMS / 2400 W Program
Power BTL 1400W 2x750W
System-Presets
4
Nominal sound pressure (1W/1m) 98 dB
Max.sound pressure (1m) 124 dB
Impedance   8 Ohm
Transmission range +/-3dB 38 - 300 Hz 38 - 300 Hz
Presets

1) 25 IS-10 150 Hz
2) 25 IS-10 120 Hz
3) 25 IS-10 90 Hz

4) FLAT

-
Dimensions (W x H x D) 500 mm x 500 mm x 500 mm
Weight ca. 26 kg ca. 26 kg
Mounting 6x M8 flying points, 1x M8 for securing
Coloring Textured PU coating, black RAL 9011


All information without garantee. Subject to technical changes
