MONITOR 12 / NEO

This high-performance sound reinforcement loudspeaker is never out of place – floor-standing, tripod-mounted, on the wall or suspended

If you are looking for a stage monitor that doubles as a full-range sound reinforcement speaker for smaller events, is capable of authentic sound reproduction at extreme volumes and is both rugged and easy to transport, then the Monitor 12 has the answers! Available in two versions, the Monitor 12 units feature either tripod mounts for mobile use or are supplied with an attractive wall/ceiling mounting bracket and suspension eyelets for fixed installation.

Fields of application
Handy and easy (through the use of neodymium magnets), but yet very stable and with a robust surface coating; with carrying handles, flanged bushings or mounting points; a performance-optimized crossover network including a loudspeaker protection circuit; able to reproduce authentic sounds at highest pressures: All these were requirements for our internal development department. Additionally even stylish packaged in a stage monitor housing.

Now we proudly present:
The ITEC MONITOR 12/Neo
Two enclosure and equipment variants are available:

1. The mobile version – designed as a monitor for live events; can be used on stage or as compact full-range unit Sound reinforcement box for events; ideal for music and voice, with outstanding, clear voice reproduction.
2. The installed version – intended for fixed installation in multi-purpose rooms, halls, sport stadiums, night clubs, bars, restaurants or theme parks.

Performance features -
Low-impedance or 100 volt

• High performance sound reinforcement speaker
• Bass reflex system
• Configuration: 12 „neodymium-Cone Speaker, 1“ neodymium CD Horn
• linear authentic sound; high efficiency: 101dB/1W/1 m.
• Ideal for full-range sound reinforcement tasks
• Ball-throwing proof speaker grille (Optional weatherproof equipment on request)
• Nominal pressure: 300 Watt / 8 ohm or 120 watts / 100 Volts (250W/100V on request)

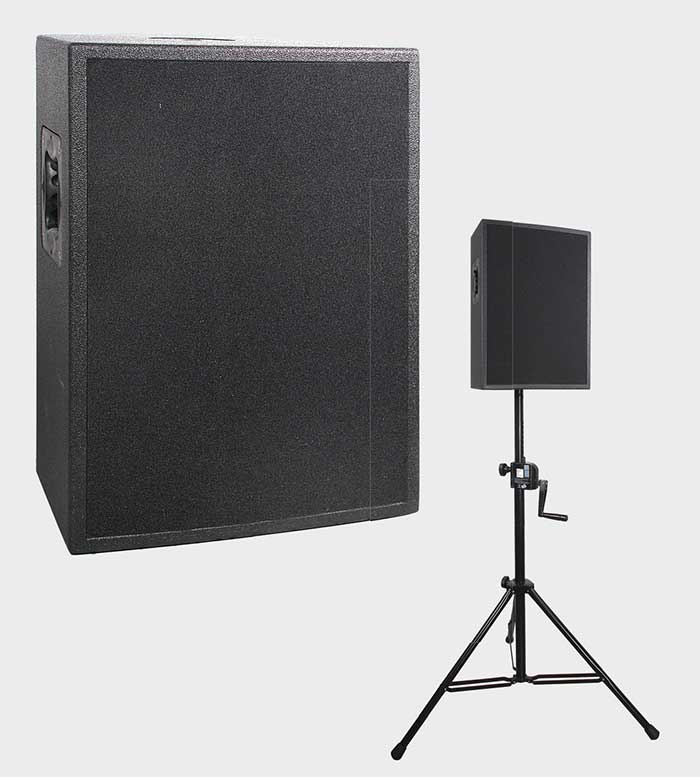

Mobile
Equipped with plastic hard-shell hand grips, 36 mm tripod mount top and bottom, and speakon connections.

SPEAKON connections
on reverse side of Monitor 12

Tripod
mount on underside of Monitor 12

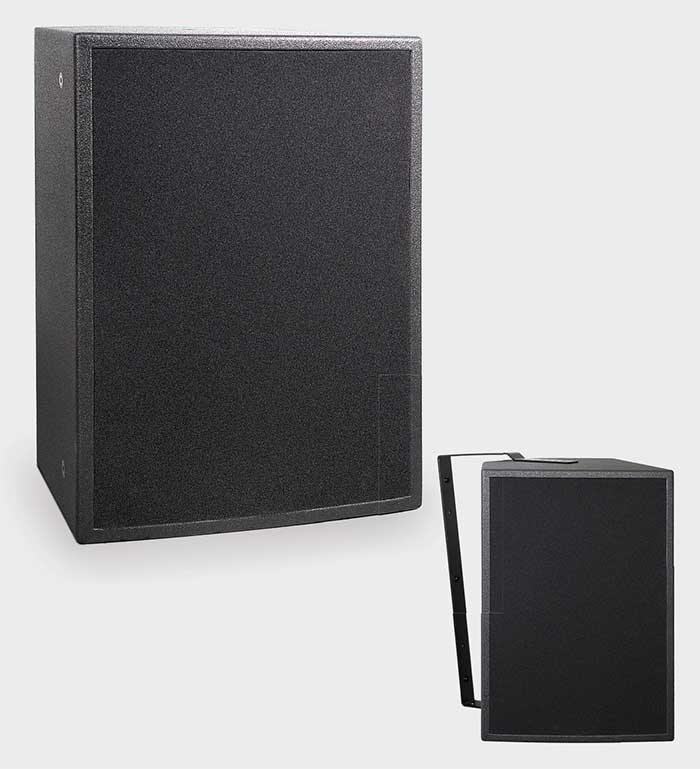

Installed
Equipped with eight M10 suspension points for mounting with ropes or chains, incl. four M10 eye bolts as well as a mounting bracket for rigid installation.

Mounting bracket

Eight built in M10 suspension points
incl. four M10 eye bolts

MODELS	MONITOR 12/8 Ohm		MONITOR 12/100V/120W
	Mobile	Installed	Mobile	Installed
Rated load:	300 W/RMS		120 W/RMS
Rated acoustic pressure dB/1W/1 m:	101
Max. acoustic pressure:	126 dB		122 dB
Frequency response -6 dB:	68 Hz - 22 kHz
Driver:	1 Stk. TT 12"
	1 CD waveguide, 1"

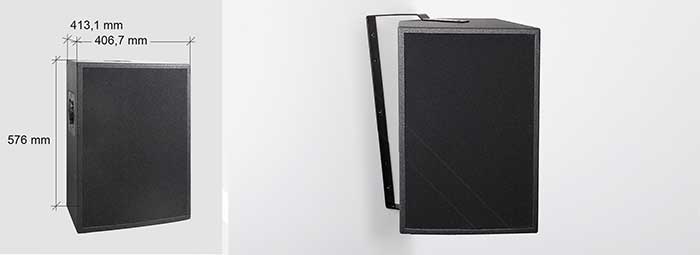

Dimensions (W x H x D):	406.7 x 576 x 413.1 mm
Weight:	17,5 kg		23 kg
Enclosure:	Housing made of water-resistant laminated plywood, ball-throwing proof speaker grille shock-resistant polyurethane (PU) coating, incl. mounting bracket (installed version)
Colour:	PU-coated, black
TEST CHART


All information without guarantee. Subject to technical changes.
