MONITOR 6
DESIGN AND FUNCTION IN A PERFECT PACKAGE
The compact, full-range loudspeakers in elegant monitor design
Design and authentic sound in perfect harmony: Whether gentle background music or crisp and clear announcements the Monitor 6 loudspeakers reproduce sound with outstanding clearness and quality. Available with various finishes in all available RAL colours, this compact monitor blends naturally into any architectural setting while its asymmetrical enclosure provides versatile mounting options.
Fields of application
To cover the complete audible spectrum with a faithful and well-balanced sound reproduction, a loudspeaker system must have a certain size and number of speakers. ITECs Monitor 6 features a 6.5 (165 mm) bass and mid-range unit combined with a 1 (25.4 mm) dome tweeter driver. The enclosures asymmetrical monitor design allows the speaker to be easily incorporated in a buildings overall architecture. Mounted on walls or ceilings, the units blend in naturally with their surroundings without detracting from the buildings interior and architectural design. The Monitor 6 can be used in many fields of application: from shopping malls, restaurants, bars and conference halls to multimedia applications and home cinema installations.
Performance Features
- Bass reflex loudspeaker system
- 6.5 cone loudspeaker
- 1 dome tweeter, front-loaded
- Passive crossover with range of protective circuits
- Outstanding efficiency
- Power: 60 watts/8 ohms, or 50 watts/100 V with
- built-in 5-way power selector
Standard equipment and accessories
Wall mounting bracket (standard)
Connection terminal (standard 8 ohm)
Connection terminal (standard 100 V)
Screw terminal (optional)
Speakon socket (optional)
Pivoting mounting bracket (optional)
black or white
Ball-joint mounting bracket (optional)
black or white
Specifications - Monitor 6
| MODELS | ITEC MONITOR 6 / 8 Ohm | ITEC MONITOR 6 / 100 V |
| Rated load: | 60 W/RMS | 50 W/RMS |
| Rated acoustic pressure dB/1 W/1 m: | 90 | 90 |
| Max. acoustic pressure: | 106 dB | 104 dB |
| Frequency response ± 3dB: | 100 Hz -16 kHz | |
| Built-in power selector: | - | 50/25/12.5/6.75 W |
| Driver: | 1 Stk. 6.5" cone | |
| 1 Stk. 1" dome tweeter | ||
| Dimensions (W × H × D): | 200 x 285 x 195 mm | |
| Weight: | 3.7 kg | 4.1 kg |
| Enclosure: | Water-resistant plywood enclosure, all drivers waterproof, impact-resistant speaker covers (galvanised, powder-coated) |
|
| Colour: | White structural paint or black PU-coated | |

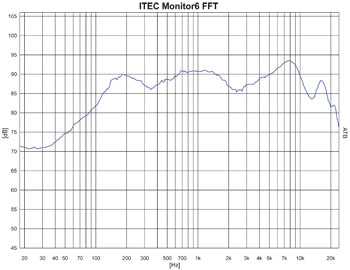

| TEST CHART | ||
 |
||
All information without guarantee. Subject to technical changes.
