NEOCUBE 2
The ITEC NeoCube speaker series convinces with beautiful shapes, top efficiency and linear frequency response, all packed into minimum housing dimensions. When combined with the ITEC PowerBass 8 bass speaker system, the NeoCube series turns into a multi-purpose, full-range system to be used e.g.: for restaurants, bars, multimedia installations, meeting rooms, home theatres, etc.
Performance Features
- Bass reflex loudspeaker system
- 3 cone loudspeaker
- Passive crossover with range of protective circuits
- Outstanding efficiency
- Power: 40 watts/8 ohms or 20 watts/100 V with
built-in 4-way power selector
Other features:
- can be easily integrated architecturally
- authentic design speaker
- wide irradiation characteristics
Facilities, Accessories
connecting terminal 8 ohms
(standard)
connecting terminal 100V
(option)
Pivoting mounting bracket
(standard)
schwarz oder weiß
nominal impedance during performance adjustment:
| Power | Impedance |
| 20 W | 200 O |
| 10 W | 400 O |
| 5 W | 800 O |
| 2,5 W | 1600 O |
Consistent with ITEC NeoCube - PowerBass 8
Full, rich playback sound and consistently perfect speech intelligibility are the result when the ITEC NeoCube und ITEC PowerBass 8 are combined. Authentic sound, even at low volumes, and powerful rhythms for your events.
Specifications - NeoCube 2
 |
||
| MODELS | ITEC NEOCUBE 1 / 100 V | ITEC NEOCUBE 1 / 8 Ohm |
| Rated load: | 20 W/RMS | 40 W/RMS |
| Rated acoustic pressure dB/1 W/1 m: | 90 | |
| Max. acoustic pressure: | 103 dB | 106 dB |
| Frequency response ± 6dB: | 190 Hz -20 kHz | |
| Built-in power selector: | 20/10/5/2,5 W | - |
| Driver: | 1 x 3 cone | |

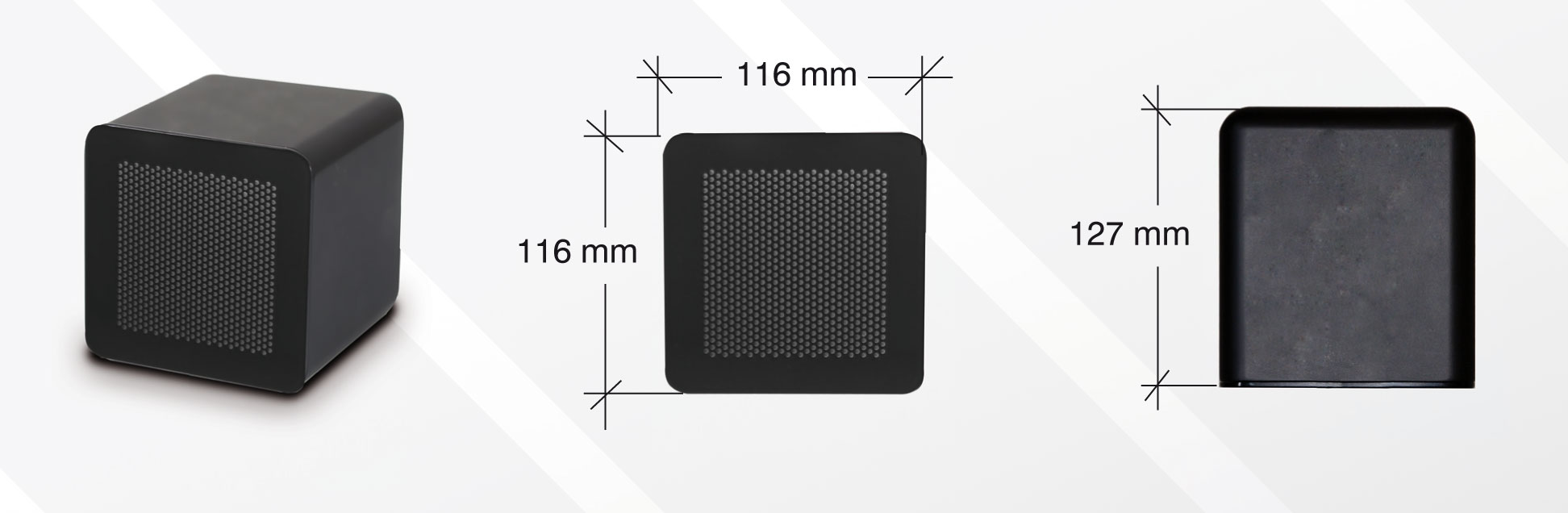

| Dimensions (W x H x D): | 116 x 116 x 127 mm | |
| Weight: | 1,35 kg | 1 kg |
| Enclosure: | Plywood | |
| Finish: | standard white or black, optional: RAL colour on request | |

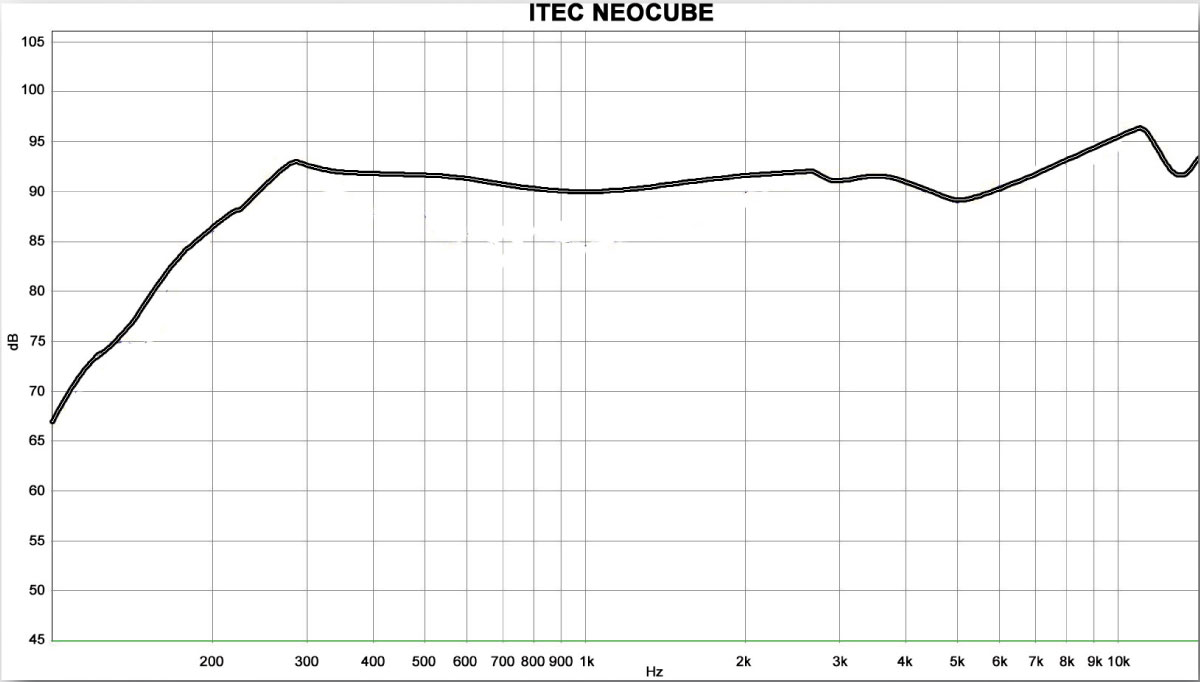

| Frequency response on axis | ||
 |
||
| Frequency | horizontal + vertical |
| 500 Hz | 360 |
| 1 kHz | 193 |
| 2 kHz | 120 |
| 4 kHz | 120 |
All information without guarantee. Subject to technical changes.
