NEODYMLINE 4 / WP

NEODYMIUM TECHNOLOGY FOR HIGH PERFORMANCE PA SOUND LINES

Welded aluminium housings for weather-proof outdoor installations (IP33). Three models with different vertical directivity characteristics for use in acoustically difficult halls. Full-range performance in high-quality sound reinforcement applications (systems certified according to EN 54-24)

For areas of public life, where security is the highest bid Certified quality assurance ensuring consistent performance at continuous operation for decades

Usage areas

A high-performance sound line without compromise:
Nowadays architects are demanding smaller and inconspicuous speakers - When establishing this new sound reinforcement speaker, it was the biggest challenge to build a narrow, elegant and overall small speaker but with pressures and dynamic ranges that can keep up with existing players on the market. Due to our unique acoustic simulation program and by selecting the world‘s most efficient Neodymium transducer we succeeded in creating an exceptional product for sensitive applications: The ITEC NEODYMLINE series.


Performance description

  • Welded aluminium housings for weather-proof outdoor installations (IP33)
  • Perfect sound in acoustically challenging areas
  • High power 2 or 3-way systems with passive crossover network unit
  • Highest sound pressures even at very small dimensions
  • 3 different sizes and performance models
  • Integrated power switch (100V-Versions)
  • Optional: Ceramic connection terminal with thermal fuse
  • Mounting accessories

Standard equipment, accessories

Mounting bracket standard short (included)
Dimensions: 9 x 6.5 cm

Mounting bracket long (optional)
Allows greater tilt of the sound column;
Dimensions: 18.5 x 13.5 cm

Terminal (standard)
Connection terminal covered by metal plate (Ceramic Terminal + thermal fuse)
incl. cable entry clamp with stress relief

Specifications - NeodymLine 4 /WP

NeodymLine 4 / WP   NEODYMLINE 4 / WP
  100 V / 54-24 8 Ohm
Rated load: 50 W / RMS 80 W / RMS
Nominal pressure dB/1W/1m: 96 96
Max SPL dB/50 (100) W: 113 115
Frequency response -6 dB: 137 Hz - 14.8 kHz
Integrated power switch: 50 / 25 / 12.5 / 6.25 W (only for 100 V-application)
Housing and mounting hardware: Welded aluminium housings for weather-proof
outdoor installations (IP33), all drivers weatherproof,
speaker grille galvanized, powder coated, 2 mounting brackets
Driver: 4 pcs. 3“ Konus Neodym
Dimensions (W x H x D) 100 x 652 x 100 mm
Weight: 3.7 kg 2.95 kg
Colour: White, black

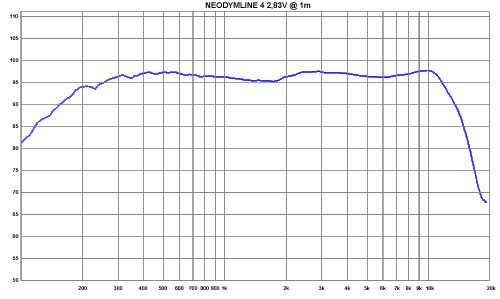

TEST CHARTS
NDL 4 Messprotokoll


All information without guarantee. Subject to technical changes.
