POWERLINE 2/S
Performance Features
- High performance sound reinforcement speaker
- 2-way full-range speaker, in a birch plywood housing with 2x6” low-mid speakers and 1” compression driver on a horn 90°x 60°
- Homogenous dispersion characteristics
- Integrated crossover with self-resetting protection circuit for low and high frequencies and passive filters for runtime and phase optimisation
- Connection terminal Phönix screw terminal, optional speacon

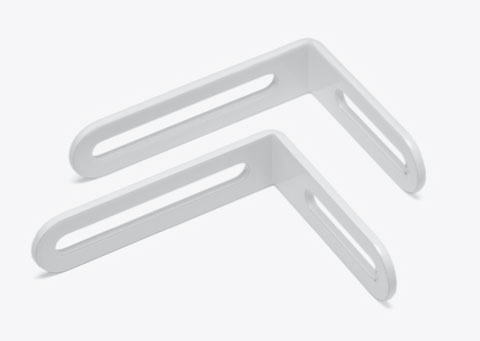

- Mounting bracket, optional bracket with swing and tilt function
- Material: Birch plywood, PU-coated black (RAL 9011) or structured white (RAL 9010) finish
- Highly permeable, powder-coated speaker cover, steel galvanised, with changeable black acoustic foam.
- Optional 4 Ohm or 100V Version
Standard
 |
 |
| Screw terminal | Mounting bracket |
Option
 |
| Speacon |
 |

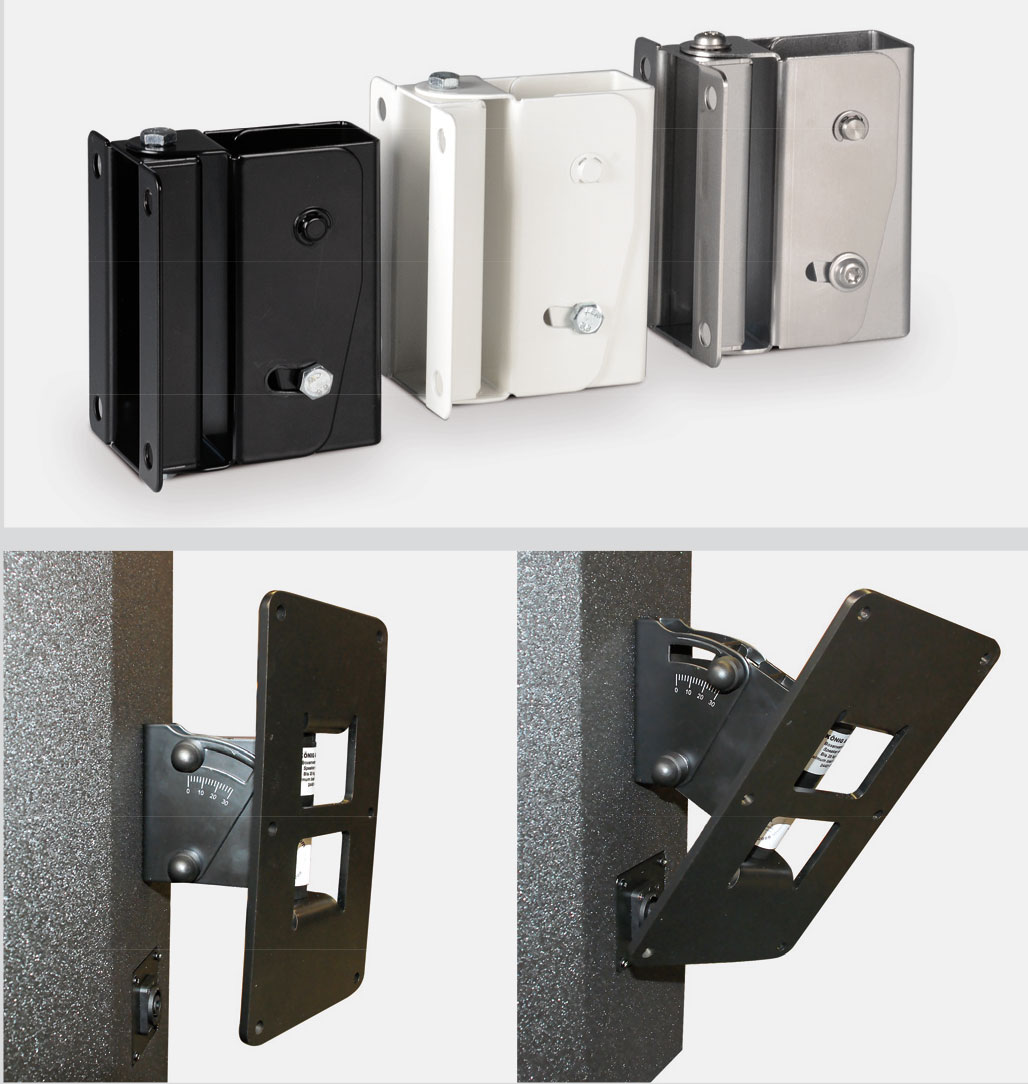

| Mounting brackets with swing and tilt function |
Specifications
 |
||||||||||||
| MODEL | POWERLINE 2/S / 4 OHM | POWERLINE 2/S / 100 V | ||||||||||
| Load Capacity: | 100 W/RMS | 50 W/RMS | ||||||||||
| Rated Sound Pressure Level: | 93 dB/1 W/1 m | |||||||||||
| Maximum Sound Pressure Level: | 113 dB | 110 dB | ||||||||||
| Frequency Range -6dB: | 85 Hz -20 kHz | |||||||||||
| Drivers: | 2x6” low-mid speaker and 1“ compression driver with 90°x 60° horn | |||||||||||

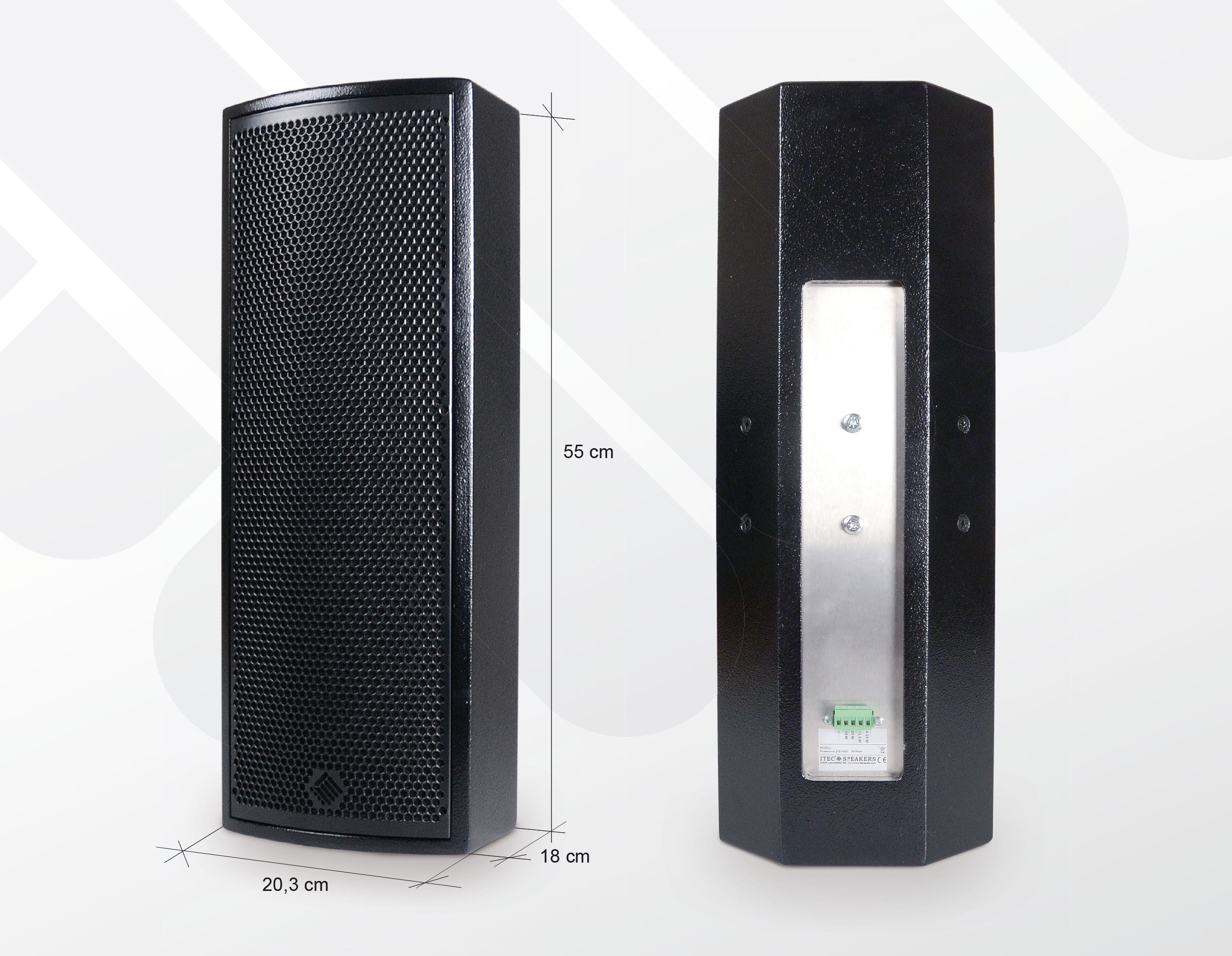

| Dimensions: | 203 x 550 x 180 mm (W x H x D) | |||||||||||
| Weight: | 7 kg | 7,8 kg | ||||||||||
| Case: | Birch plywood | |||||||||||

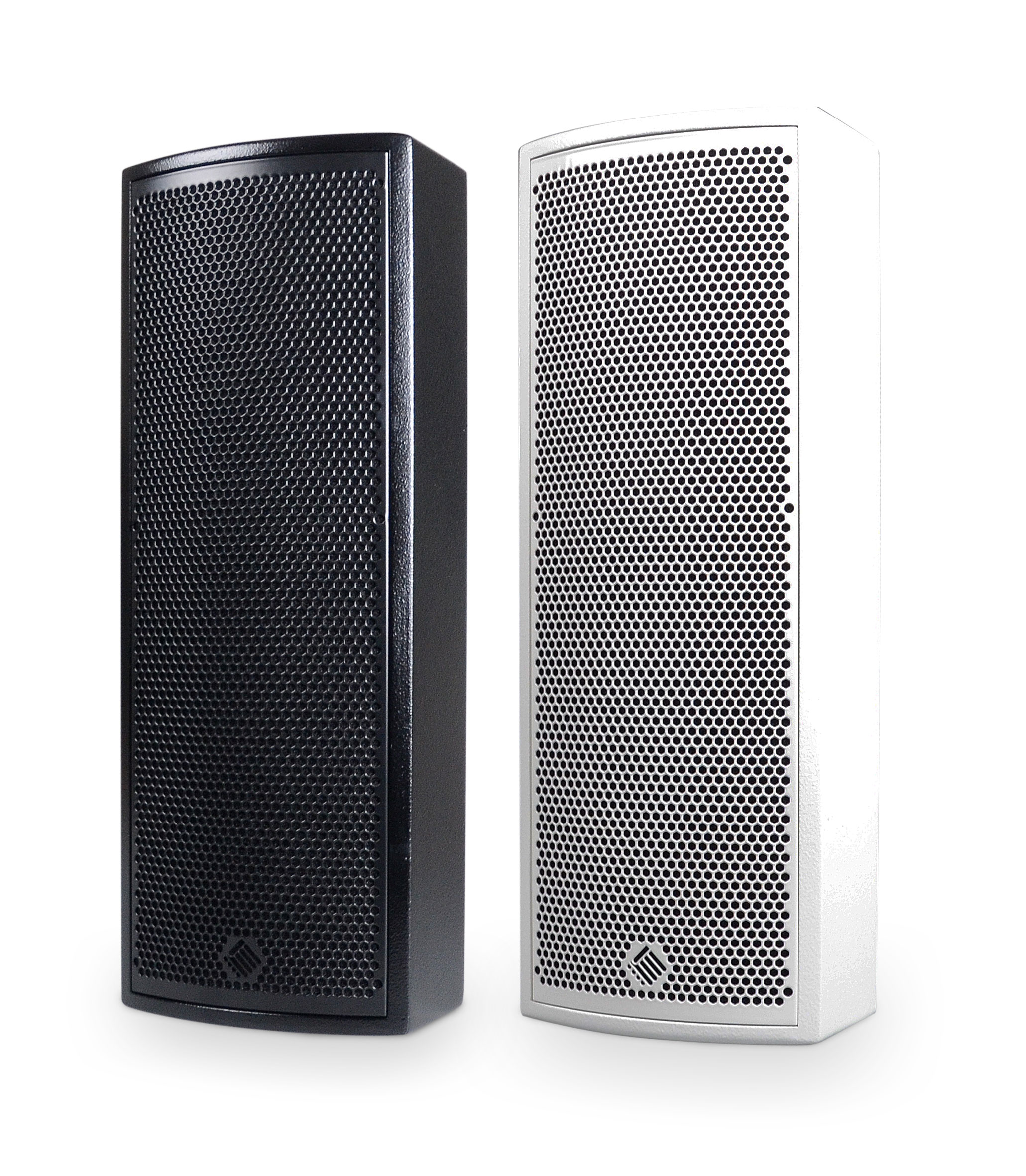

| Colours: | Colours PU-coated black (RAL 9011), structured white (RAL 9010) finish | |||||||||||

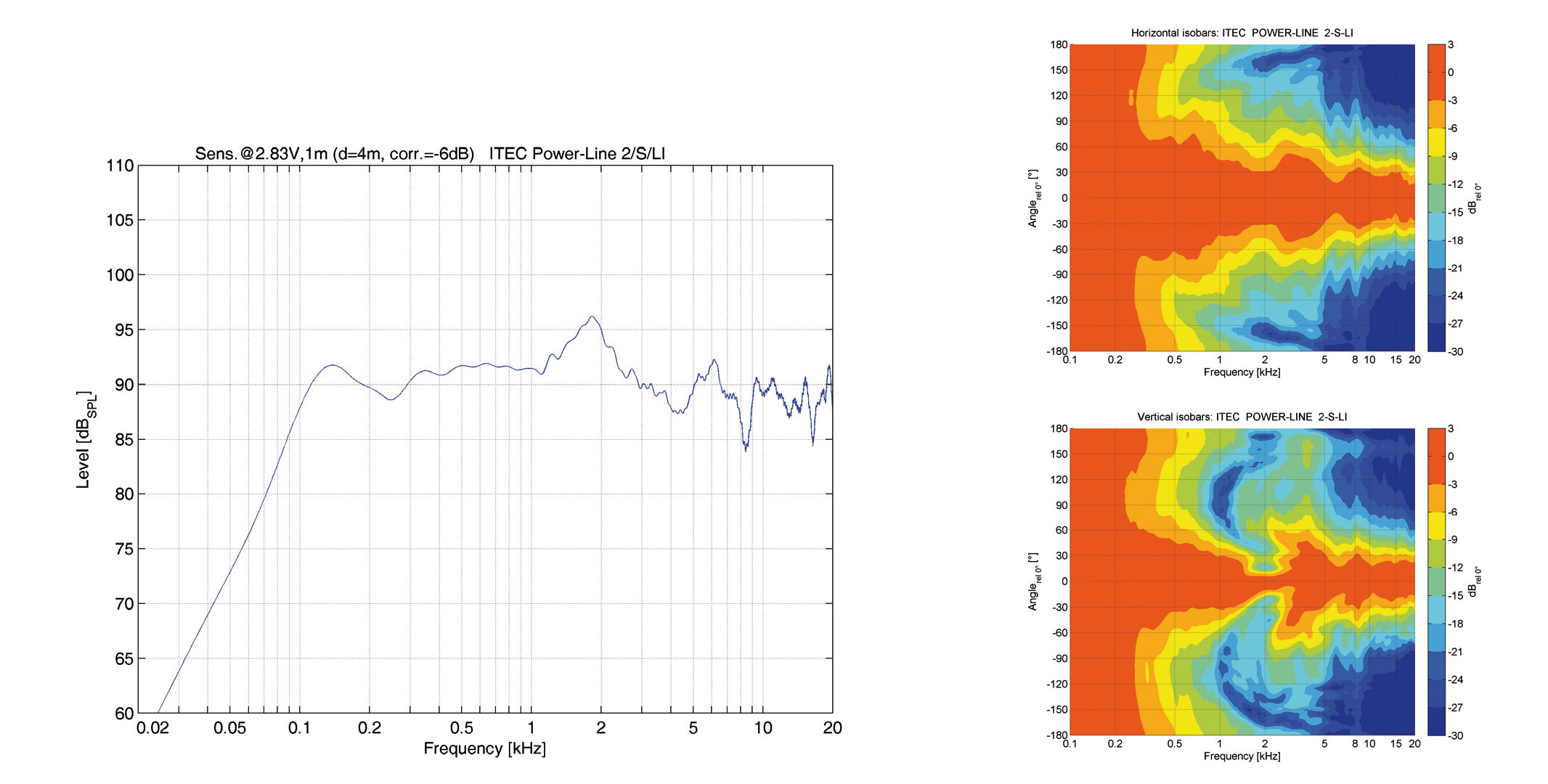

| Frequency response | ||||||||||||
 |
||||||||||||
All information without guarantee. Subject to technical changes.
