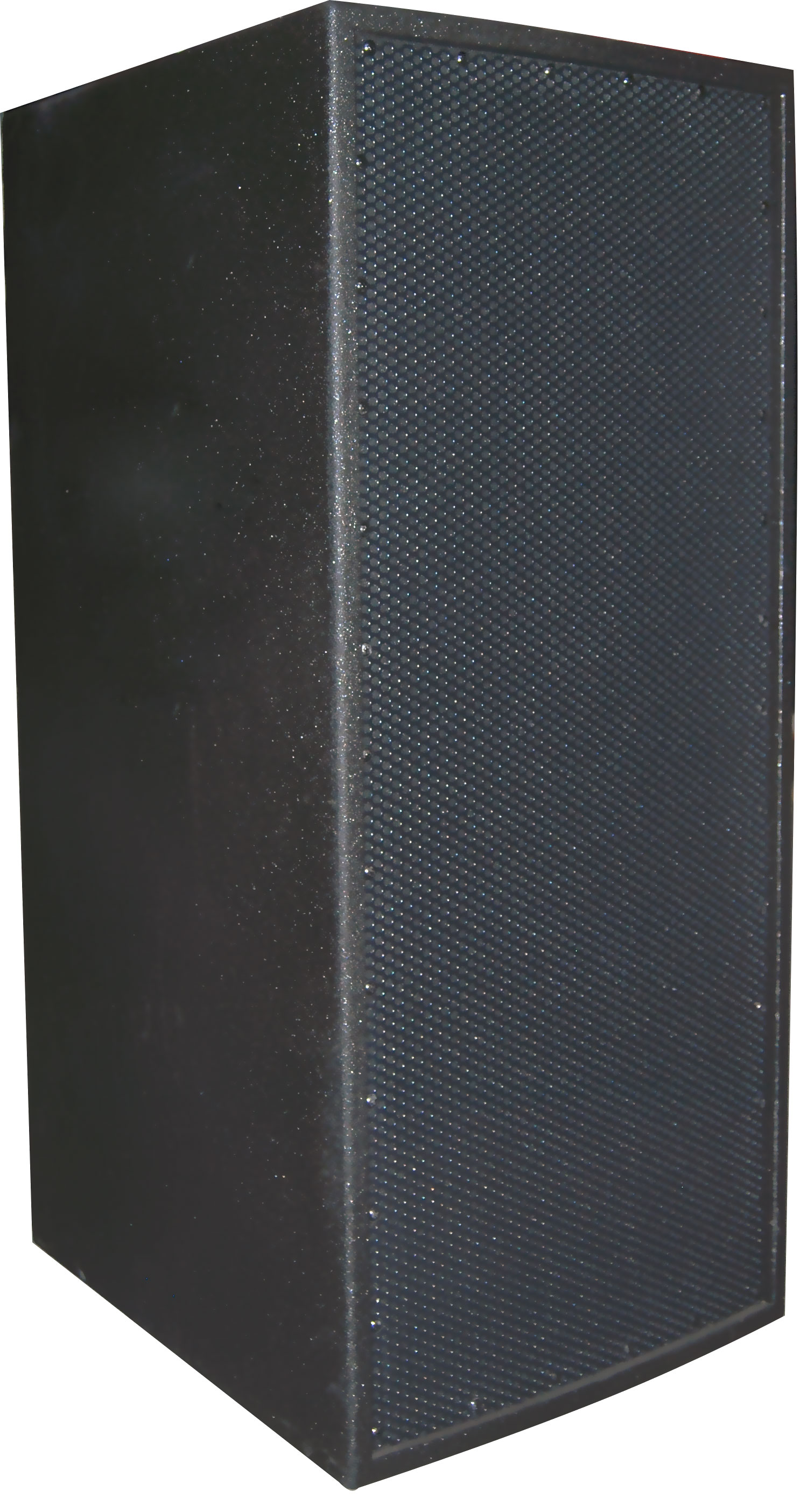

POWERTOP installed
IF ALL ELSE FAILS...
ITEC POWERTOP: Packing a Punch on Stage or in the Arena
The superlative from ITEC whether for music PAs or nightclubs, for large halls or stadiums, the high - performance Powertop sound reinforcement speakers are your number one choice. With an impressive peak level of 131 dB the sound reaches your audience with an exceptional fidelity that makes for a pleasant listening experience even at extreme volumes.
Areas of application
As wide as the application range in the large sound reinforcement technology is, as flexible is this speaker system. The speakers can both vertically as well horizontally be mounted on the ceiling (model Installed) or be equipped with 2 tripod flanges for different stacking variants and carrying handles (model Mobil). The HF Horn (90 x 60 degrees) can be rotated by 90 ° and can thus for cluster-exercises be adapted. The built-in passive frequency crossover unit is equipped with a protection circuits securing it against overloading at any time. The weatherproof glued and with a special polyurethane coating equipped speaker housing is hermetically closed. Optional: The ITEC Power TOP - speakers can be equipped absolutely weatherproof and therefore be installed also outdoors without additional covers. The other optional configuration with 100V power transmitter enables large line lengths with central arrangement of amplifier units, and that nearly lossless. So a full sound system that leaves nothing to be desired.
Performance features - low-impedance or 100 volt
- Low-impedance or 100 Volt high performance sound reinforcement speaker
- Assembly: 2 x 12 low/mid cone loudspeakers
- 1 Neodym CD Horn, Linear authentic sound
- Highest efficiency: 104 dB / 1W / 1 m
- Ideal for full-range sound reinforcement tasks
- 4 Ohms / 600 W or 100V/250W
- Built-in passive crossover net-work equipped with all protection circuits
- Optional: Weatherproof overall level
Equipped with 19 M10 suspension points for mounting with ropes or chains, four M10 eye bolts supplied.
SPEAKON connections
on reverse side of PowerTop
19 M10 suspension points built in
incl. four M10 eye bolts.
Specifications - PowerTop Installed
 |
||
| MODEL | POWERTOP-12 / 4 Ohm | POWERTOP-12 / 100 V / 250 W |
| Rated load: | 600 W / RMS | 250 W / RMS |
| Rated acoustic pressure: | 104 dB / 1 W / 1 m | |
| Max. acoustic pressure: | 131 dB | 128 dB |
| Frequency response -6 dB: | 100 Hz- 22 kHz | |
| Features: | 19 × M10 suspension points, 4 × M10 eye bolts | |
| Drivers: | 2 Stk. TT 12 | |
| 1 Stk. CD waveguide 1 | ||

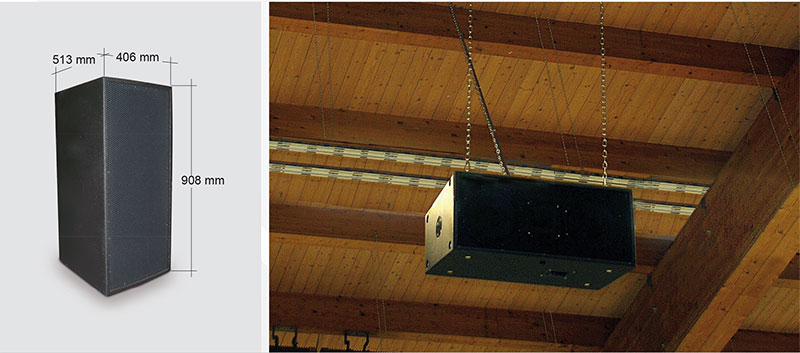

| Dimensions: | 406 x 908 x 513 mm (W × H × D) | |
| Weight: | 29 kg | 34 kg |
| Enclosure: | Housing made of waterproof plywood, ball-throwing proof speaker grille, shock-resistant polyurethane (PU) coating |
|
| Colour: | PU-coated, black | |

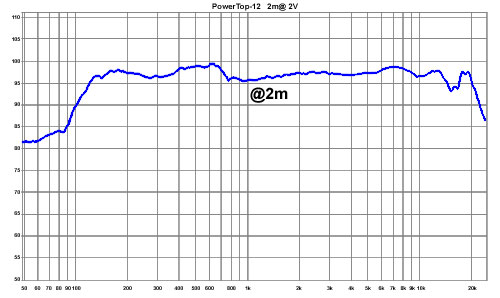

| TEST CHART | ||
 |
||
All information without guarantee. Subject to technical changes.
