UP Remote Control Panel

UP Remote Control Panel

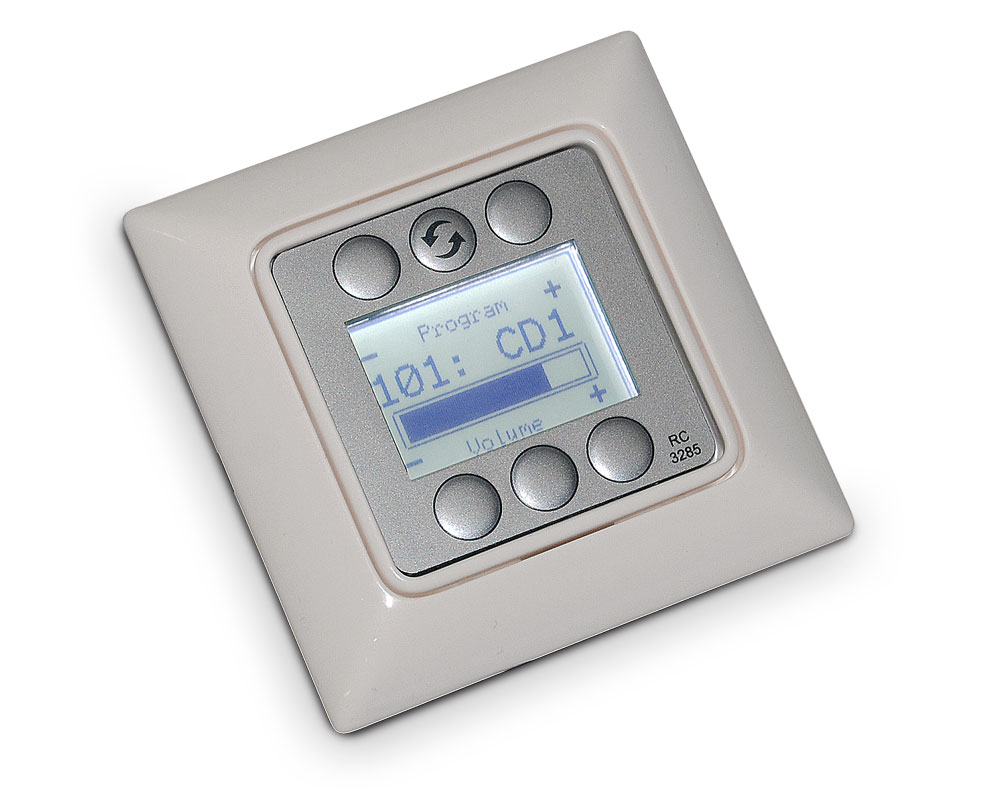

The ITECNET UP Remote Control Panel covers several areas of application. Main focus in the development process was the easy to use and clearly arranged grafical user interface, which covers many features. Depending on the application you want to use the panel, you are able to connect to a Spider44 or Multi/PowerMix.

In combination with a Spider44, you have the ability to control the volume and the network channel of an output zone.

As Interface into the ITECNET, a RS485 bussystem is used, which is connected to a Spider44. Each Spider is able to control up to 16 Modules. Configuration is done with the Software NETDESIGN.

If you connect the Panel with a Multi/PowerMix, you are able to control the Volume, switch between presets and route an audio input signal (CD player, tuner)to an audio output.

Features Spider44
Volume control
Program selection
Volume + program control on a
common display
Equalizer
Digital IO control
Display watch / systeminfo

Features Multi-/PowerMix
RVAL control
Choose a custom name for each RVAL and display it on the device
Switch between presets
Name each preset
Choose between different audio input signals for a single audio output
Mute an audio output

Specifications

UP Remote Control Panel
POWER SUPPLY from 10 to 24 V (Spider44)
  16 modules per Bus via RS485, 1 module per RS232
  Wiring with CAT5 is possible (Signals: VC+, GND, Data+, Data-)
OPERATING TEMPERATURE -5°C - +40°C

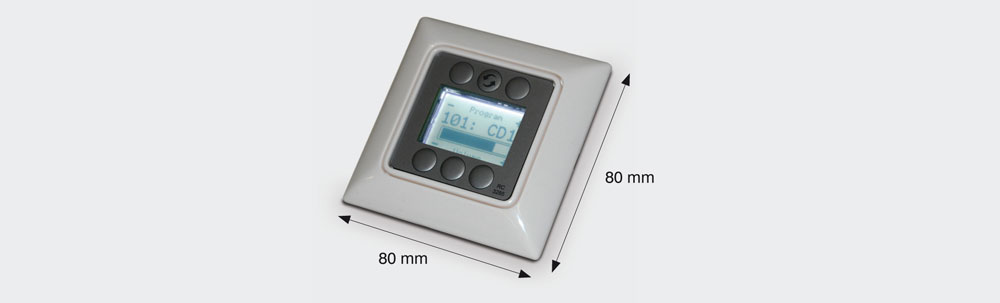

DIMENSIONS 80 x 80 x 47 mm ( Installation depth= 37 mm)


AllAll information without guarantee. Subject to technical changes.
