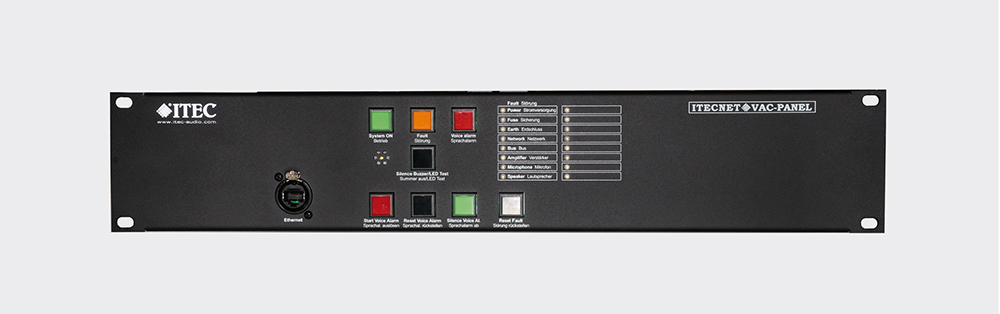

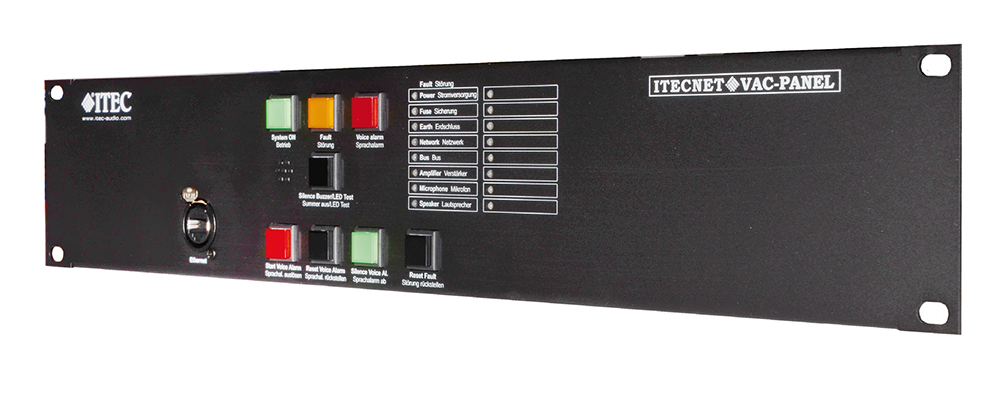

VAC-Panel/02

• Display panel according to EN 54-16 for visual and acoustic status message
• Color coded optical indication of operation, malfunction and voice alarm
• Fault with acoustic alarm
• Key for acknowledging the acoustic warning
• Power supply with 24 VDC

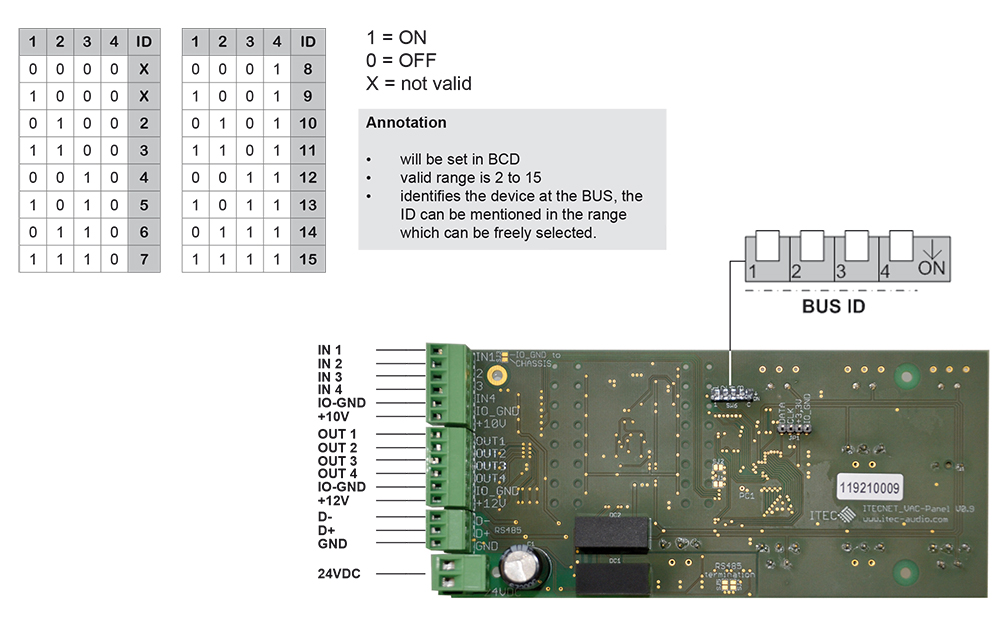

• Inputs and outputs galvanically isolated from the supply voltage (DC / DC converter on board)
• All connections on plug-in terminal blocks
• Model: 19“, 2 RU
• Button for manually triggering a voice alarm (red)
• Display LED voice alarm (red)
• Button for manually resetting a voice alarm (black)
• Mute voice alert button (green)
• LED mute indicator (green)
• Button for acknowledging a fault message (black)
• Prepared cutout for optional service socket

Construction	19“ / 2 RU front panel with PCB
Power supply	24 VDC via plug-in terminal block
Input	max. 24 VDC
Output	Open collector, max. 200 mA, total max. 250 mA on internal 12 V supply
Current	max. 50 mA
Operating temperature	-5° C - +40° C
Dimensions	482 mm x 88 mm x 40 mm (W x H x D), 19“ / 2 RU
Weight	0.3 kg

 All information without guarantee. Subject to technical changes.
