• Display panel according to EN 54-16 for visual and acoustic status message
  • Color coded optical indication of operation, malfunction and voice alarm
  • Fault with acoustic alarm
  • Key for acknowledging the acoustic warning
  • Power supply with 24 VDC
  • Inputs and outputs galvanically isolated from the supply voltage (DC / DC converter on board)
  • All connections on plug-in terminal blocks
  • Model: 19“, 2 RU
  • Button for manually triggering a voice alarm (red)
  • Display LED voice alarm (red)
  • Button for manually resetting a voice alarm (black)
  • Mute voice alert button (green)
  • LED mute indicator (green)
  • Button for acknowledging a fault message (black)
  • Prepared cutout for optional service socket

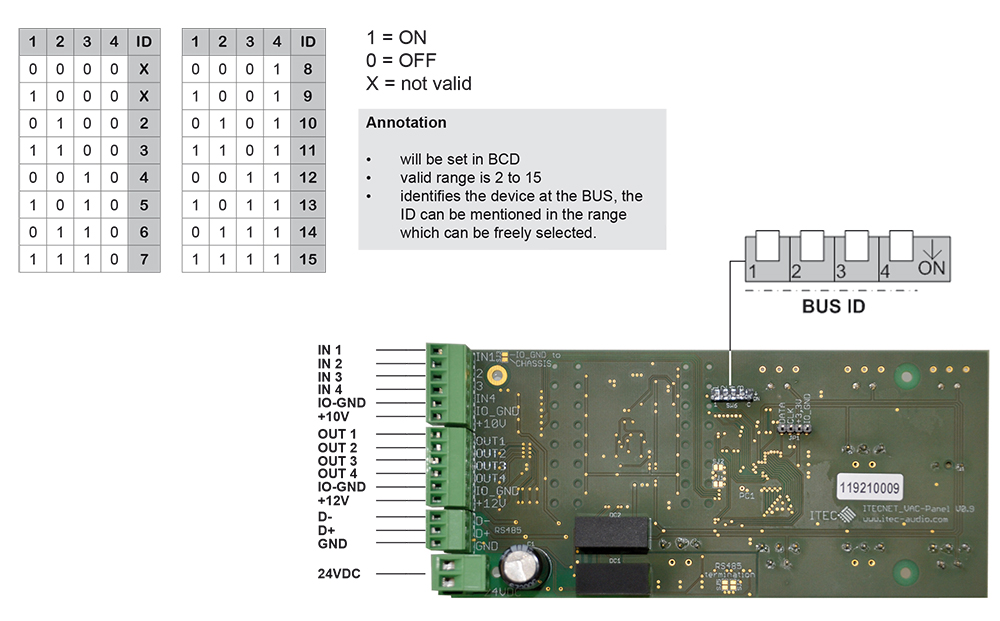

SIL switch - Device ID

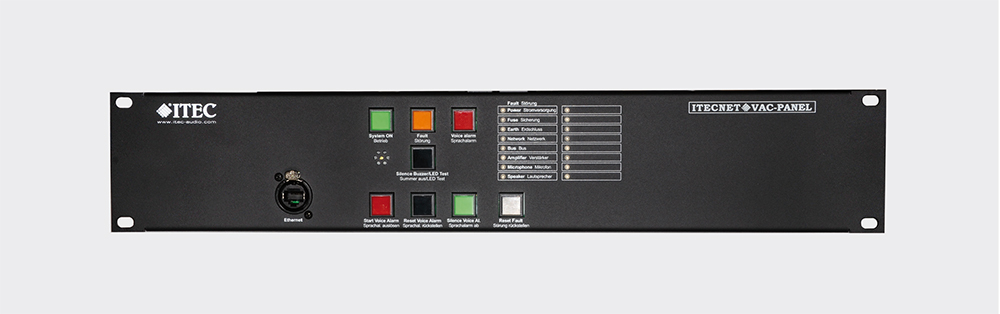

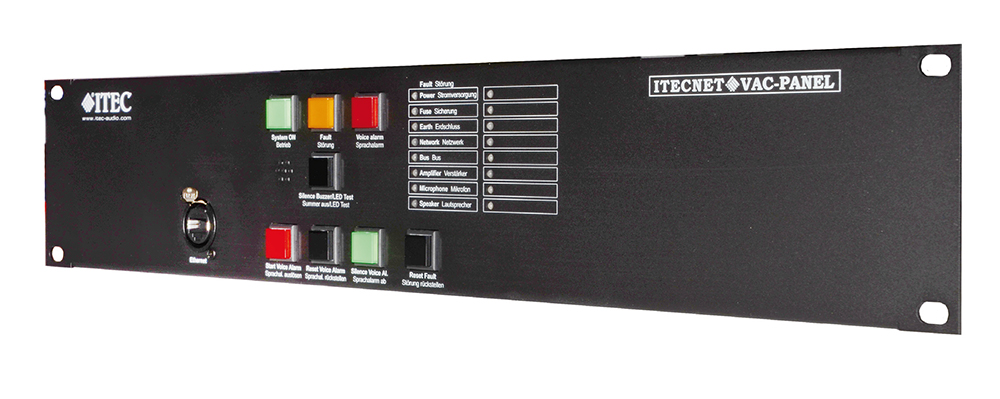

Construction 19“ / 2 RU front panel with PCB
Power supply 24 VDC via plug-in terminal block
Input max. 24 VDC
Output Open collector, max. 200 mA, total max. 250 mA on internal 12 V supply
Current max. 50 mA
Operating temperature -5° C - +40° C
Dimensions 482 mm x 88 mm x 40 mm (W x H x D), 19“ / 2 RU
Weight 0.3 kg

 All information without guarantee. Subject to technical changes.
