AVC-MIC/02 (Automatic Volume Control-Microphone)

The ITEC AVC-MIC/02 is a measurement microphone specially designed for the use with ITEC-Net Spider44, Spider04 and Spiderline16 for automatic volume control of background music and announcements by taking into account the predominant ambient noise level.







  • Electret condenser microphone with IP65 protective housing
  • Supply via phantom power (no separate power supply needed)
  • Balanced output
  • Mic level or line level (particularly immune to interference)
  • Easy assembly and installation

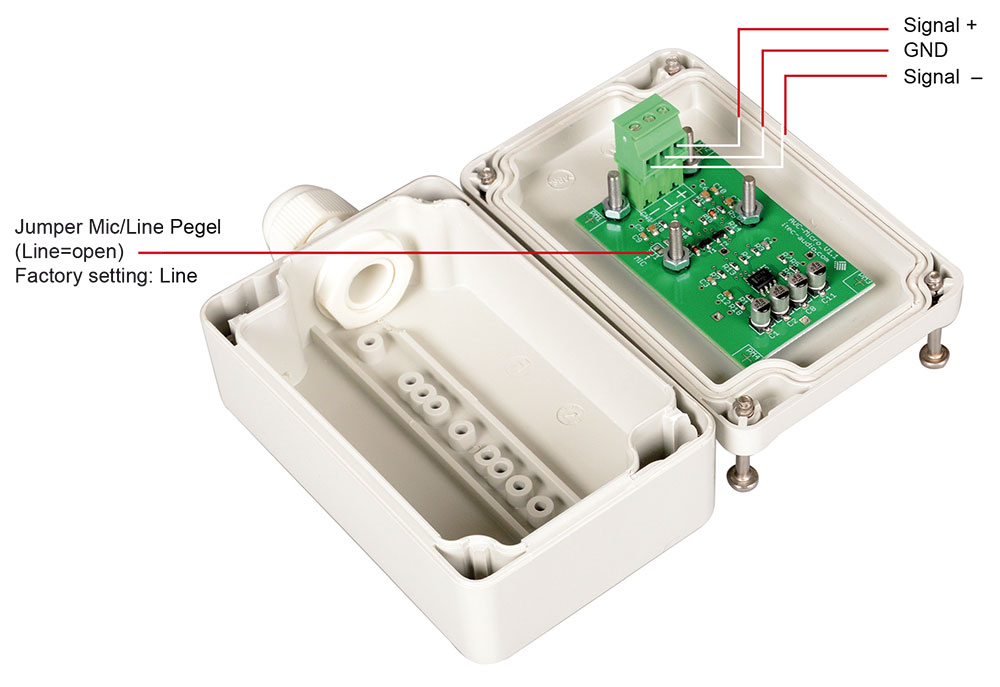

  • Connection to 3-pin plug-in terminal

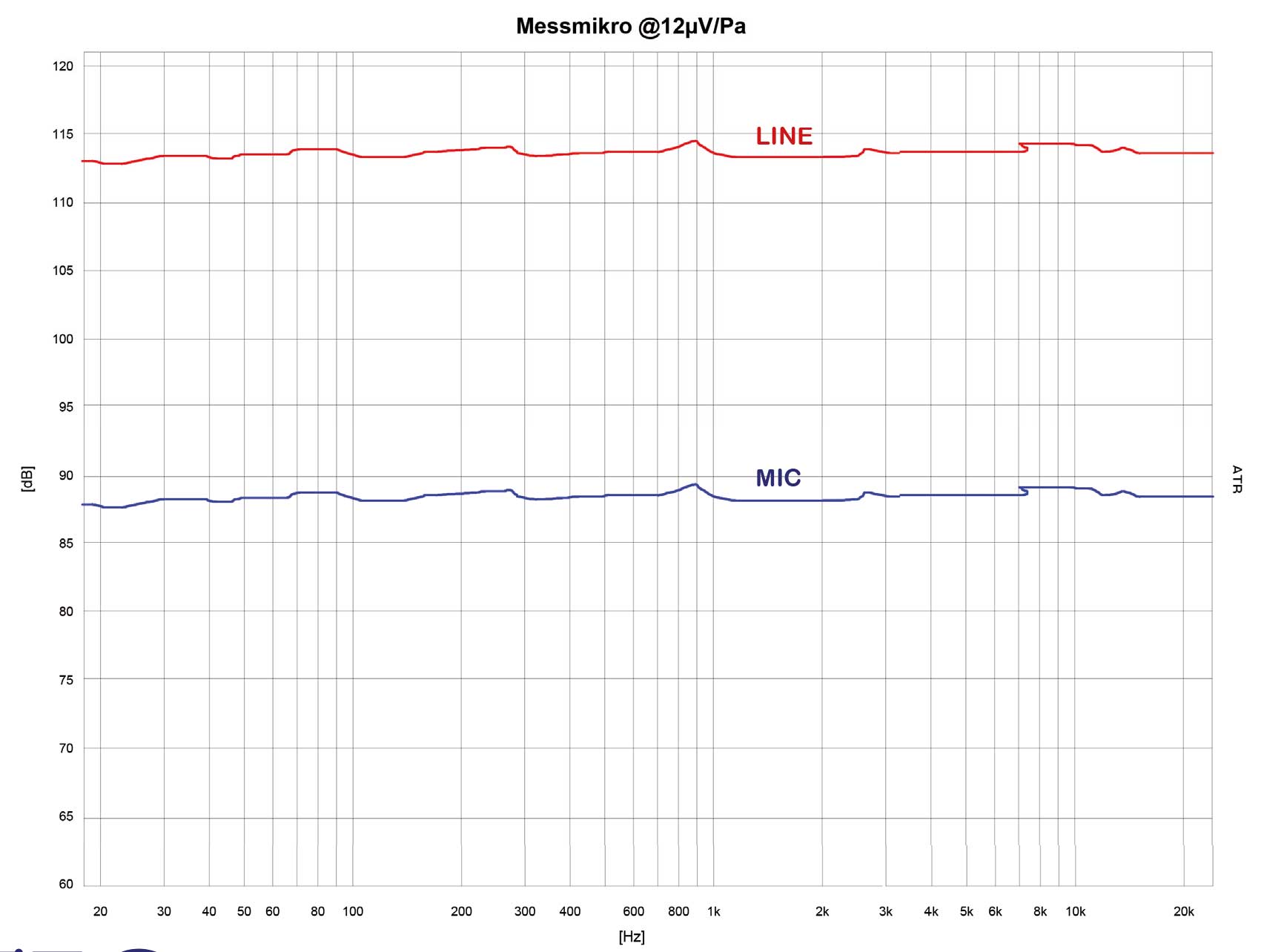

  • Linear frequency response of 20 Hz - 20 kHz

AVC-Mic

Specifications

AVC-Mic
TYPE electret condenser microphone
POWER SUPPLY 12VDC phantom power (up to 48 V possible)
CURRENT ca. 2mA @12V
OUTPUT LEVEL (MIC) 12 µV/Pa
OUTPUT LEVEL (LINE) + 25 dB
CASE MATERIAL/COLOR ABS / light gray, similar to RAL7035
PROTECTION IP54
OPERATING TEMPERATURE -5°C - +40°C

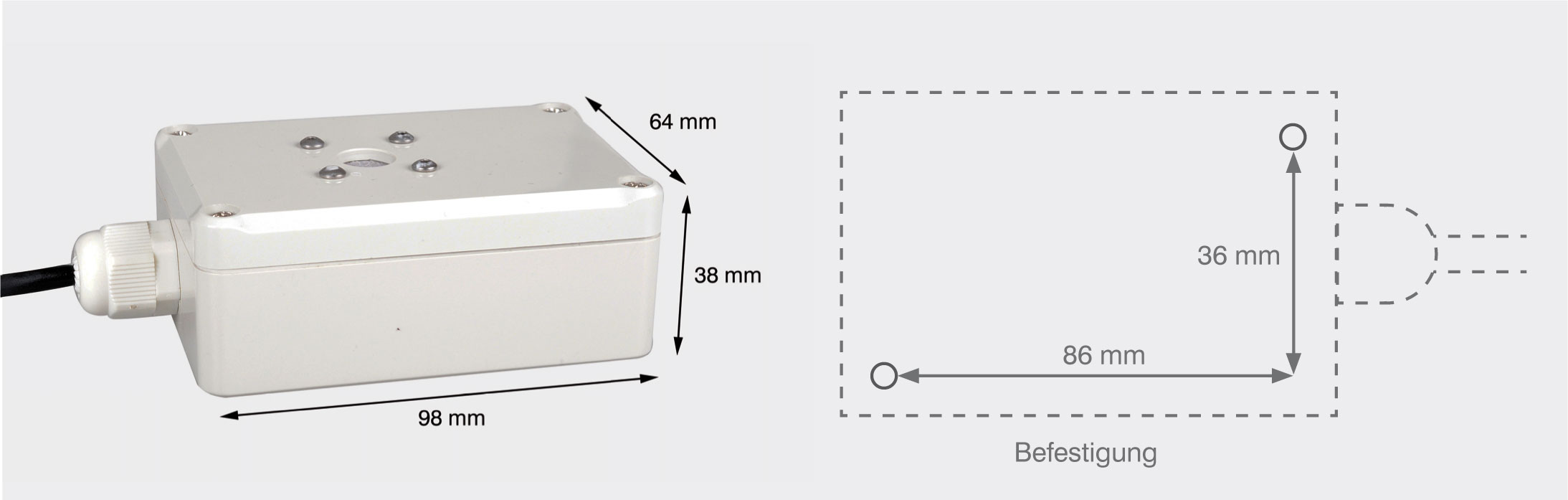

DIMENSIONS 98 x 64 x 38 mm (length x width x depth)
WEIGHT ca. 140 g
CONDUIT  PG 9 cable joint (cable OD 2.5 - 8mm)
SENSIBILITY 28 mV/Pa
MAXIMUM SOUND PRESSURE LEVEL 134 dB
AVC Mic


All information without guarantee. Subject to technical changes.
